31
Line 1 Pulse = 2 nsec VOP
V Gain = 72 x
VOP = 83%
L1 =55 dBRL
Batt
P r e s s
*
5 1
ft
2
1
Line 1 Pulse = 25 nsec VOP
V Gain = 16 x
VOP = 83%
L1 =15 dBRL
Batt
P r e s s
*
2 0 3 ft
6 2 m
2
1

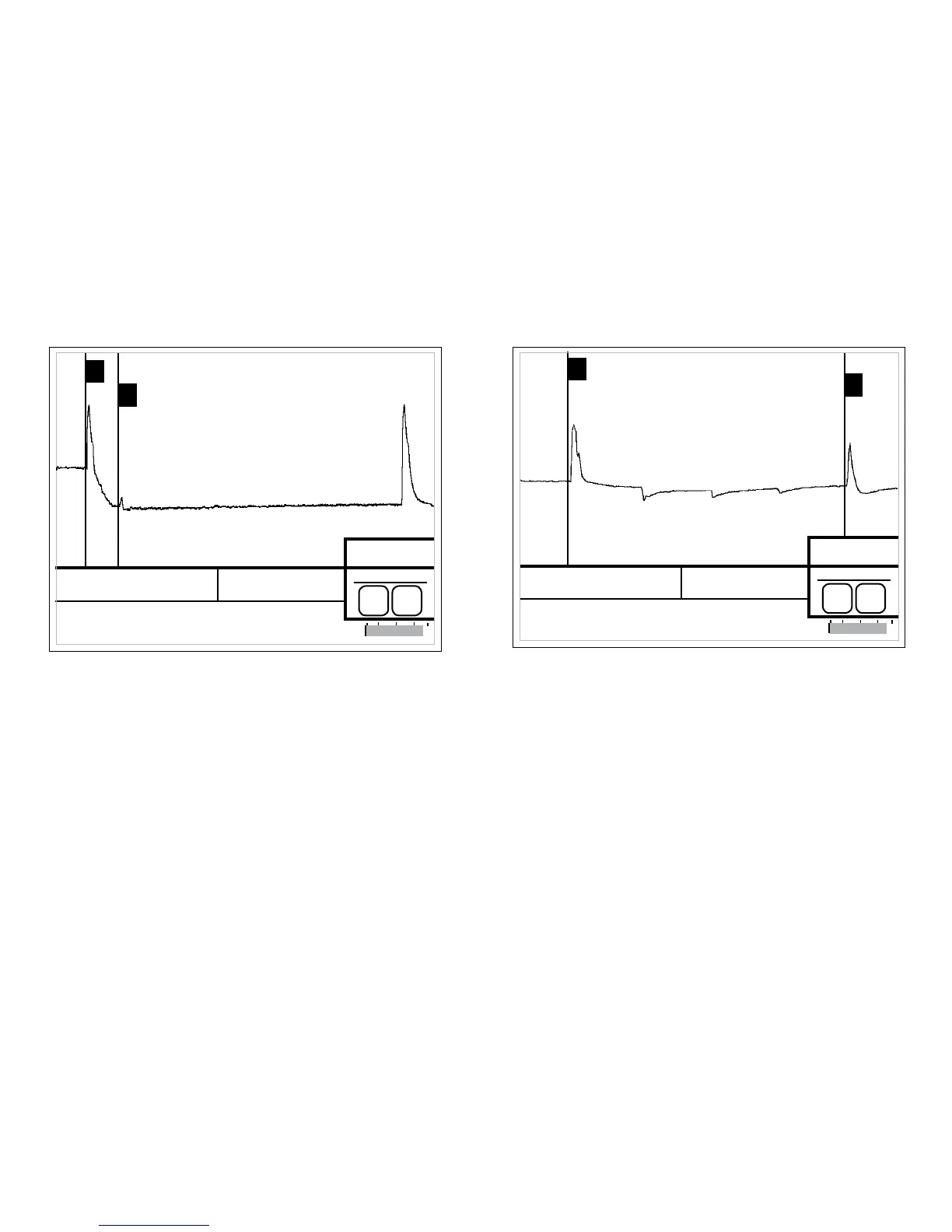

Two sections of cable with a splice shown at the 2nd
cursor. The amount of reflection caused by the splice
is directly proportional to the quality of the splice. A
good splice = small reflection; a bad splice = large
reflection.
Coaxial taps (both indoor and outdoor) will cause
reflections along the waveform. The quality and value
of each tap determines the amount of reflection.
