A mix puts one input into one channel. The inputs are configured in the Inputs
page, which defines any input type.
The mixing control page can also use other channels as the source of the current
channel, and output from the current channel after re-mixing. It can also mix one or
more channels to another or multiple channel outputs, which can combine very
powerful complex functions.
All inputs range from -100% to + 100%. Gimbals, knobs, sliders, channels, global
variables, and coach input.
If you want the servo of the No. 2 plug connected to the receiver to be controlled
by lifting (ELE), you only need to create a mixing entry on CH2 and use the Ele input as
the source of operation.
Each channel can have many lines, and you can choose the operation between
each line. Long press the ENT key and select Insert Before / After to create a new line.
By default, all lines on the same channel are added together, and the next line can
choose to be superimposed or multiplied with the channel value of the previous line,
and replaced completely.

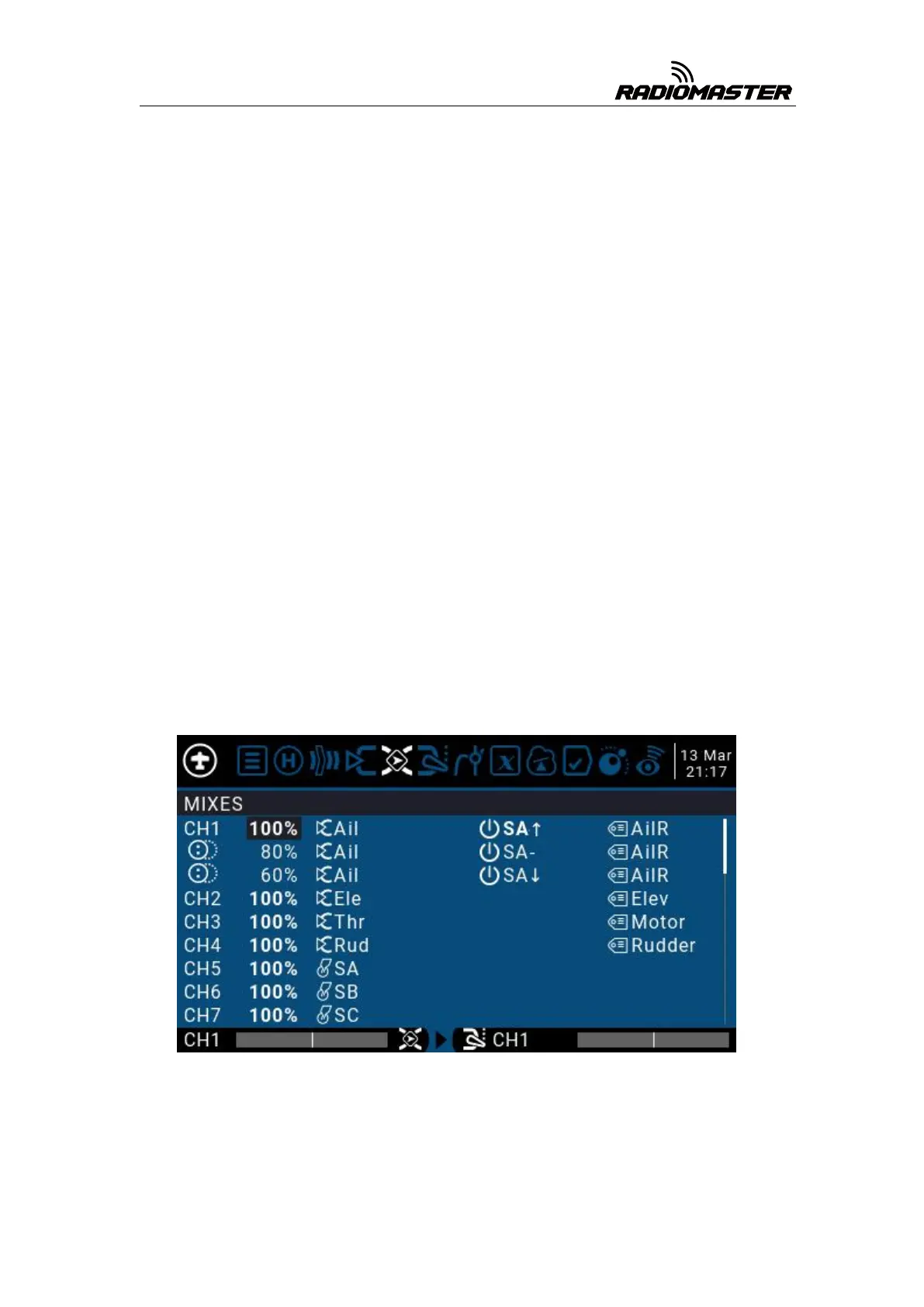

Please note that the currently active row of settings will be displayed in a bold
font, making it easy to recognize the item currently in use at a glance. The CH1 channel
shown in the figure is input by the Ail gimbal, and the three states of the SA switch are
used to switch three stroke amounts.
To edit a mixing control, use the scroll wheel to select the mixing control item up
and down, and press and hold the ENT key to enter the editing submenu. Select Edit
and press the ENT key momentarily.
