Radionics D2212 User Manual

D2212 Installation Manual
Page 15
© 1996 Radionics
74-07361-000-C 11/11/96
AC Power On AC Power Off In Alarm
Normal Current Minimum Current Maximum Current
Model Number Each Each Each
Number Used Unit Total Unit Total Unit Total
D2212 1 125 _____ 125 _____ 190 _____
D202A ____ 45 _____ 45 _____ 125 _____
D220A ____ 30 _____ 30 _____ 125 _____
D222 ____ 30 _____ 30 _____ 140 _____
D223 ____ 30 _____ 30 _____ 140 _____
D208RF ____ 50 _____ 50 _____ 50 _____
D216RF ____ 50 _____ 50 _____ 50 _____
______ ____ ____ _____ ____ _____ ____ _____
______ ____ ____ _____ ____ _____ ____ _____
Total A
1
= _____ Total B = _____ Total C
2
= _____
1
If Total A exceeds 1 A (140mA for fire and combined fire/burglary systems), a stand-alone power supply is required to
provide additional current.
2
If Total C exceeds 860 mA for fire systems, a stand-alone power supply is required to provide additional current.

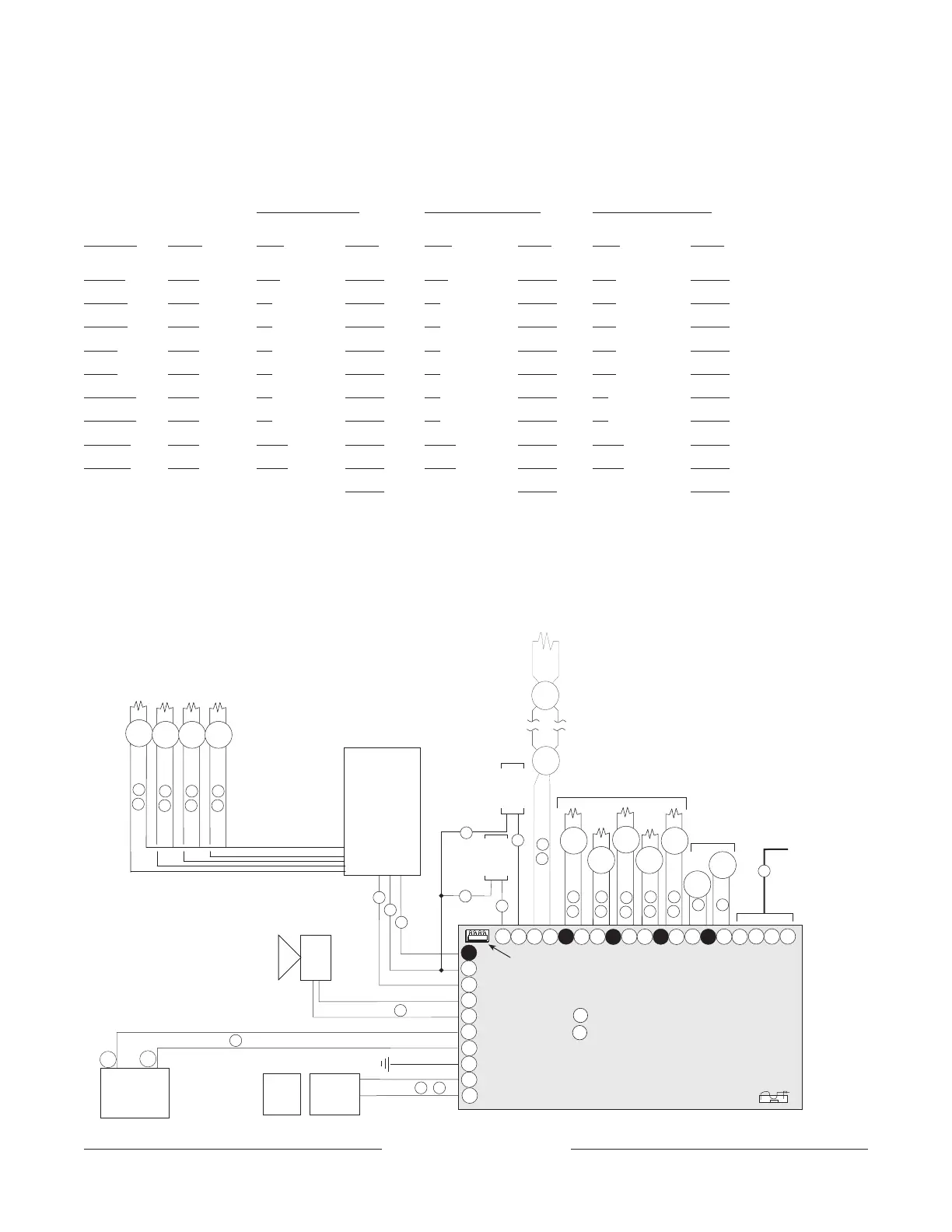

Current Rating Chart for Standby Battery Calculations
All currents are in milliamperes (1 ampere=1000 milliamperes).
System Wiring Diagram, Issue A
s
s
P
P
P
D164 Phone
Cord to RJ31X
for Phone Line
Listed Audible
Signaling Device
Rated At 10.2 TO 13.9
VDC (Do NOT Use
Vibrating Type Horns)
P
P
P
P
D133/
D134
Relay
P
P
Supervised with 1k Ω
EOL Resistor.
Typical Initiating
Devices are Door
Contacts NO/NC,
Floor Mats, Motion
Sensors, Glass Break
Detectors, etc.
NOT
Supervised,
Normally
Closed.
Typical
Initiating
Devices are
Door Contacts,
Floor Mats,
Motion
Sensors,
Tamper
Switches, etc.
All devices
open on alarm.
P
S
Supervised with 2k Ω
EOL Resistor.
P/N 15-03130-010
P
S
P
S
P
S
P
S
P
S
P P
KEYPADS,
EXPANDERS
AND RF
RECEIVERS.
INSTALL UP
TO EIGHT
DEVICES ON
THE PANEL.*
1
2
3
4
5
6
7
8
9
10
11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29
P
S
= POWER LIMITED
= SUPERVISED
P
S
P
S
P
S
P
S
ABCD
Supervised with 1k Ω EOL Resistor.
Typical Initiating Devices are Door Contacts
NO/NC, Floor Mats, Motion Sensors, Glass Break
Detectors, etc.
Up To Four Point
Expansion Devices
Can Be Connected
Standby Switch
Programmer
Connector
* Depending on the panel's available auxiliary power.
D133/
D134
Relay
PS
D2212
S
-
+
D126
Battery
12V 7Ah
16.5 VAC
40 VA
60 HZ
Transformer
D1640
D8004
Transformer
Enclosure
