D2212 Installation Manual
Page 4
© 1996 Radionics
74-07361-000-C 11/11/96
Mount the Enclosure and Board
The D2203 enclosure is shown in Figure 1. Mount the
enclosure in the desired location. Then mount the D2212
board in the enclosure using the plastic stand-offs, again,
see Figure 1.
Run the Premises Wiring
Run the necessary wiring throughout the premises and pull
the wires into the enclosure. Do not make any connections
yet.
Wire Length
Wire length for Points is limited only by the resistance on the
loop and potential EMI (Electro-Magnetic Interference)
problems.
Wire resistance on the Point 1 sensor loop must be less than
50Ω. Measure the wire resistance before installing smoke
detectors. Short the end-of-line resistor before metering the
wire.
Resistance on the sensor loops for Points 2 to 8 must be
less than 100Ω with the end-of-line resistor shorted and the
detection devices connected.
Maximum wire length for the transformer is 50 feet (18 AWG,
stranded).
Maximum wire length for all keypads and point expanders
combined is 500 feet (22 AWG).
D223 Text Keypad
Each D223 includes the following.
•
D223 Text Keypad
•
Installation Sheet
(74-07490-000)
•
User's Reference Card
(71-04523-010)
•
Security System User's Guide
(71-07373-000)
•
Getting Started w/Your Security System
(71-07372-000)
•
Three-wire data cable assembly
(15-07032-000)
Battery
Order a D126 Battery (12 V 7.0Ah) to complete a basic
D2212 installation.
Enclosure Options
The D2212 is shipped in the D2203 enclosure. If you want to
mount the D2212 in one of the optional enclosures listed
below, order the D2212M and the enclosure of your choice.
• D8103 Universal Enclosure
• D8108A Attack Resistant Enclosure
• D8109 Fire Rated Enclosure
Listings and Approvals
UL Listings
Fire
• Underwriters Laboratories lists the D2212 Control/
Communicator as a Household Fire and Burglary
Warning System Control Unit for NFPA 72 (Chapter 2)
Household Fire Warning.
• CSFM Listing 7167-0801:143
Control Units (Household)
• UL 985 Household Fire Warning Systems
Burglary
• UL 1023 Household Burglary Alarm
• UL 365 Police Station Connect
• UL 609 Local Burglary Alarm
• UL 1076 Proprietary Burglary Alarm
• UL 1610 Central Station
Getting Started
Review this manual before you begin to determine hardware
and wiring requirements for the features you want to use.
Have the following handy as you read through the manual:
•
D2212 Program Record Sheet
(74-07387-000)
•
D2212 Program Entry Guide
(74-07386-000)
•
Security System User's Guide

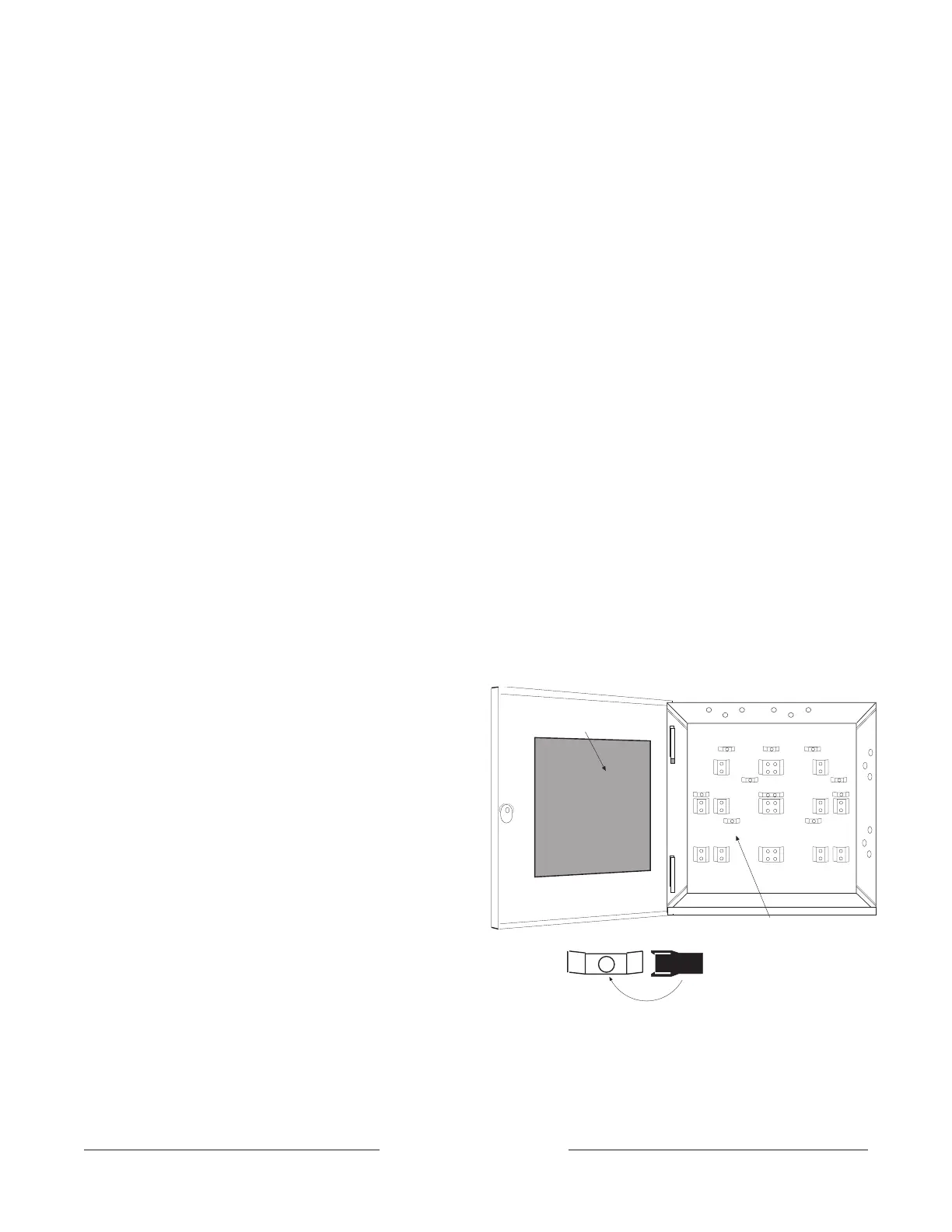

Figure 1: D2203 Universal Enclosure
Installation Label
Snap plastic stand-offs onto these five
mounting locations.
13
4
5
Snap plastic stand-offs over the
center of the mounting post.
2
