RADLEY HH0401 - Adjusting the Handle

12

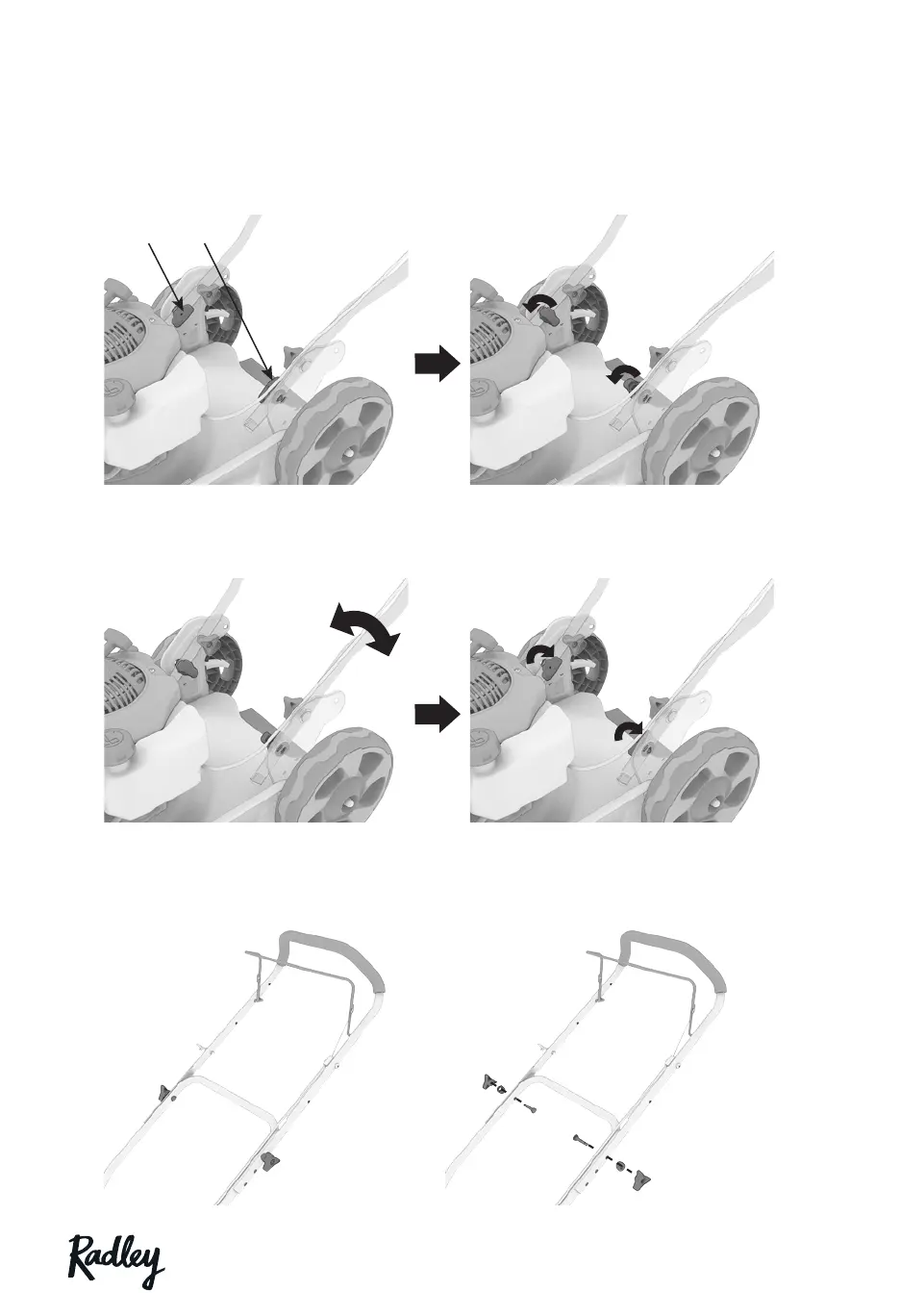

3.3 ADJUSTING THE HANDLE
HH0401 shown, other models may appear different.
Adjust Handle Height
1. Turn the spring knob 90-degrees either direction to unlock.
2. Choose a higher or lower bracket hole to set your handle height preference.
Then turn the spring knob back 90-degrees until the silver bolt goes
through that bracket hole.
Adjust Handle Length
1. Remove the hand knobs and the bolts on each side.
Spring Knob
Spring Knob
