To connect the valve wires:

1. Feed each valve wire up through the large hole on the bottom of the controller cabi-

net.

2. Strip 1/2” (1.3 cm) from the end of the valve wire. Insert the wire into the appropriate

station terminal. If the wire does not enter securely into the hole, press down on the

orange lever as you insert the wire.

Note: Each station has two holes (one above the other) because each station is capa-

ble of operating two valves.

3.Repeat for all used stations.

4.Attach the valve common wire to one of the two common terminals in the same way.

5. If your system includes a master valve or a 24 volt pump start relay, connect the

wire from that device to the MV (master valve) terminal on the controller the same

way you connected the other wires.

Note: MV2 (master valve 2) is enabled when any station operates. MV1 (master valve

Personal Wiring Notes:

_______________________________________________________________________________________________________

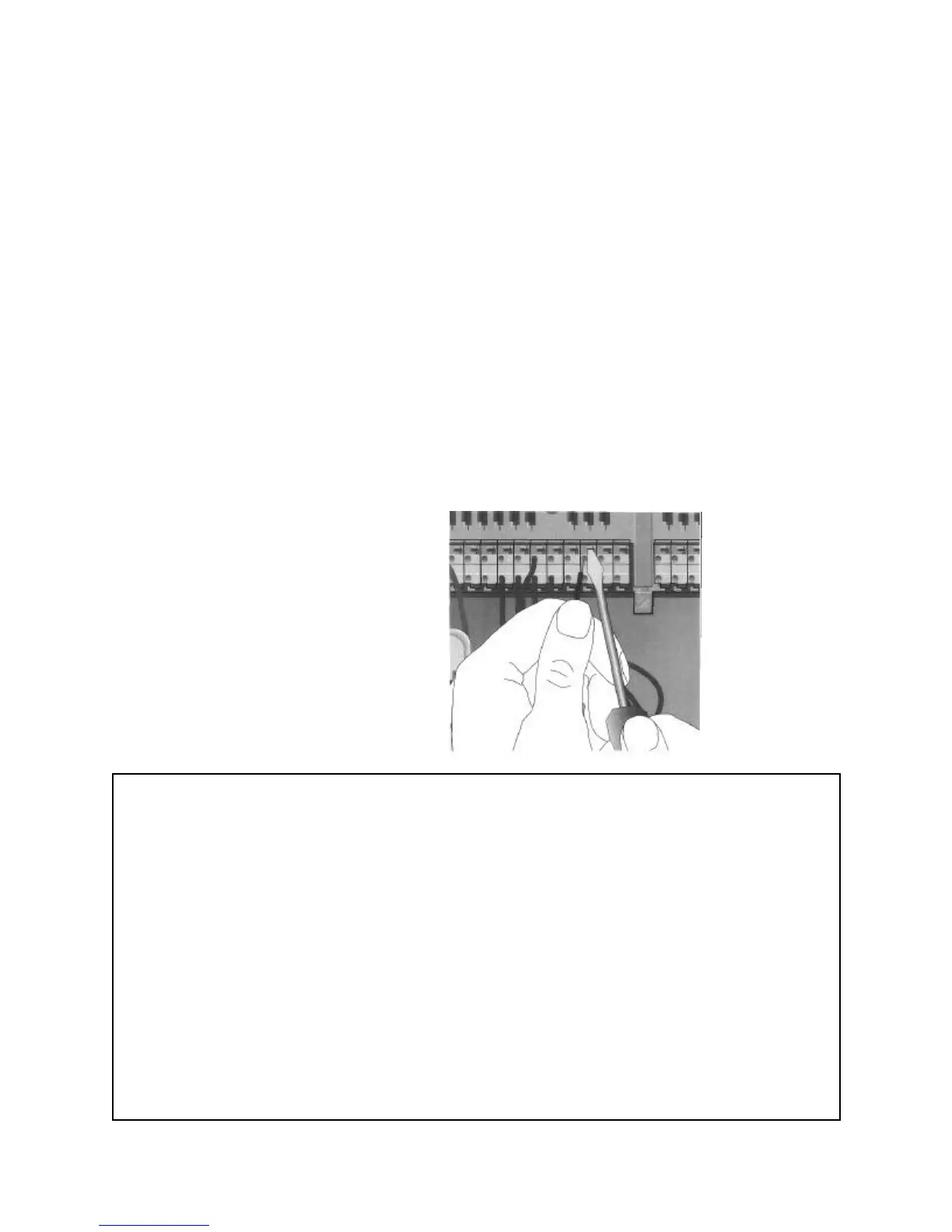

Insertion of the Valve Wire:

Rain Bird ESP-MC Installation And Operating Instructions
