SECTION 2 - GUIDE RAILS AND CROSS BRACES.
Page 2-8
Rev 1A – Oct. 2003
2.9
Install and tighten the upper horizontal supports and wall
mounting bracket (FIG. 10).

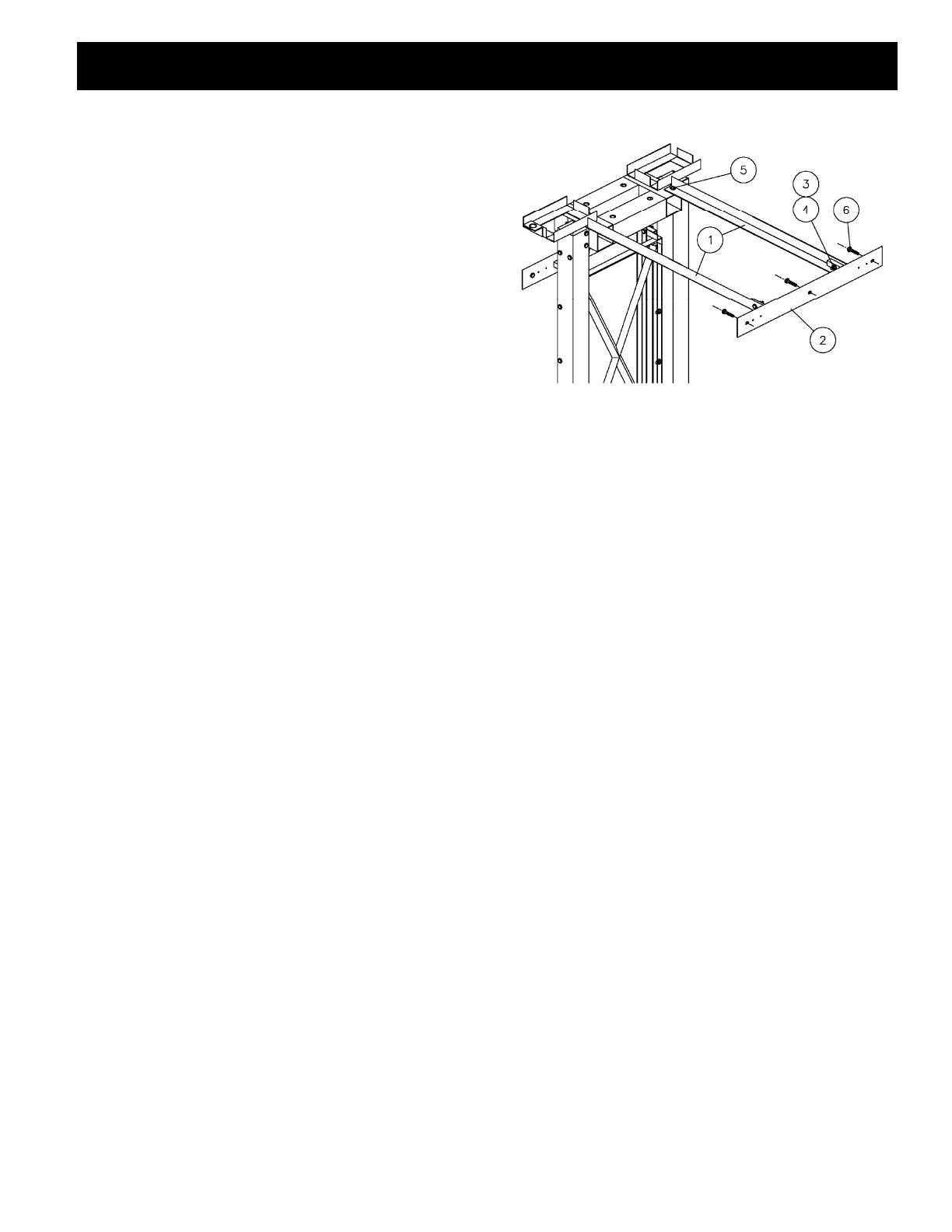

Figure 10. Installing the upper horizontal supports
looking from in front of the guide rails.
NOTE:
Refer to shop drawings for each job for details of this
item.
MATERIAL LIST PART #
1. Upper horizontal supports *NOTE
2. Wall mounting bracket FFBUG008
3. 7/16 N.C. x 1 3/4 bolt PGAGF042
4. 7/16 N.C. nylon lock nut PGAGF030
5. 7/16 N.C. x 1 bolt PGAGF006
6. Lag bolt 1/4 x 2 1/2 long (wood wall),
or concrete block lag bolt 1/4 x 2 1/2
(concrete block wall).
PGAGF082
or
PGAGF083
To Next Page
