SECTION 4 - CARRIAGE.
Rev B – June 2013
Page 4-14
4.15
Remove the counter weight
hangers and bottom counter
weight plate. (FIG. 12).
4.16
Install the four bolts that connect the lower two wall mounting brackets to the counter weight guides (FIG. 1). These
bolts were removed in step 4.1.
4.17
Tighten the 5/16 x 1 Hex bolts on the counterweight side channels and the counterweight lower & upper keeper plates
(see section 3.7 and 3.9) by manually cranking the weights to a position where the bolts and screws can be accessed.

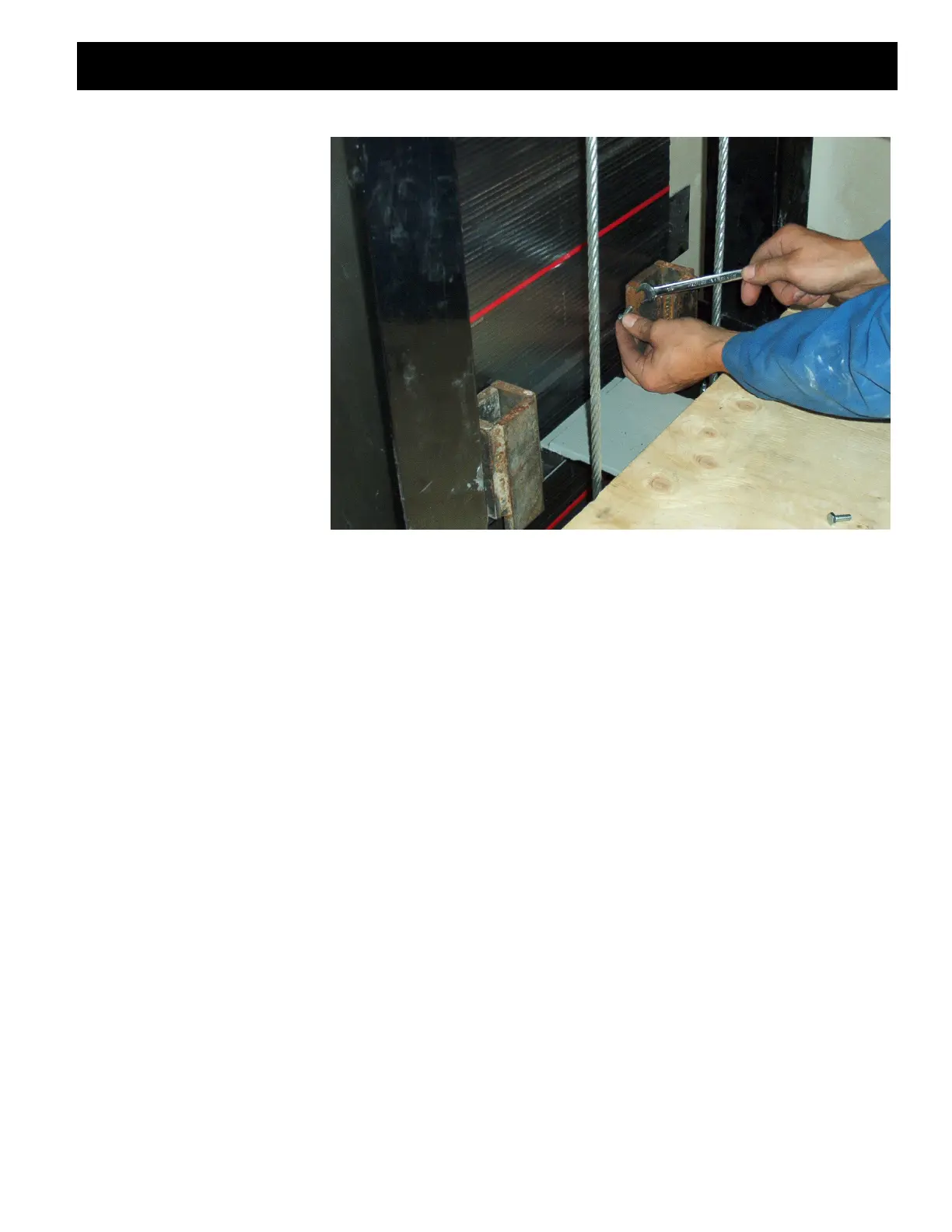

Figure 12. Removing the counterweight hangars.
NOTE:
Parts may not be exactly as shown.
