SECTION 2 - GUIDE RAILS AND CROSS BRACES.
Page 2-2
Rev 1A – Oct. 2003
2.2
Assemble lower guide rails, guide rail base frame, lower
cross brace, lower counter weight guides, and 2 wall
mounting brackets (FIG. 2). Leave all bolts loose.
NOTE: Do not use washers for the bolt heads on the
outside of the guide rails.

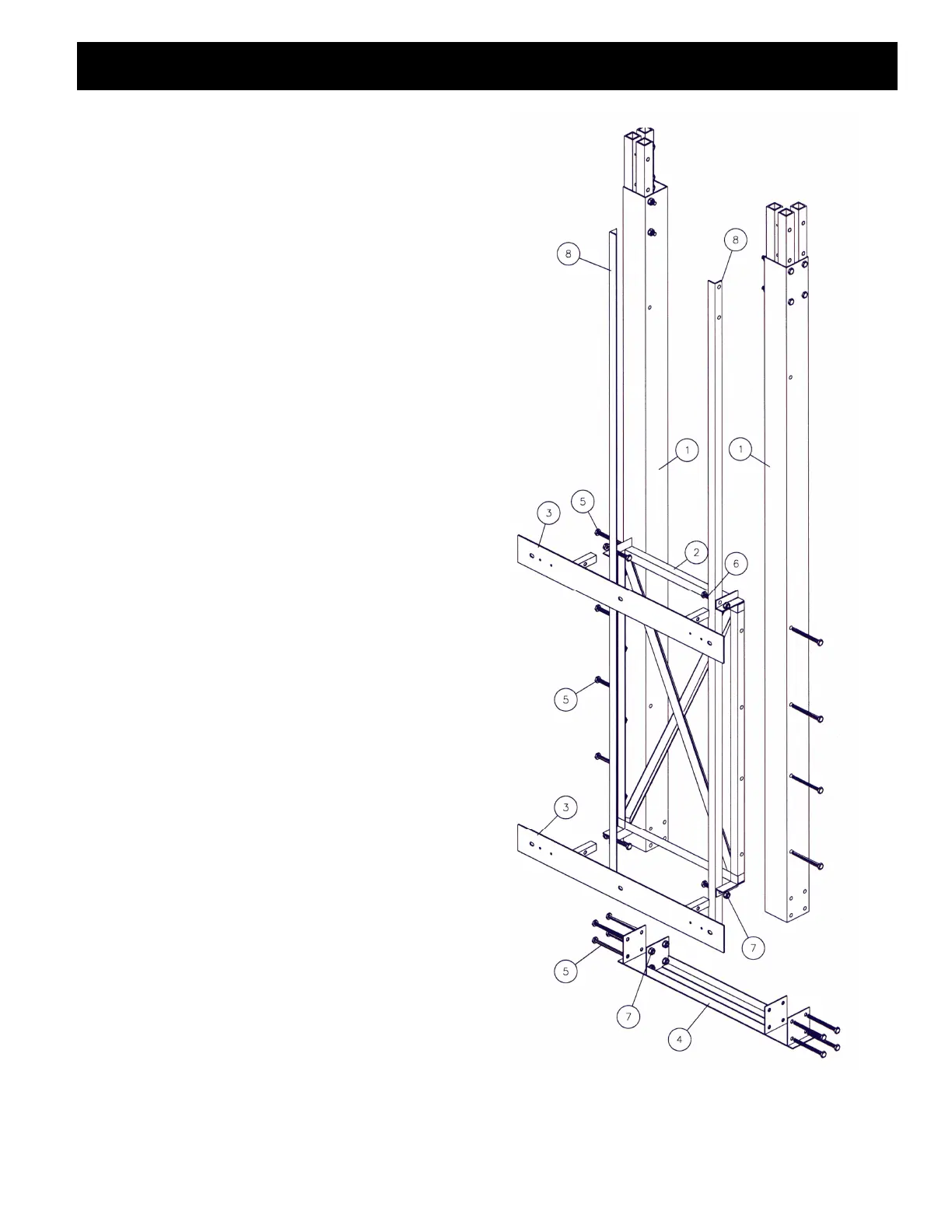

Figure 2. Lower guide rail assembly, looking from
behind the guide rails.
MATERIAL LIST PART #
1. Lower guide rails *NOTE
2. Crossbrace support (4 hole) FFBUG003
3. Wall mounting bracket FFBUG008
4. Lower guide rail base frame FFBUG001
5. 7/16 N.C. x 5 bolt PGAGF014
6. 7/16 N.C. x 1 3/4 bolt PGAGF042
7. 7/16 N.C. nylon lock nut PGAGF030
8. Lower counter weight guides *NOTE
NOTE:
Refer to the shop drawings for each job for details on
these items.
