Ramsey Electronics DCY200 - Winch Parts List

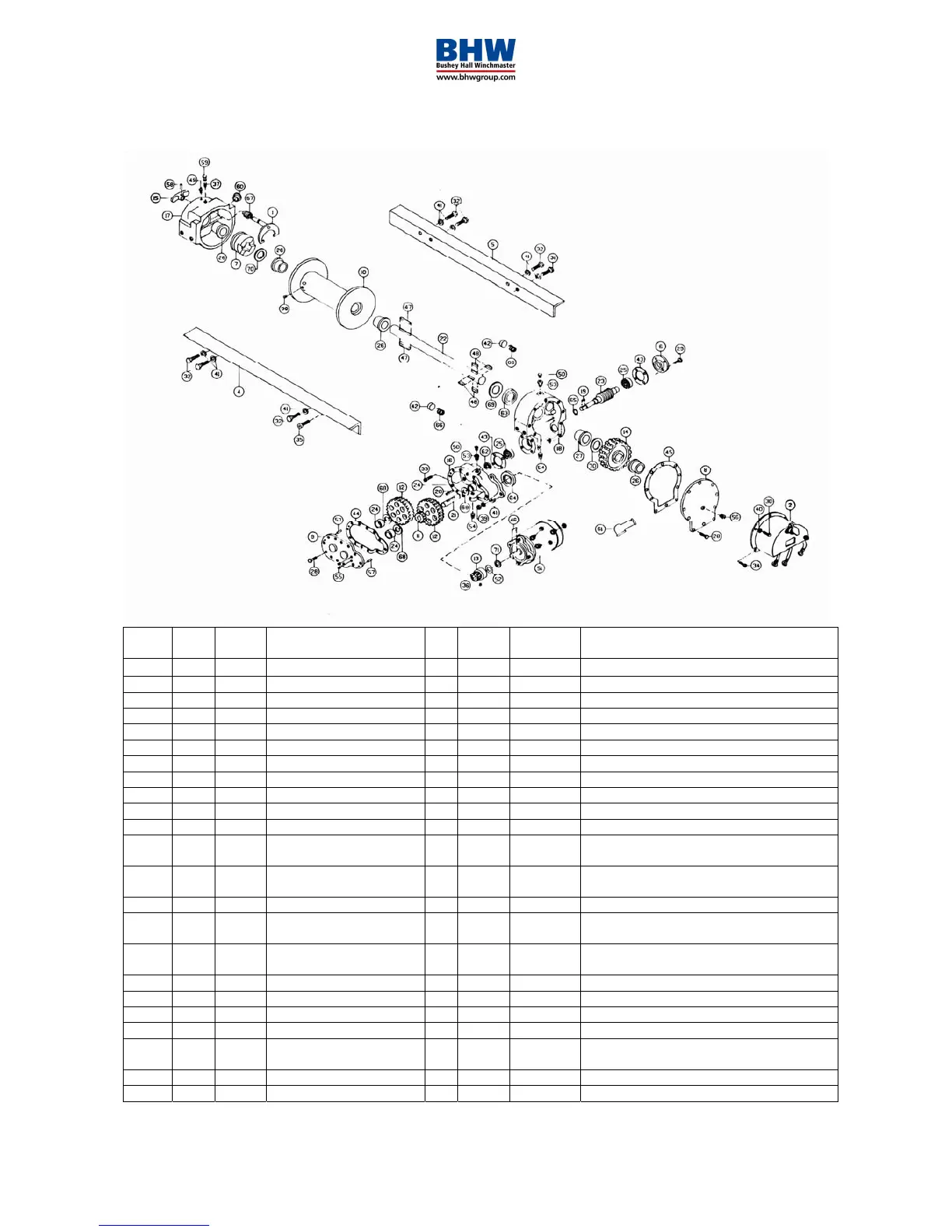

WINCH PARTS LIST
Item
No.
Qty.
Req'd
Part
No.
Description Item
No.
Qty.
Req'd
Part
No.
Description
1 1 276028 Shifter Assembly* 19 1 342023 Key-Square
2 1 278027 Solenoid Assembly-12V 20 1 342033 Key-Square
278028 Solenoid Assemb!y-24V 21 1 356901 Shaft-Spur
3 1 282001 Switch Assembly 22 1 357479 Shaft-Drum-Std
4 1 302808
A
ngle (std) 1 357481 Shaft-Drum-Mod Y
1 302811
A
ngle (mod Y) 23 1 368001 Worm-R.H. – 60:1
5 1 302809
A
ngle (std) 1 368019 Worm-R.H. – 46:1
1 302810
A
ngle (mod Y) 24 3 402001 Bearing Needle
6 1 316083 Cap- Bearing 25 2 402002 Bearing Ball
7 1 324160 Jaw Clutch 26 4 412003 Bushing
8 1 328134 Cover-Worm Gear Hsg 27 1 412045 Bushing
9 1 328106 Cover-Spur Gear Hsg 28 22 414038 Capscrew 1/4 -20NC x 3/4 LG Hex HD z/p
GR5.
10 1 332007 Drum –Mod Y 29 4 414045 Capscrew 1/4 -20NC x 7/8 LG Hex HD
GR5.
1 332105 Drum-Std 30 3 414059 Capscrew 1/4 -20NC x 1 LG Hex HD z/p
11 1 334001 Idler Gear 31 1 414279 Capscrew 3/8 -16NC x 3/4 LG Hex HD
GR5.
12 2 334003 Gear 32 6 414282 Capscrew 3/8 -16NC x 1-1/4 LG Hex HD
z/p GR5.
13 1 334129 Pinion 33 4 414845 Capscrew 1/4 -20NC x 1 LG Soc Hd Nyloc
14 1 334161 Gear R.H. –60:1 34 2 414856 Capscrew 1/4 -20NC x 3/4 LG Soc Hd z/p
1 334163 Gear R.H. – 46:1 35 1 414912 Capscrew 3/8 -16NC x 5/8 LG Soc Hd
15 1 336010 Handle 36 1 416029 Setscrew 1/4 -20NC x 5/16 LG Soc Hd
16 1 338203 Housing-Spur Gear 37 1 416030 Setscrew 1/4 -20NC x 3/8 LG Soc Hd (Full
Dog Point)
17 1 338208 Housing-Clutch 38 1 416059 Setscrew 1/4 -20NC x 3/8 LG Soc Hd
18 1 338273 Housing-Gear 39 3 418040 Nut 3/8 – 2NF Hex Reg z/p
18
