TEST PROCEDURE FOR MOTOR
The Ramsey Winch motor is a 4 pole, 4
coil wound 12 volt or 24 volt DC motor.
The 4 pole, 4-coil feature provides high
torque at low speeds
To test the motor to determine if it is
functioning correctly, firstly securely fasten
the motor to a bench or work surface so it
will not jump or move around during
test procedure (the starting torque of
motor is high).

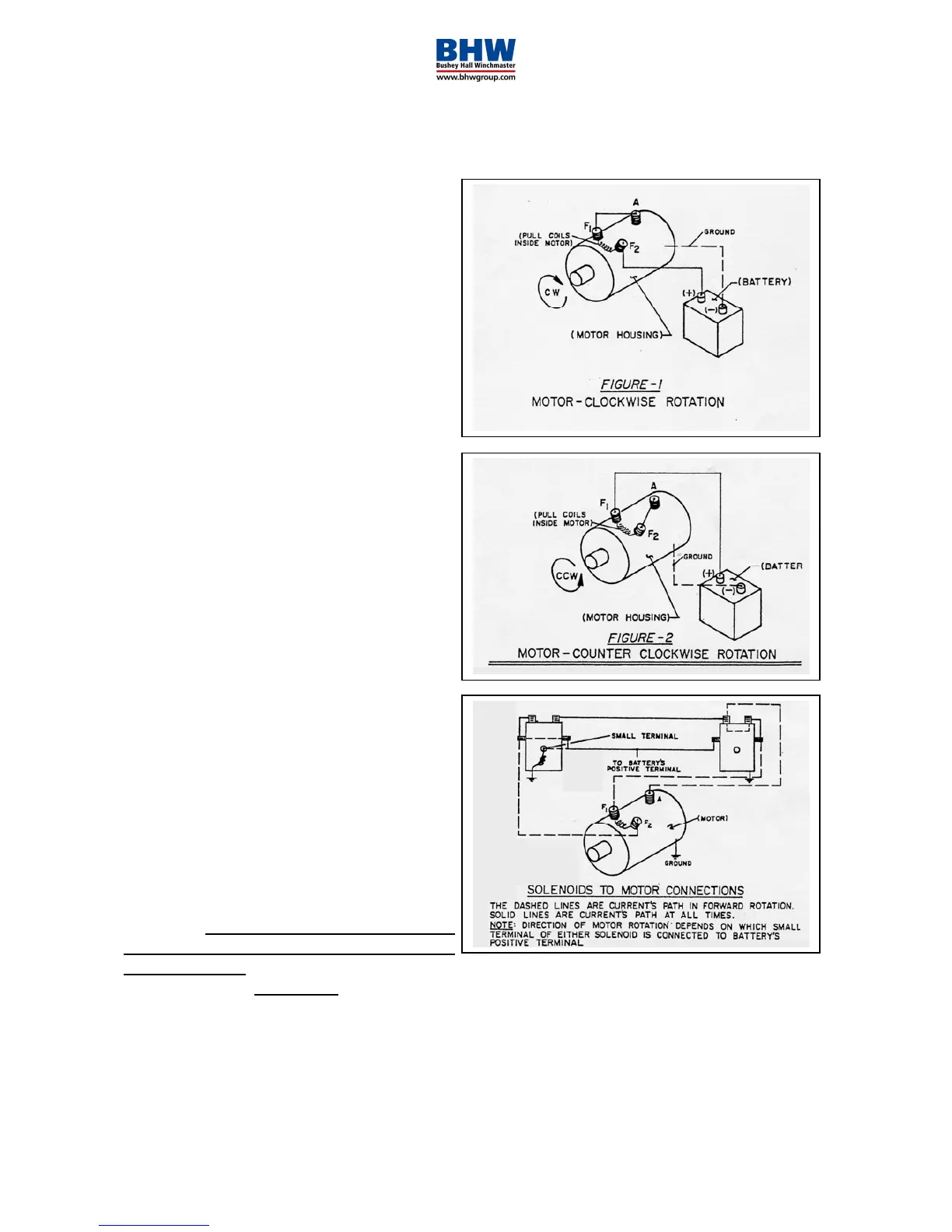

1. Connect a jumper wire (at least a
number 25mm
sq
170-amp wire) from F-
1 to A motor terminals (See fig. 1)
2. Attach a wire (at least a number
25mm
sq
170-amp wire) from positive
(+) battery terminal to F-2 motor the
motor and battery terminal. Ground
negative (-) battery terminal to motor
housing (See fig. 2). Motor should now
run.
To reverse the direction of rotation:
1. Attach jumper wire from F-2 to (A)
motor terminals (See fig. 2).
2. Attach wire from positive (+) battery
terminal to F-1 motor terminal. Ground
negative (-) battery terminal to motor
housing. (See fig. 2).
NOTE:
Always attach battery wire solidly to motor
terminals. Make and Break the connection
of the negative (-) battery terminal at the
motor housing. This avoids burning the
motor terminals. CAUTION: Do not run the
motor for a long period of time in fashion
mentioned above, because the motor
could become damaged.
