Ramsey Electronics DCY200 - Solenoid Assembly Parts

Item
No.
Qty.
Req'd
Part
No.
Description Item
No.
Qty.
Req'd
Part
No.
Description
41 10 418177 Lockwasher 3/8 Med Sect
z/p
67 1 494053 Spring
42 2 438014 Drag Brake 68 3 518002 Thrust Washer
43 1 442184 Gasket 69 1 518014 Thrust Washer
44 1 442185 Gasket 70 2 518015 Thrust Washer
45 1 442205 Gasket 71 1 518018 Fibre Washer
46 1 450001 Key
47 2 450006 Key – Barth
48 4 450016 Key - Barth
49 1 456001 Lub Fitting
50 2 456008 Relief Fitting
51 1 458001 Motor-12V
1 458005 Motor- 24V
52 1 462015 O-Ring
53 2 468002 Reducer
54 2 468011 Pipe Plug Sq Hd
55 2 468017 Pipe Plug Soc Hd
56 1 468018 Pipe Plug Soc Hd
57 2 470001 Pin
58 1 470033 Spirol Pin
59 1 472012 Plug
60 1 472013 Plug
61 1 482013 Rubber Boot
62 1 486009 Oil Seal
63 1 486017 Oil Seal
64 1 486023 Oil Seal
65 1 490003 Snap Ring
66 2 494002 Spring

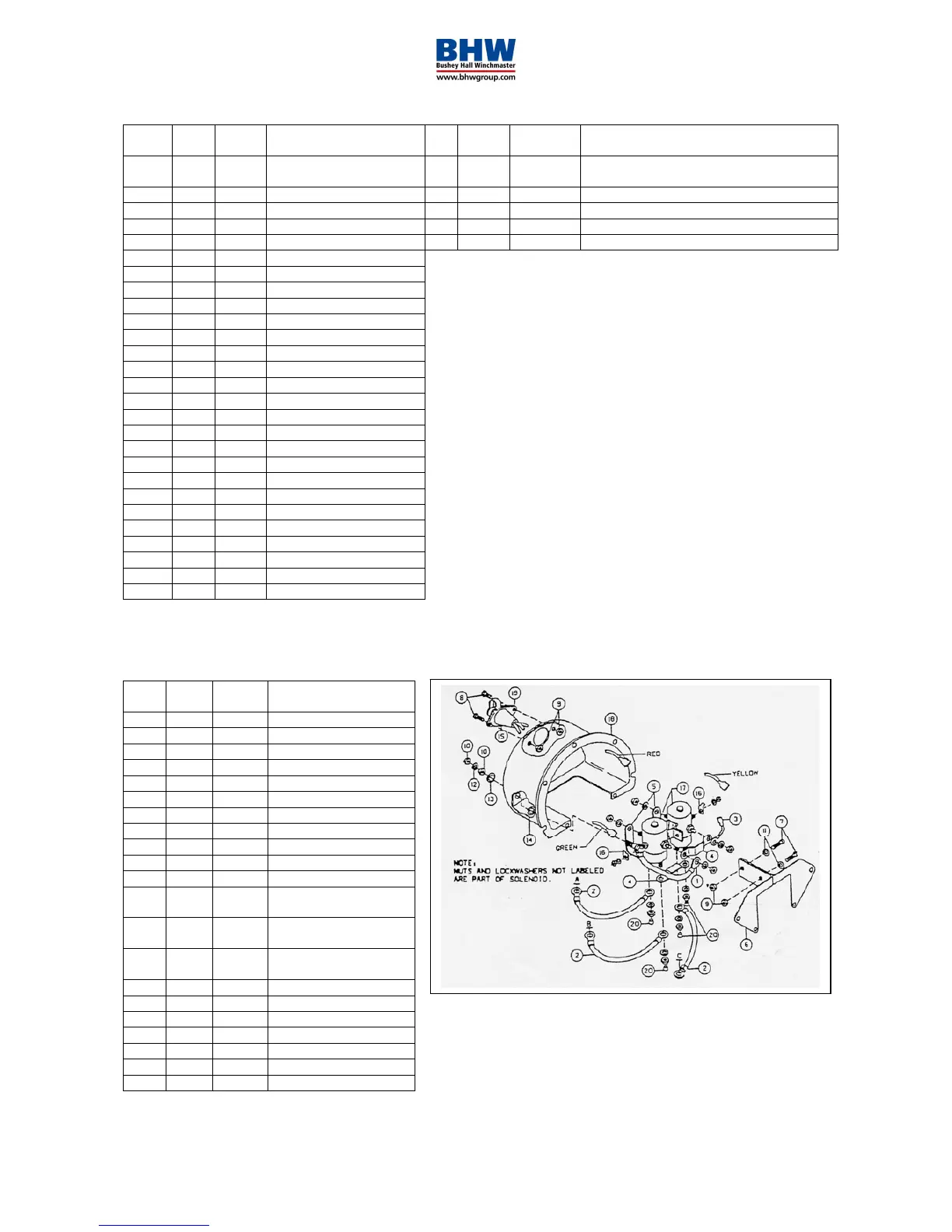

SOLENOID ASSEMBLY PARTS
Item
No.
Qty.
Req'd
Part
No.
Description
1 1 289009 CABLE-BOLT ASSY
2 3 289077 WIRE ASSEMBLY
3 1 289091 WIRE ASSEMBLY
4 2 364001 STRAP
5 2 364002 STRAP
6 1 408035 SOLENOID BRACKET
7 2 416216 SCREW
8 2 416227 SCREW
9 4 418004 NUT
10 2 418022 NUT 5/16-18NC Hx REG
11 2 418140 FLAT WASHER 10
12 1 418153 LOCKWASHER 5/16
MED SECT
13 1 418154 LOCKWASHER 5/16
INTERNAL
14 1 418155 LOCK WASHER 5/16
EXTERNAL
15 1 430013 FEMALE CONNECTOR
16 2 440071 TERMINAL TAB
17 2 440110 SOLENOID 12V
2 440114 SOLENOID 24V
18 1 472010 COVER
19 1 482029 COVER CONNECTOR
20 4 530106 COVER TERMINAL
