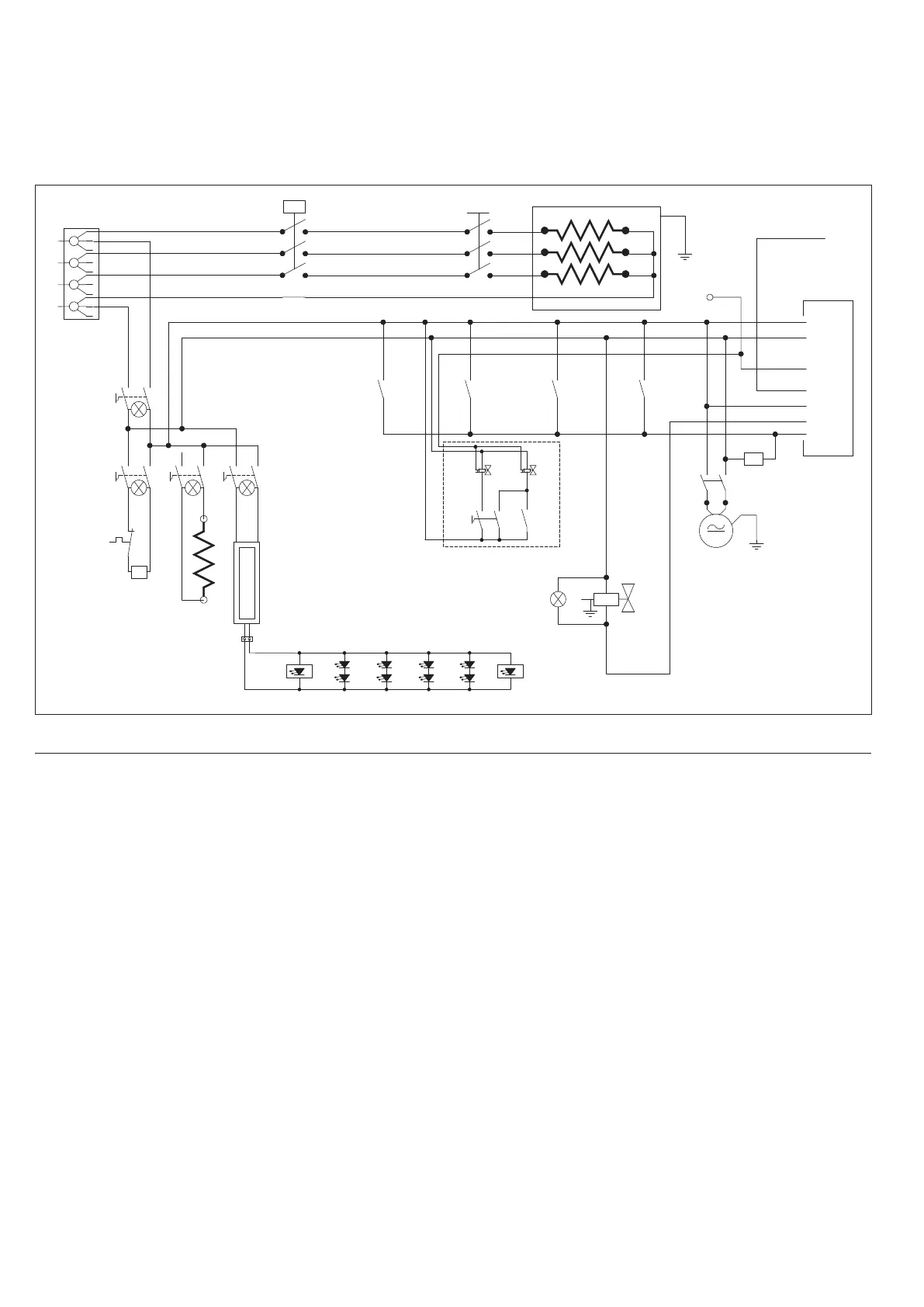

Schéma électrique
Electric diagram
Schemi elettrici
Schemi
Diagrams
Diagrammes
Ref: SE_1432/--
Teleruttore
Remote switch
Télérupteur
TR
Termostato di sicurezza
Safety thermostat
Thermostat de sécurité
TS
Lampada livello
Lamp Level indicator
Lampe niveau
LC
Morsettiera
Main Terminal
Borne de raccordement
M1
Indicatore di livello
Level indicator
Indicateur de niveau
LI
LED Gruppo
LED Group
DEL Groupe
LGR1
LGR2
LGR3
LGR4
Alimentazione 24V
Power Supply 24V
Alimentation 24V
A24
Caldaia
Boiler
Chaudière
CL
Sensore di livello
Level sensor
Capteurs de niveau
SL
Scambiatore
Heat exchanger
Echangeur thermique
SC
Luci lato destro
Right side illumination
Lumiére coté droite
SDX
Elettrovalvola vapore
Steam valve
Soupape de vapeur
EV
Valvola di espansione
Expansion valve
Soupape d’expansion
ES
Rubinetto acqua
Water tap
Robinet d’eau
RA
Pompa volumetrica
Volumetric pump
Pompe volumétrique
PV
Resistenza caldaia
Boiler heating resist.
Resist. chauage de la chaudière
RC
Rubintto carico manuale
Manual filling tap
Robinet charge manuel
PA
TR
P
RC
SL
F
N
SL
SR
C
N.O.
N.O.
1
2
8
9
4
6
7
EB
MC
MC
MP
M
IR
IG
TR
GV
5 2
14
5 2
14
GV
LC
EC
RS
L1
N
L2
L3
M1
TS
EV EAR
RMM
RMR
* Optional
IS
5 2
14
LI
5 2
14
A24
LGR1 LGR2 LGR3
LGR4
SSX
SDX
RMG 1 RMG 2 RMG 3 RMG 4
