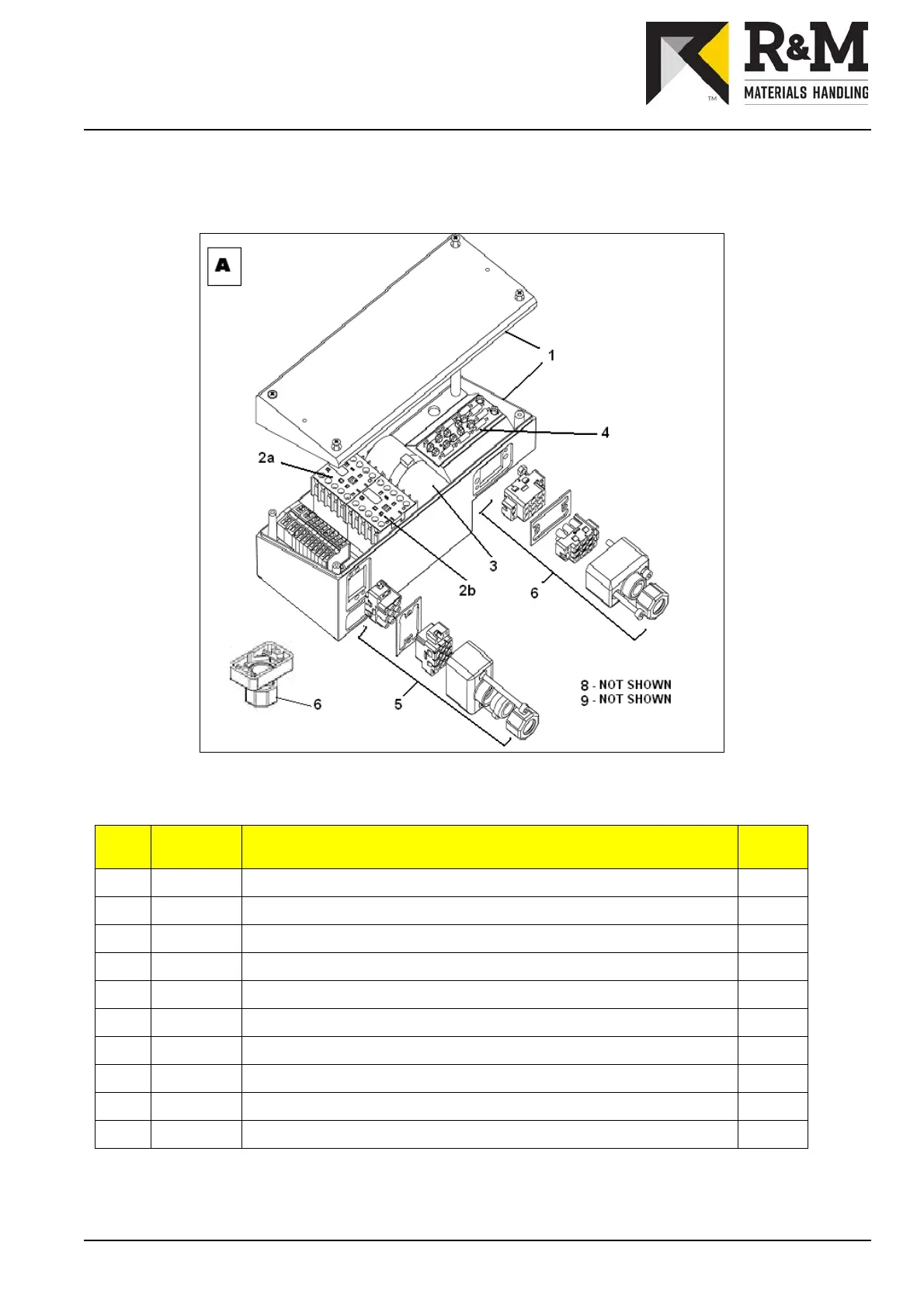

7.5 Control Panel Assembly – 115 Volt 1-Phase Power Supply
Table 15. Control Panel Assembly (115v 1-Phase Power Supply) Parts List
ITEM
PART
NUMBER
DESCRIPTION QTY
A 52314680 CONTROLS & ENCLOSURE ASSEMBLY – 1+2+3+4 1
1 2218078 ELECTRICAL ENCLOSURE SET – BASE AND COVER 1
2 52315603 CONTACTORS K21 or K22 – 115 VAC 1-PHASE 1
3 52315864 MOTOR CAPACITOR 115VAC 60Hz 1-PHASE MOTOR 1
4 52315863 MOTOR BRAKE RECTIFIER ASSY – 115 VAC 1-PHASE 1
5 2249982 POWER SUPPLY PLUG ASSEMBLY – OPTIONAL ON C01 1
6 2249947 POWER SUPPLY CABLE GLAND 1
7 2249945 X23 PUSH BUTTON PLUG ASSEMBLY ON CONTROL BOX 1
8 52315883 CONTROL FUSES – SET OF 10 – 115 VAC 1-PHASE 1
9 52281214 FUSE HOLDER 1
