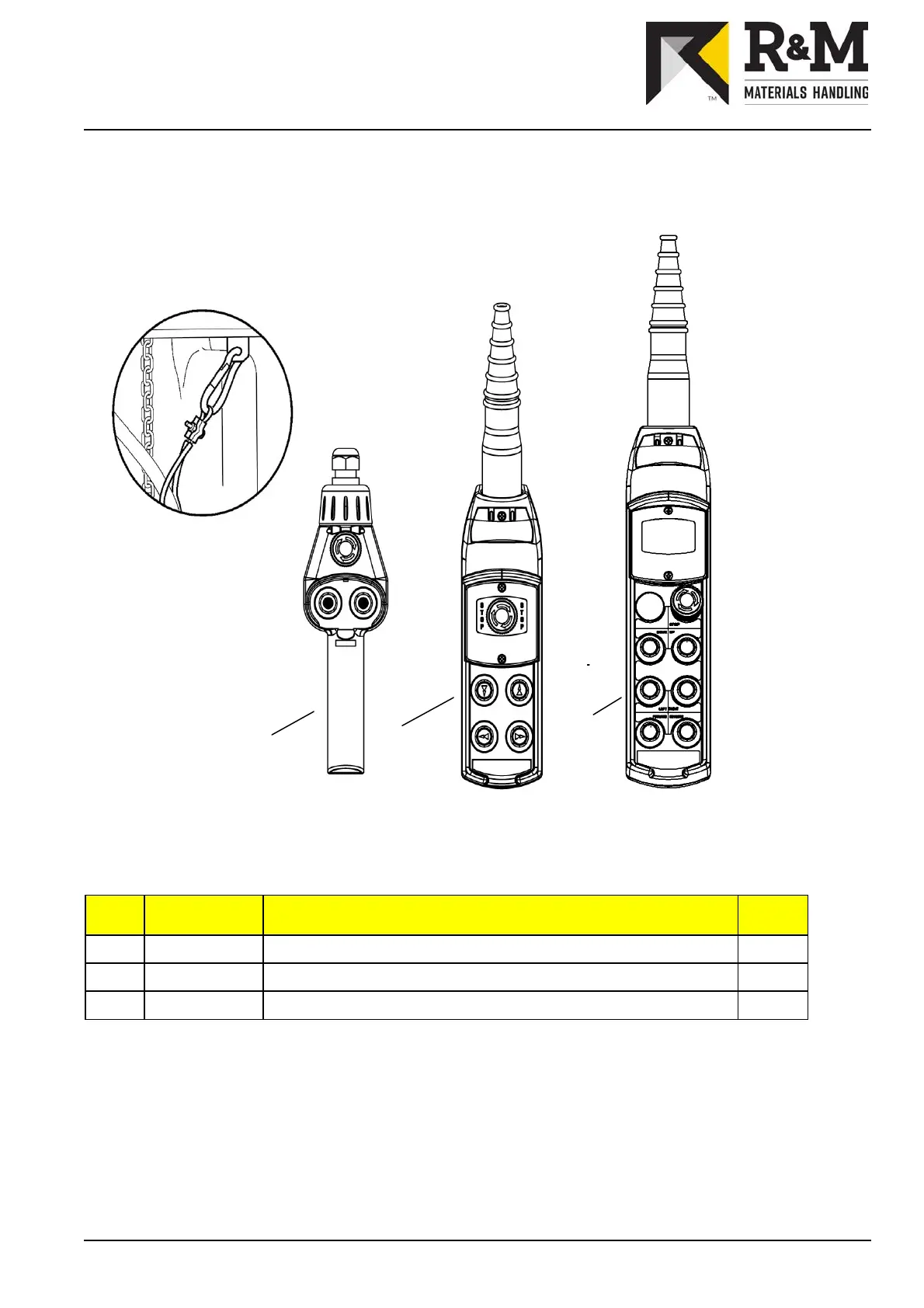

7.8 Push Button Assembly – Horizontal Pairs of Buttons
Tab
le 18. Push Button Assembly – Horizontal Pairs of Buttons Parts List
ITEM
PART
NUMBER
DESCRIPTION QTY
1 52301832 PISTOL GRIP P/B CONTROL ASSEMBLY – TWO SPEED 1
2 2213466004 P/B CONTROL ASSEMBLY – TWO SPEED – 5 BUTTON 1
3 2213466005 P/B CONTROL ASSEMBLY – TWO SPEED – 7 BUTTON 1
2
1
3
