R&M LOADMATE LM 05 - Gear Limit Switch (OPTION)

LM01 I&M MANUAL/EN/11.30.2010
58/65
This document and the information contained herein, is the exclusive property of R&M MATERIALS HANDLING, INC. and represents a non-public, confidential and proprietary trade secret
that may not be reproduced, disclosed to third parties, altered or otherwise emplo
yed in any manner whatsoever without the express written consent of R&M MATERIALS HANDLING, INC.
Copyright © (2010) R&M MATERIALS HANDLING, INC. All rights reserved.

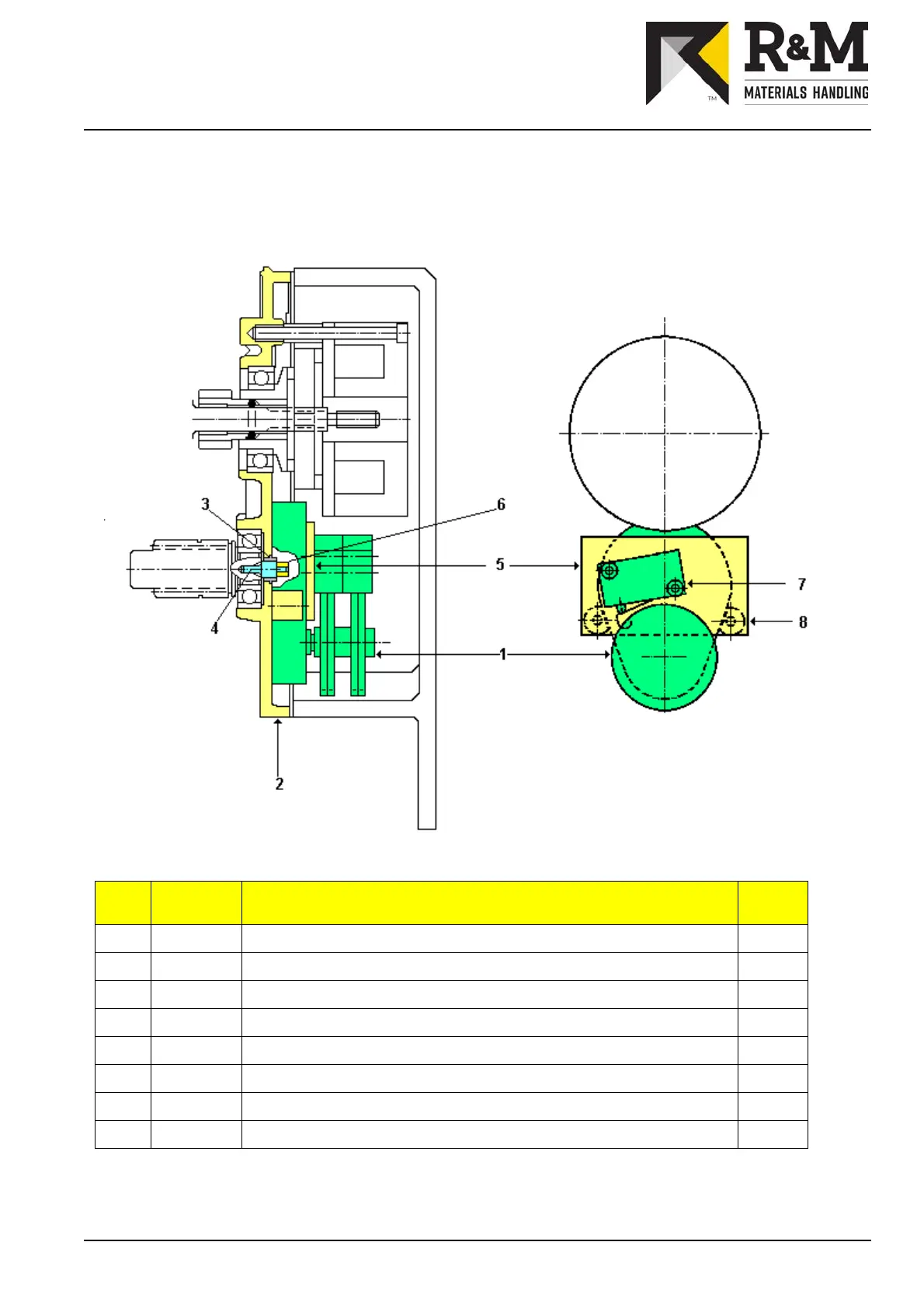

7.6 Gear Limit Switch (OPTION)
Tab
le 16. Gear Limit Switch (Option) Parts List
ITEM
PART
NUMBER
DESCRIPTION QTY
1 52265594 COMPLETE SET OF GEAR LIMIT SWITCHES 1
2 52265595 SPECIAL GEAR LIMIT SWITCH FLANGE 1
3 52265597 LOCATION BEARING 1
4 52265596 LIMIT SWITCH AXLE 1
5 52265598 FIXING PLATE 1
6 52293717 PINION 1
7 52286087 SCREW 2
8 52286086 SCREW 2
