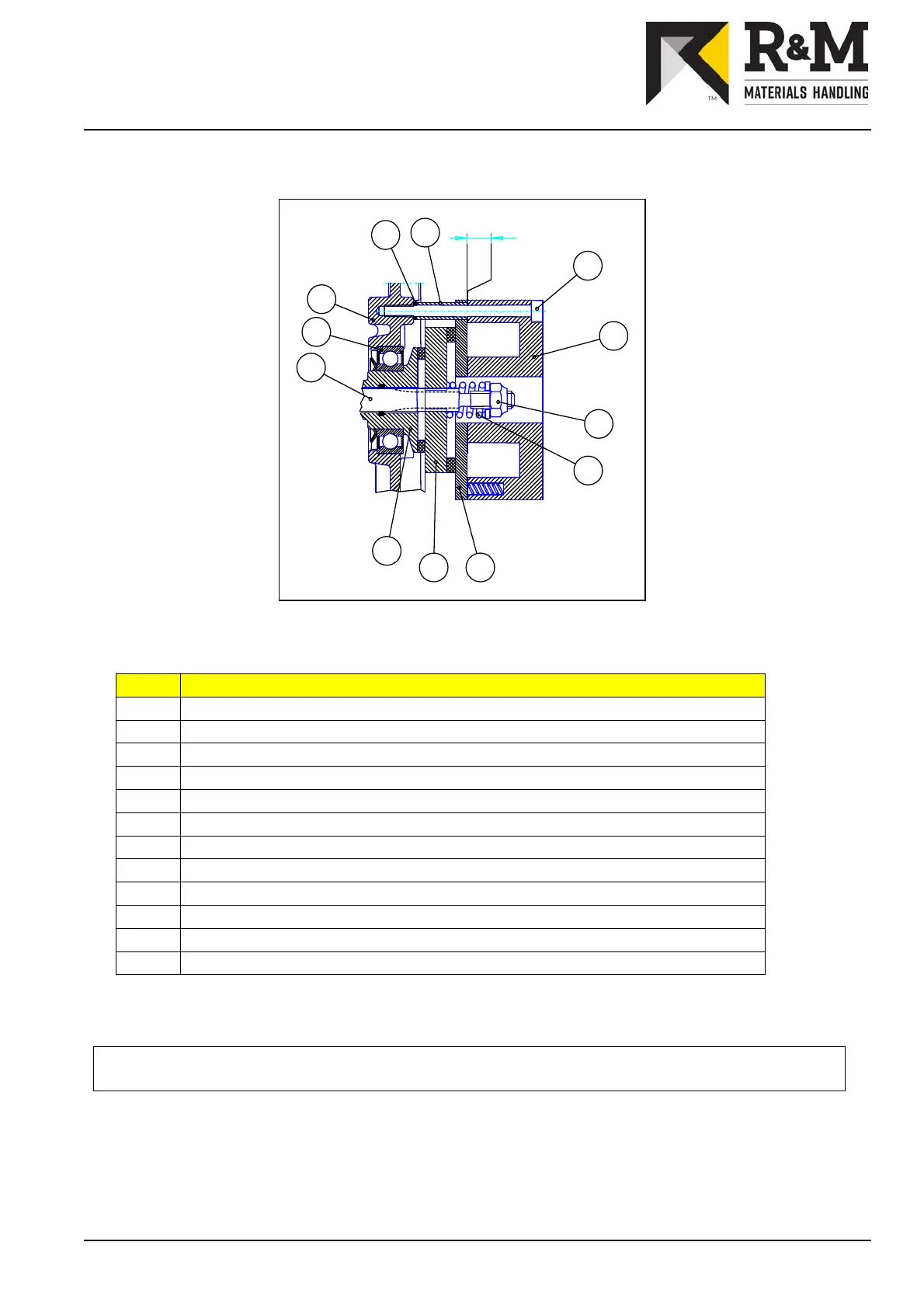

Figure 5. Cross Section of Hoist Brake / Slip Clutch
5
1
23
4
6
7
8
9
10
11
12
P01017
X
Table 1. Hoist Brake / Slip Clutch Parts List
ITEM DESCRIPTION
1 ELECTROMAGNETIC COIL
2 BRAKE LINING PLATE
3 BRAKE AND SLIP CLUTCH DISC
4 SLIP CLUTCH LINING DISC
5 SCREWS
6 SLEEVE
7 ELASTIC WASHERS
8 MOTOR SHAFT
9 ADJUSTING NUT
10 SPRING
11 GEAR COVER
12 BEARING


 NOTE: Item ‘X’ (air gap) is discussed in section 5.3.3 Hoist Motor Brake Adjustment.
