5.6 Chain Container

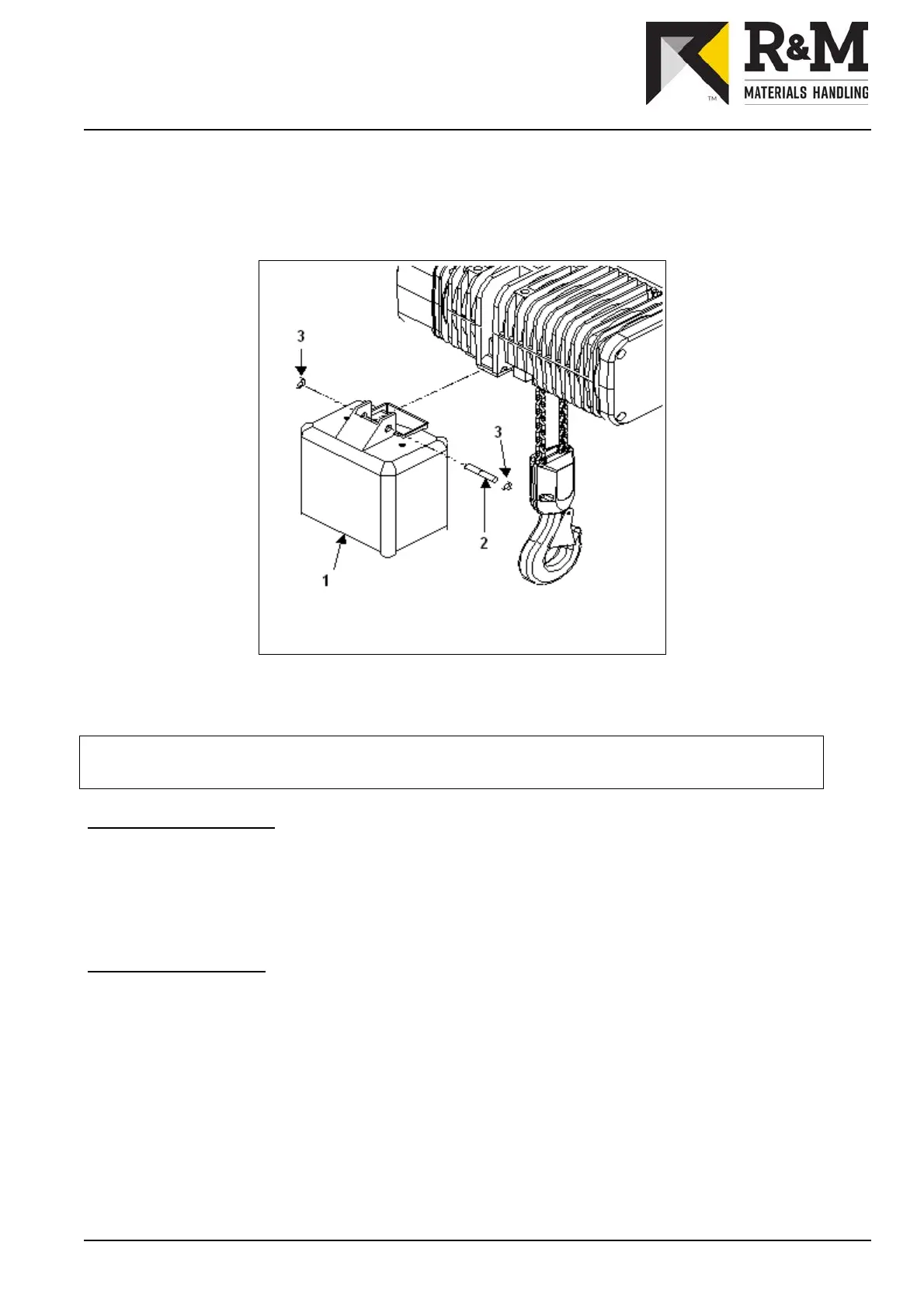

Figure 9. Chain Container Installation
CAUTION: Chain container must be installed for effective operation of travel limit switch.
Removing Chain Container
1. Remove clip (item 3) from end of pin (item 2).
2. Pull pin (item 2) out while supporting chain container (item 1) at same time.
3. Remove chain container.
Installing Chain Container
1. Insert load chain into chain container (item 1) and position chain container on mounting bracket.
2. Align holes and insert pin (item 2) through chain container (item 1) and mounting bracket.
3. Secure with two clips (item 3), one on each end of pin (item 1).
