3.3 Settings in Subrange tab

In the Subrange tab, the following parameters can be set:

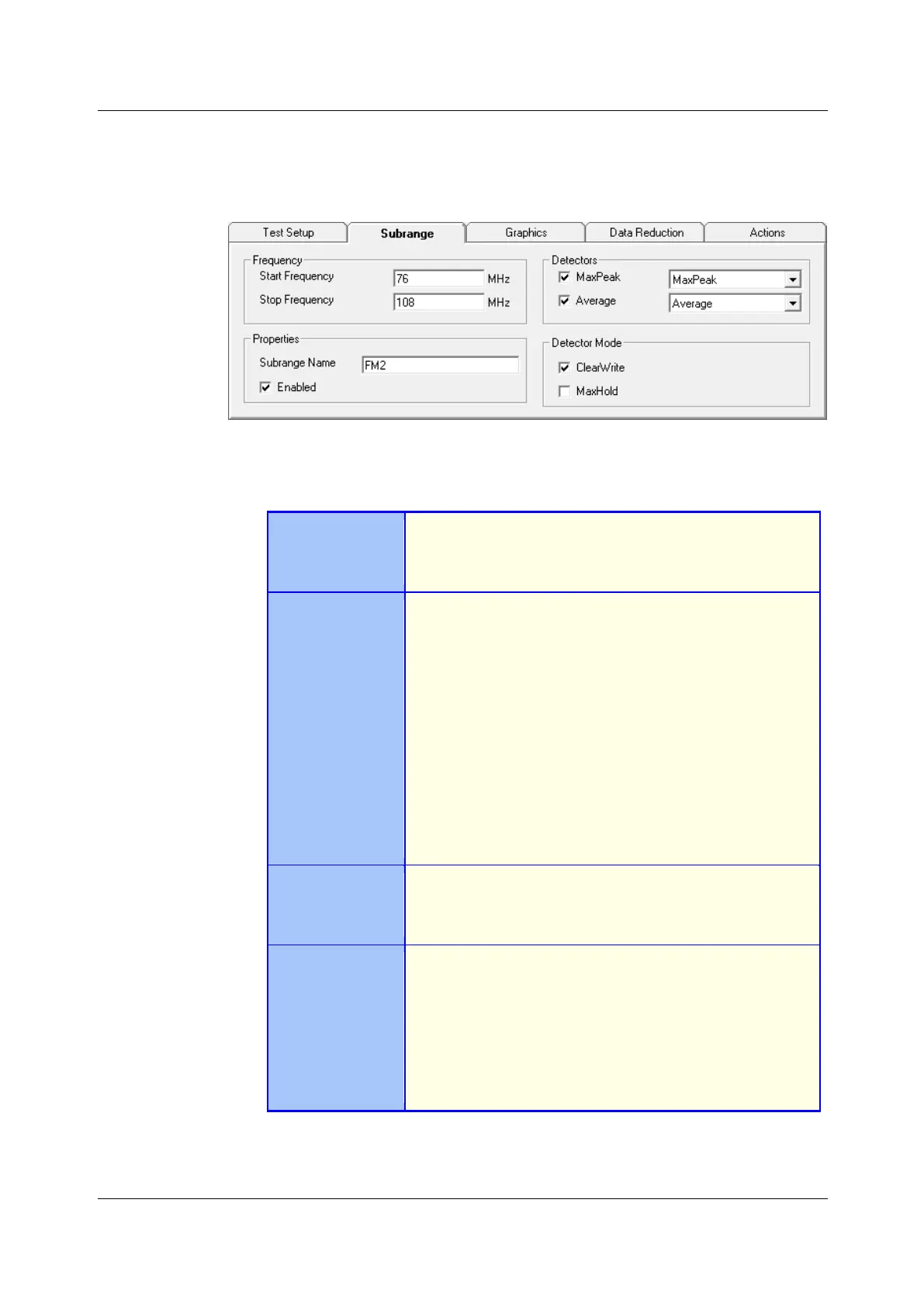

Figure 21: Settings of the Subrange tab

Table 3-2: Setting in the Subrange tab

Frequency

Start and stop frequency for this subrange. The

stop frequency must always be higher than the

start frequency.

Properties

Subrange Name:

Individual name can be defined here for the

subrange or band

Enabled:

 Checked: Measurement defined in this

subrange will be carried out during test

run,

 Unchecked: Measurement defined in this

subrange will be skipped during test run

Detectors

If one or both detectors should be used for this

subrange. If only one detector is selected it will

be used for this subrange automatically.

Detector

Mode

Allows to check ClearWrite and / or Maxhold

 ClearWrite: New measurement value

overwrites the old one, and

 MaxHold: New measurement value is

stored if it is higher than the old one
