Running an EMI Band Evaluation Test
01.00 Rohde & Schwarz EMI Automotive Band Evaluation with R&S©EMC32-K51 – 1SP07- 28

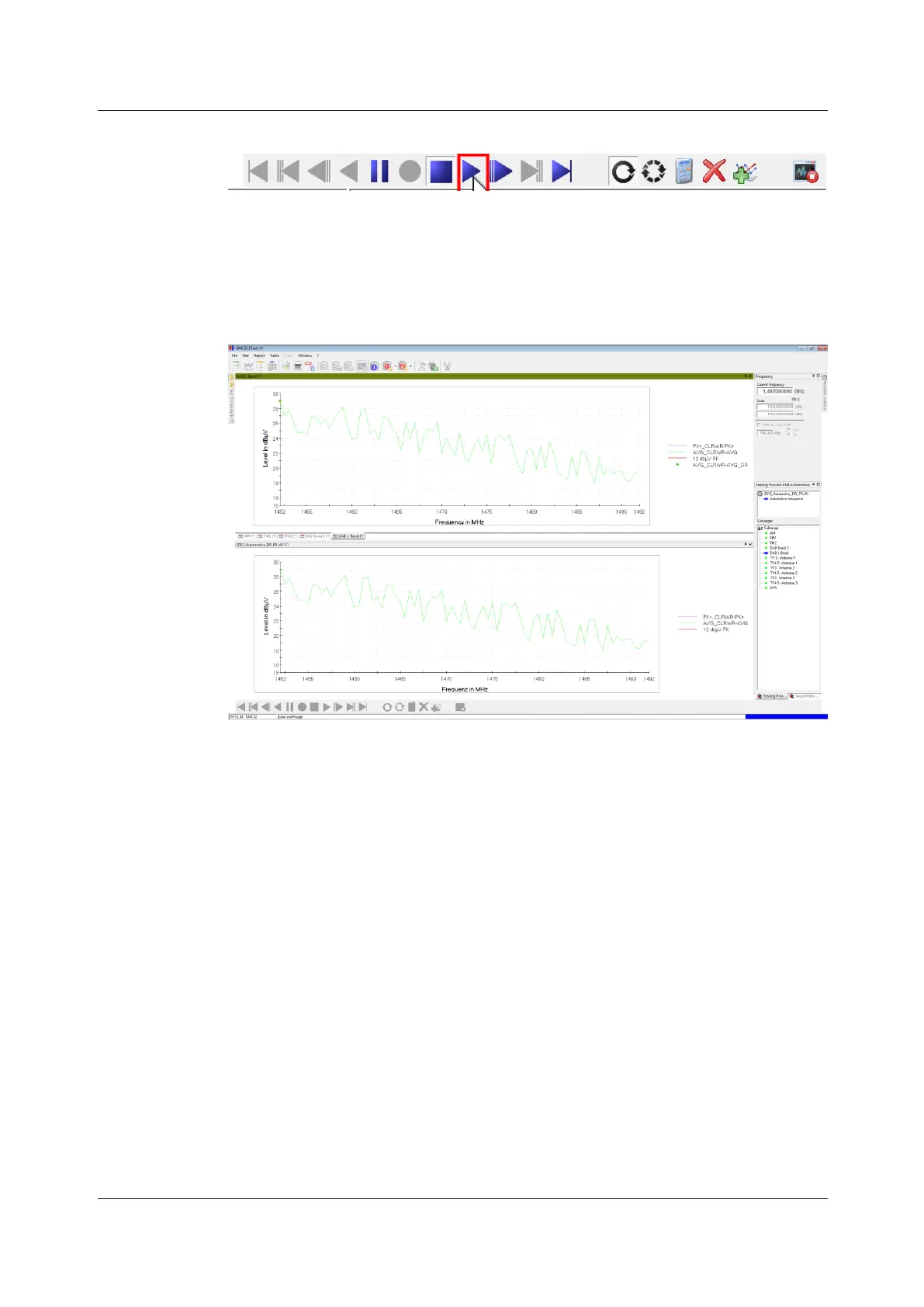

Figure 34: Video recorder like control bar
4.1.2 Screen elements:
In the upper graphics area all measured frequency bands are shown in the tree view
style and can be shown easily by clicking on the appropriate tab. In the lower graphics
area the currently measured band is shown.
Further mode there is Frequency Test control, which shows the current measured
frequency as well as the Arbitrary Step Width.
Figure 35: During test run each subrange when executed gathers the data in a
separate table and graphic
