e) Using the rotary knob, move the vertical line to the start of the burst.
f) Press the "Right Limit" softkey.
g) Using the rotary knob, move the second vertical line to the end of the
burst.
The R&S ESR displays the power during the activation phase of the burst.

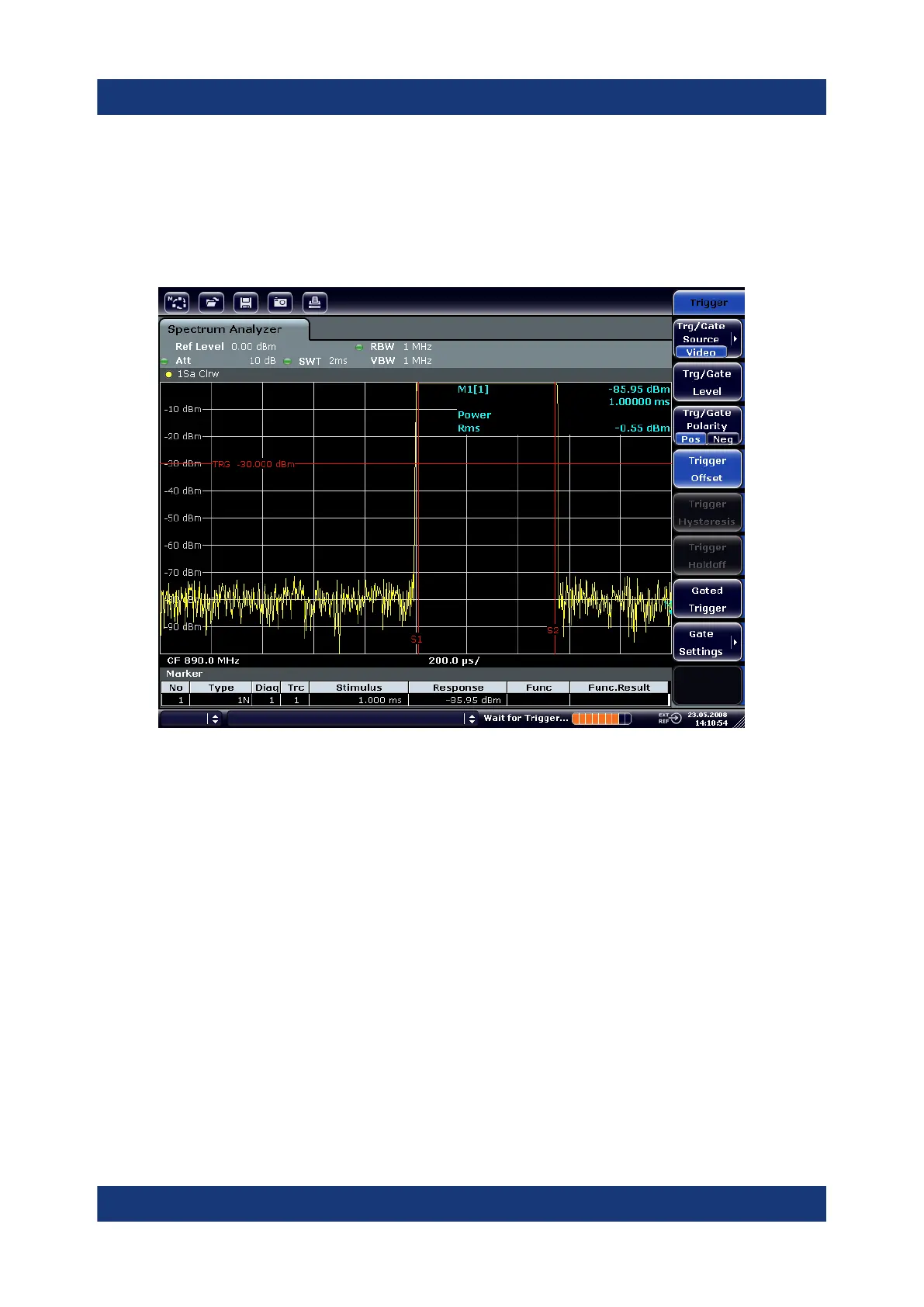

Figure 7-11: Power measurement during the activation phase of the burst
8. Measure the power during the deactivation phase of the burst.
a) Press the [TRIG] key.
Measurements in Zero Span
