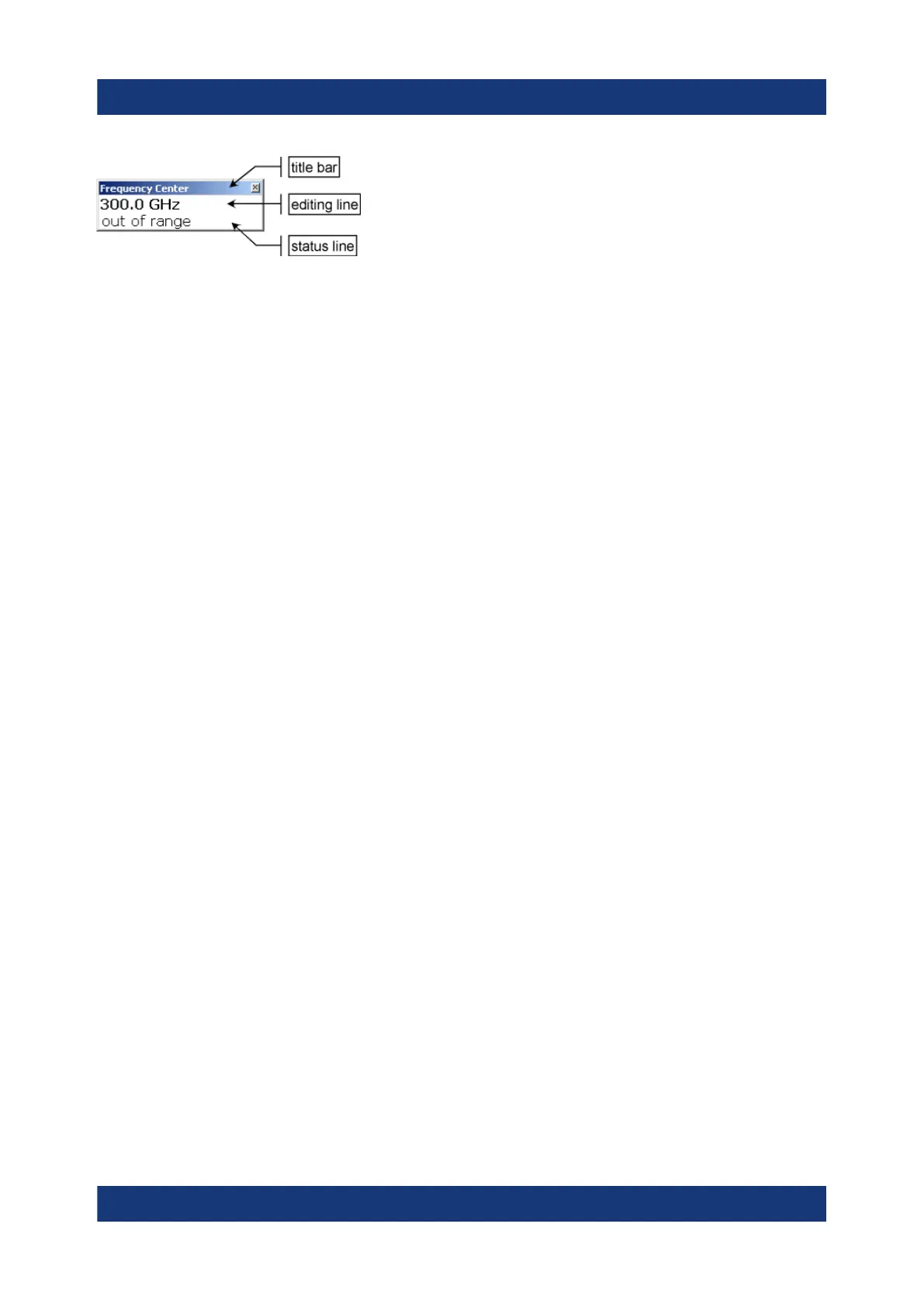

Figure 6-1: Edit dialog box for parameter entry
The title bar shows the name of the parameter that was selected. The entry is
performed in the editing line. When the dialog box is displayed, the focus is on the
editing line and it contains the currently used parameter value and its unit. The
optional third line shows status and error messages which always refer to the cur-
rent entry.
6.3 Setting Parameters
This section describes how to perform the following basic tasks in the R&S ESR:
●
Chapter 6.3.1, "Entering Numeric Parameters", on page 63
●
Chapter 6.3.2, "Entering Alphanumeric Parameters", on page 64
●
Chapter 6.3.3, "Navigating in Dialog Boxes", on page 66
6.3.1 Entering Numeric Parameters
If a field requires numeric input, the keypad provides only numbers.
1. Enter the parameter value using the keypad, or change the currently used
parameter value by using the rotary knob (small steps) or the UPARROW or
DNARROW keys (large steps).
2. After entering the numeric value via keypad, press the corresponding unit key.
The unit is added to the entry.
3. If the parameter does not require a unit, confirm the entered value by pressing
the ENTER key or one of the unit keys.
The editing line is highlighted in order to confirm the entry.
