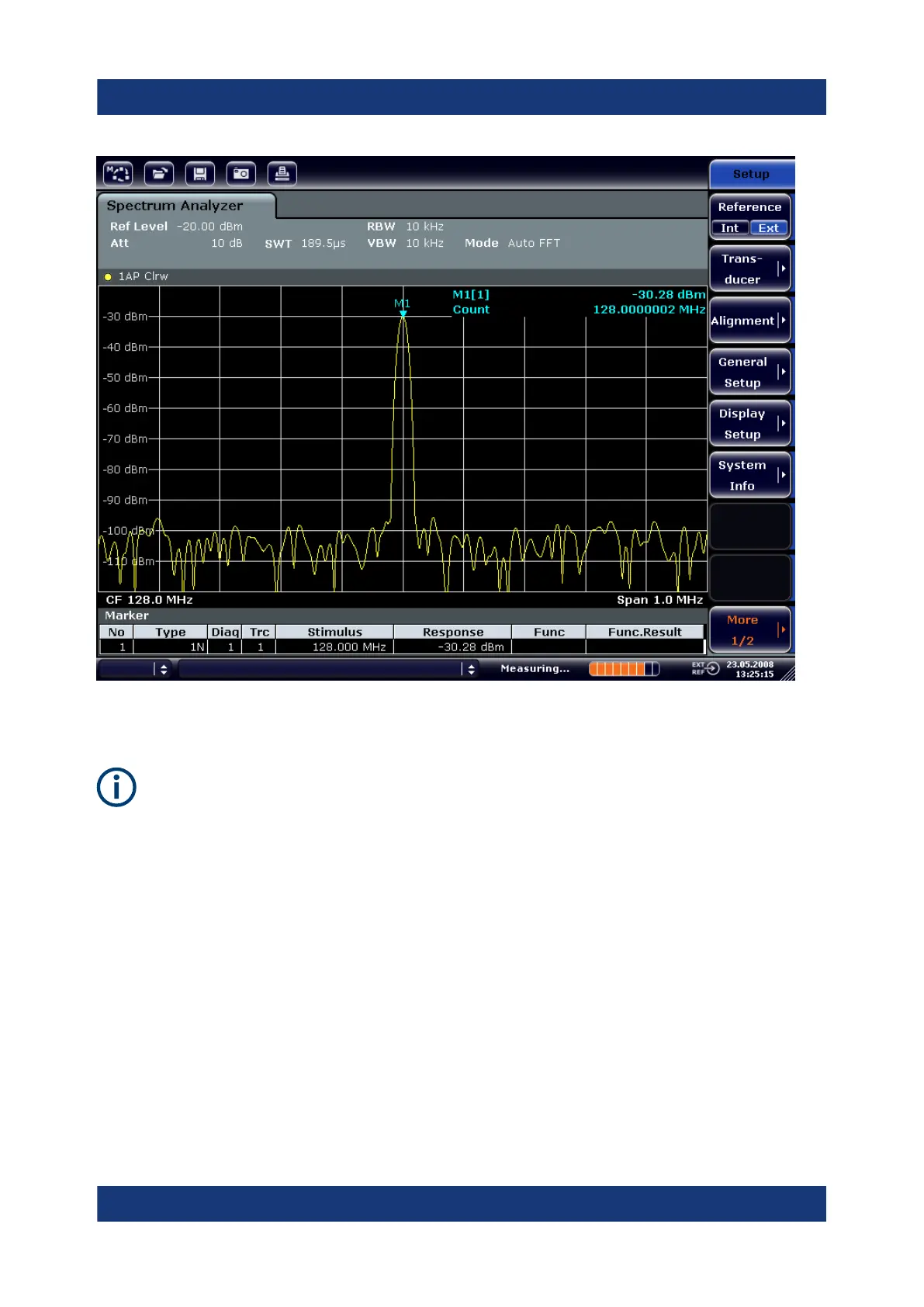

Figure 7-1: Measurement of the frequency with the frequency counter
Prerequisites for using the internal frequency counter
In order to obtain a correct result when measuring the frequency with the
internal frequency counter, an RF sinusoidal signal or a spectral line must
be available. The marker must be located more than 25 dB above the noise
level to ensure that the specified measurement accuracy is adhered to.
7.2 Measuring Harmonics of Sinusoidal Signals
Measuring the harmonics of a signal is a very common task that can be per-
formed optimally by using a Signal and Spectrum Analyzer.
In the following example, the generator signal with 128 MHz and -20 dBm is used
again.
Measuring Harmonics of Sinusoidal Signals
