Basic Measurement Examples
R&S
®
ESR
106Getting Started 1316.3749.02 ─ 09
c) Press the "Trg/Gate Level" softkey and enter 50%.
A static image for the FM AF signal is produced.
Result: (-10 ( 5) dB; this yields a deviation of 100 kHz when the steepness
of the demodulator characteristic is 5 dB/100 kHz.

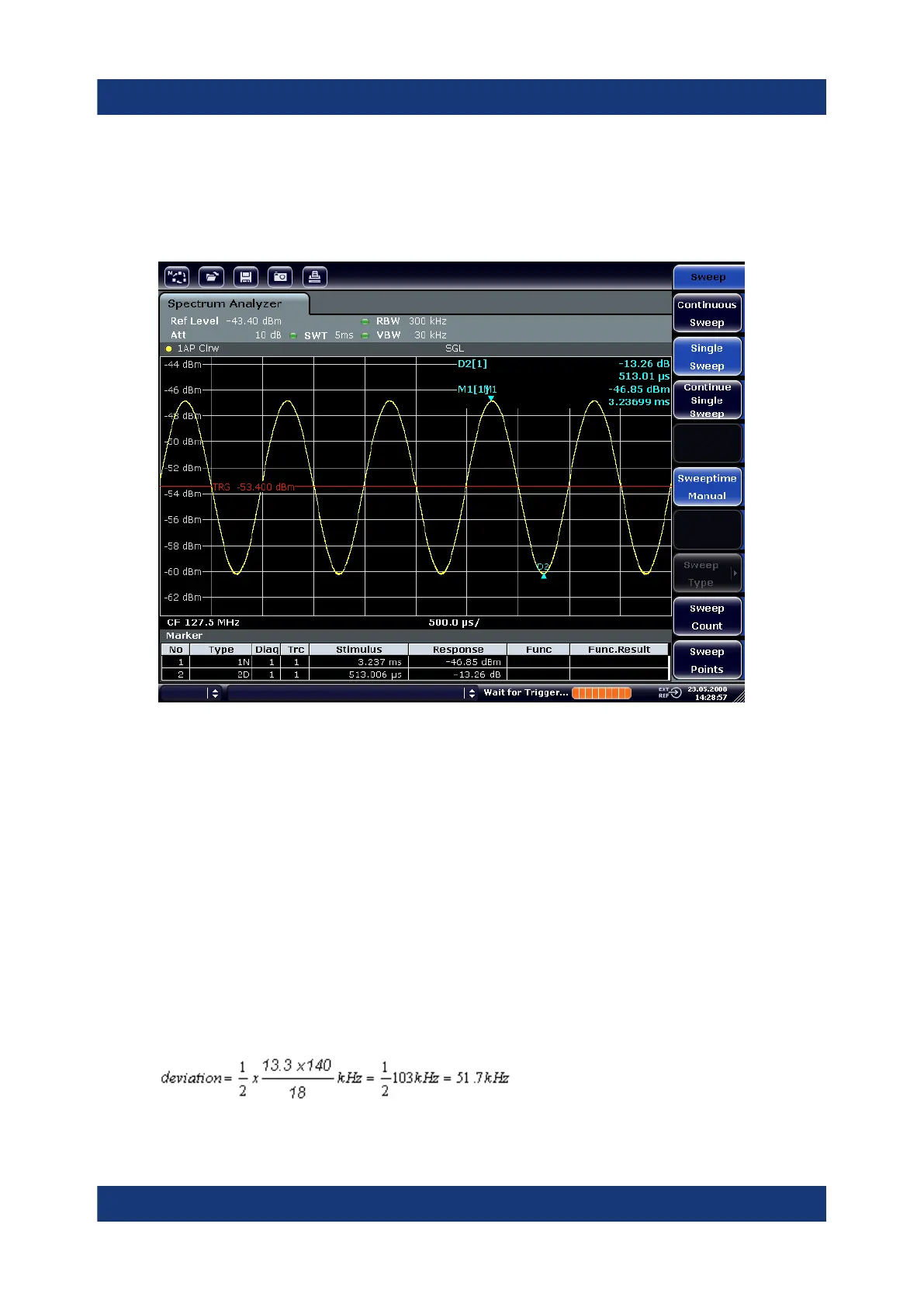

Figure 7-14: Demodulated FM signal
9. Determine the deviation.
a) Press the [MKR] key.
Marker 1 is activated and placed on the peak of the curve.
b) Press the "Marker 2" softkey.
c) Press the [MKR] key.
d) Press the "More" softkey.
e) Press the "Min" softkey.
Marker 2 (delta marker) is placed on the minimum of the curve. The level
difference is 13.3 dB, which corresponds to the peak-to-peak deviation.
With the filter slope of 18 dB/140 kHz, the deviation can be calculated as
follows:
Measurements in Zero Span
