Basic Measurement Examples
R&S
®
ESR
92Getting Started 1316.3749.02 ─ 09

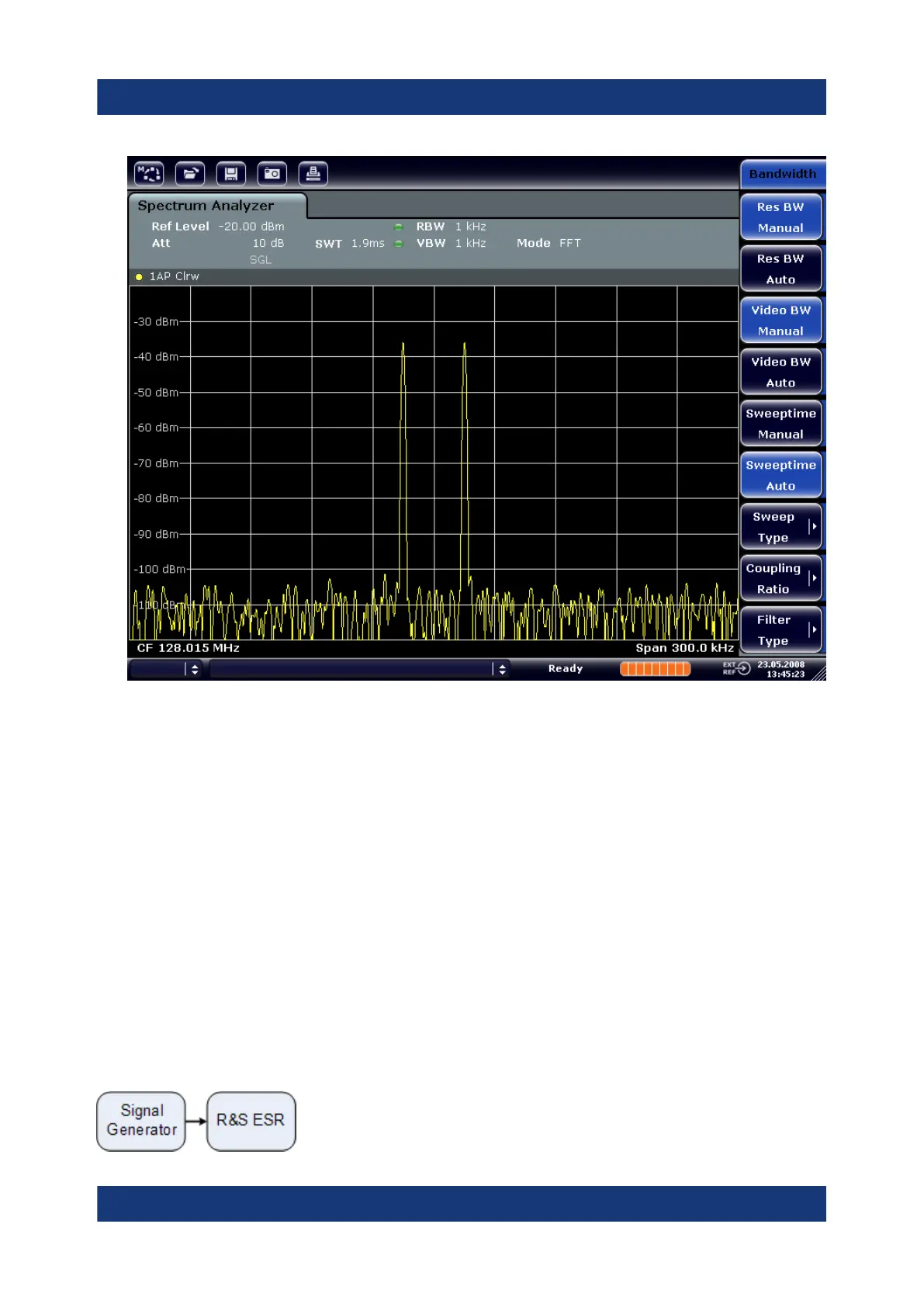

Figure 7-6: Measurement of two equally-leveled RF sinusoidal signals with a resolu-
tion bandwidth (1 kHz) which is significantly smaller than their frequency
spacing
7.3.2 Measuring the Modulation Depth of an AM-Modulated
Carrier (Span > 0)
In the frequency range display, the AM side bands can be resolved with a narrow
bandwidth and measured separately. The modulation depth of a carrier modula-
ted with a sinusoidal signal can then be measured. Since the dynamic range of a
signal analyzer is very large, extremely small modulation depths can also be
measured precisely. For this purpose, the R&S ESR provides measurement rou-
tines that output the modulation depth numerically in % directly.
Test setup
Measuring Signal Spectra with Multiple Signals
