8. Circuit Diagrams

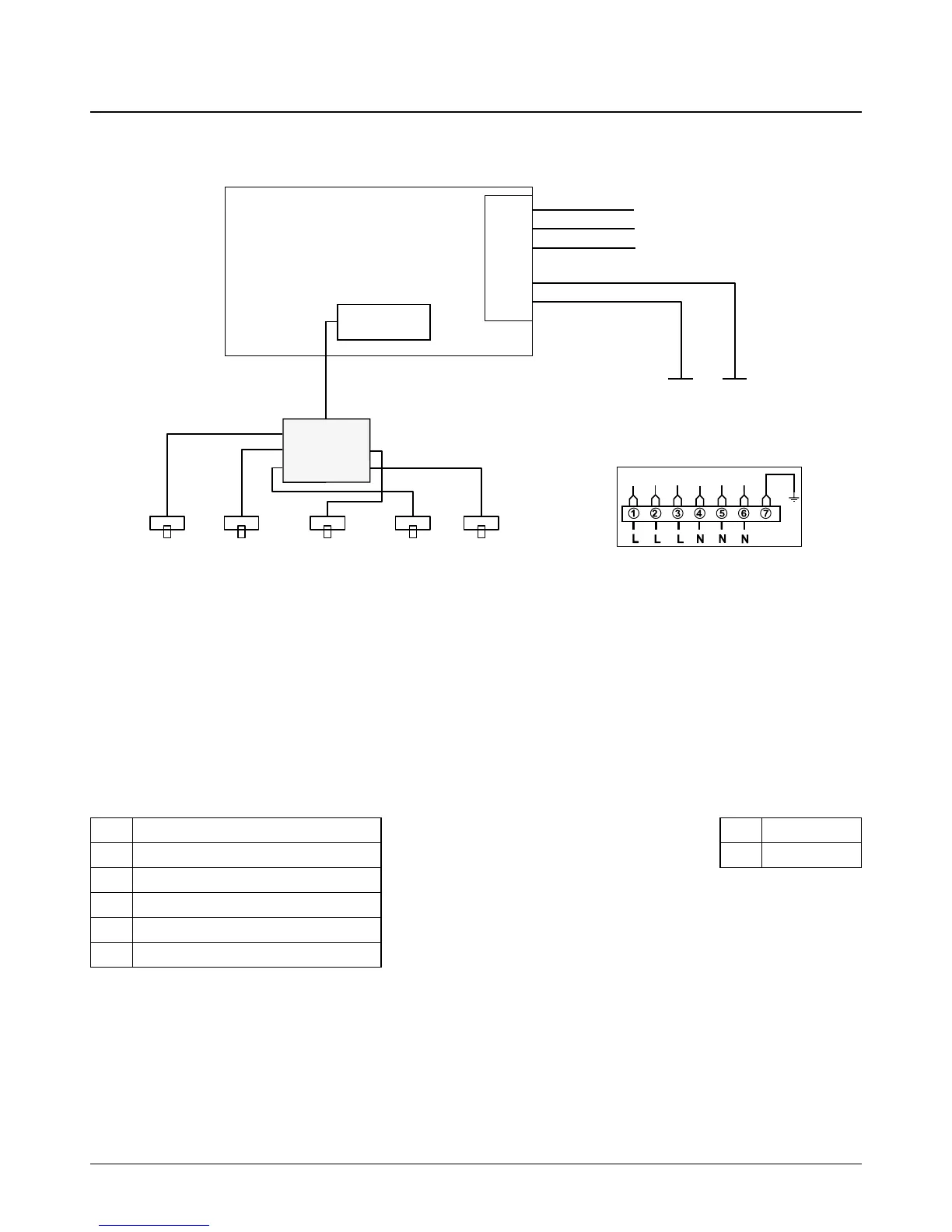

Circuit Diagram: Hob
Key
The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.
ArtNo.083-0011 - IN G5 2-phase - Circuit diagram
5 3 4
Earth
N(6)
N(4)
L(2) L(3)
E
5
4
3
2
1
Interface
board
1
2
5
3 4
Induction unit
Hob display
w/br
w/br
w/br
w/br
w/br
1 2
On terminal block
On terminal block
On terminal block
Code Description
1 Left-hand front element
2 Left-hand rear element
3 Right-hand rear element
4 Right-hand front element
5 Centre element
Code Colour
w/br White/brown
