33
Key Description
A1 Grill control
A2 Left-hand grill element
A3 Right-hand grill element
B1 Left-hand multi-function oven thermostat
B2 Left-hand multi-function oven control switch
B3 Left-hand multi-function oven base element
B4 Left-hand multi-function oven top element
(outer pair)
B5 Left-hand multi-function oven browning
element (inner pair)
B6 Left-hand multi-function oven fan element
B7 Left-hand multi-function oven oven fan
C Clock
Key Description
D1 Right-hand fan oven thermostat
D2 Right-hand fan oven control switch
D3 Right-hand fan oven element
D4 Right-hand oven fan
F1 Oven light switch
F2 Oven lamp
H1 Ignition switch
H2 Ignition generator
I Neon
J Thermal cut-out
Code Colour
b Blue
br Brown
bk Black
or Orange
r Red
v Violet
w White
y Yellow
g/y Green/Yellow
gr Grey
Key
The connections shown in the circuit diagram are for single-phase. The ratings are for 230
P028728
6
P6
5 P5
4
P4
7 P7
8 P8
2
P2
1
P1
3 P3
a
b
e
f
c
d
1
2
P095199
1
2
P2
P1
E
1
2
1
2
w
w
w
b
b
b
b
b
b
b b
b
b
b
b
b
b b
b b
or
or
or
or
gr
bk
w
y
y
y
v
v
v
v
v
v
bk
bk
r
r r
r
br
br
r
b
r
gr
w
y
r
br
br
br
br
brbr
br
w
v
v b
w
w
w
w
b
b
b
br
b
b
b
w
br
b
b
w
bk
bk
b bbr br b b bbr
r
r
v
v
A1
A2
B1
B2
B3
B4
B5
B6
B7
C
D1
D2
D3
D4
F1
F2
G1
G2
H1
H2
I
I
I
J
J
J
I
A3
Key

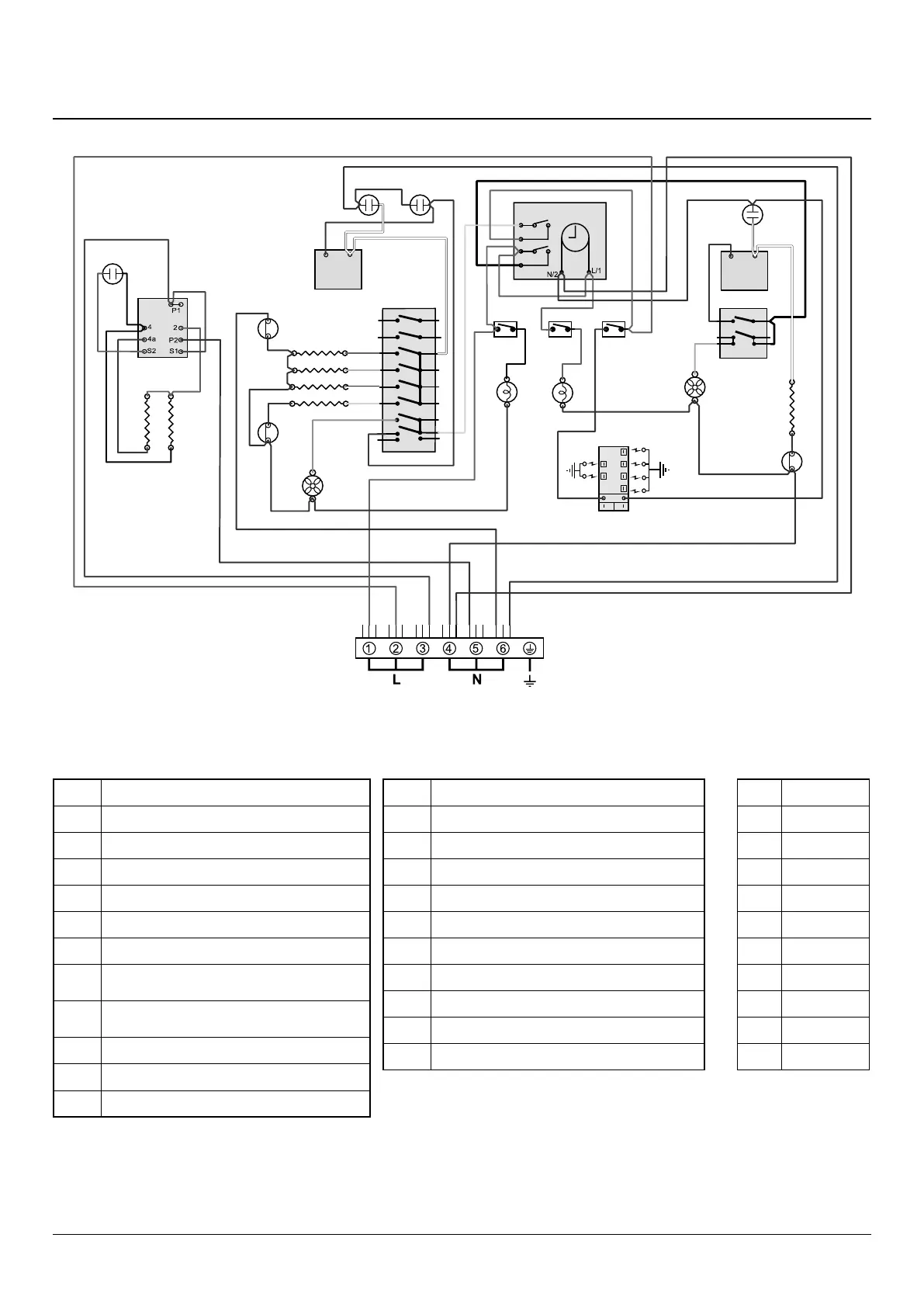

The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.
10. Circuit Diagram
Code Description
A1
Grill control
A2
Left-hand grill element
A3
Right-hand grill element
B1
Left-hand multifunction oven thermostat
B2
Left-hand multifunction oven control switch
B3
Left-hand multifunction oven base element
B4
Left-hand multifunction oven top element (outer
pair)
B5
Left-hand multifunction oven browning element
(inner pair)
B6
Left-hand multifunction oven fan element
B7
Left-hand multifunction oven oven fan
C
Clock
Code Description
D1
Right-hand fan oven thermostat
D2
Right-hand fan oven control switch
D3
Right-hand fan oven element
D4
Right-hand oven fan
F1
Oven light switch
F2
Oven lamp
H1
Ignition switch
H2
Ignition generator
I
Neon
J
Thermal cut-out
Code Colour
b
Blue
br
Brown
bk
Black
or
Orange
r
Red
v
Violet
w
White
y
Yellow
g/y
Green/yellow
gr
Grey
