When the Diameter value is correct, you are done inputting measurements.
17. Lower the Hood; the Wheel spins briefly.
18. When the Wheel stops, lift the Hood.

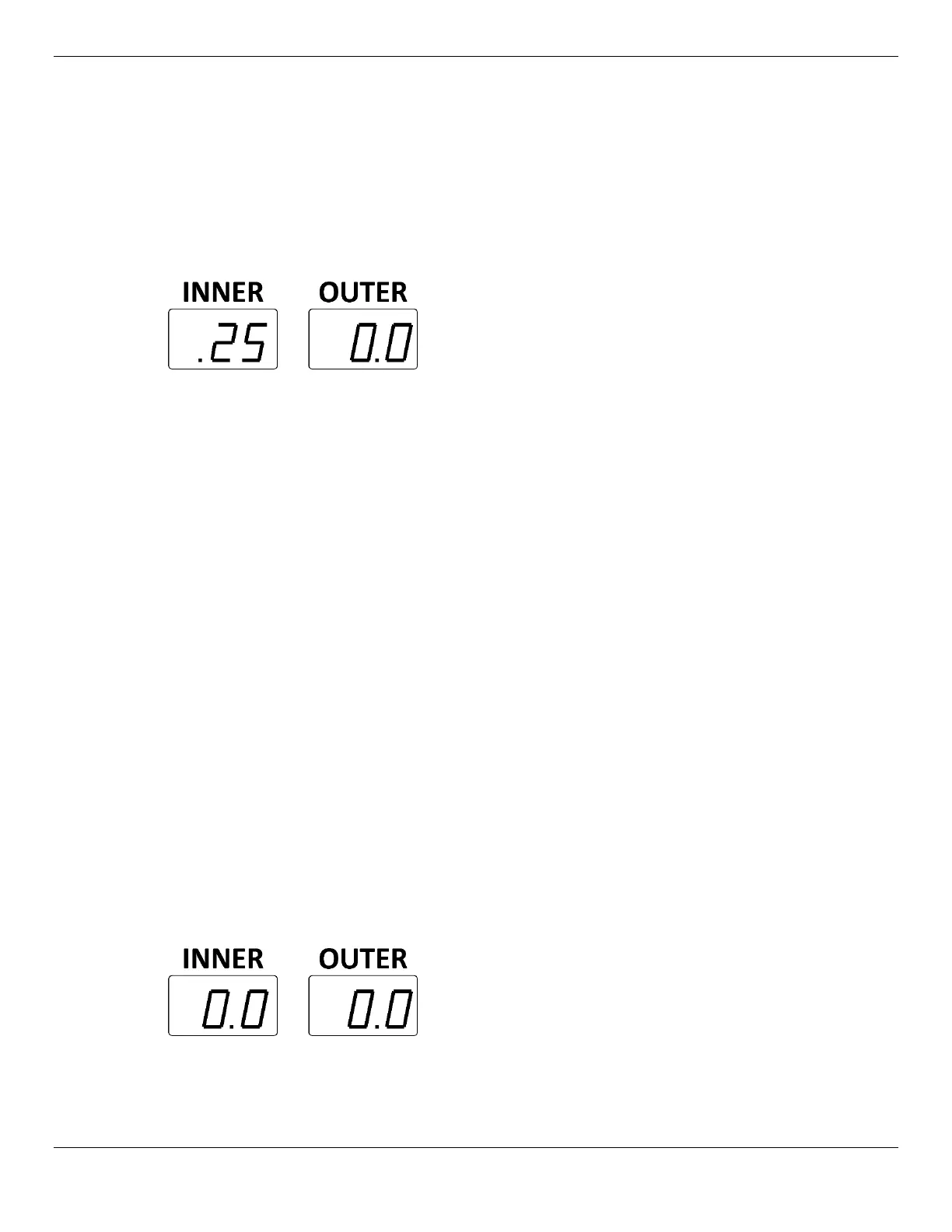

19. Check the value on the Inner Window.
– If the value is 00, you do not need to add Weight to the Inner Edge of the Wheel.
– If there is a value—.25, for example—you need to add that amount of Weight to the Inner
Edge of the Wheel.
20. To add Weight to the Inner Edge, find a Clip-On Weight of the correct amount and the Wheel
Weight Tool.
21. Turn the Wheel, watching the Indicators under the Inner Window.
The Indicators light up or go out as you move the Wheel.
22. When all of the Indicators go on, press the Brake Pedal to hold the Wheel at that position.
23. Add the Clip-On Weight at Top Dead Center on the Wheel (12 o’clock high) on the Inner Edge.
24. Release the Brake Pedal.
25. Check the value on the Outer Window:
– If the value is 00, you do not need to add Weight to the Outer Edge of the Wheel.
– If there is a value—.25, for example—you need to add that amount of Weight to the Outer
Edge of the Wheel.
26. To add Weight to the Outer Edge, find a Clip-On Weight of the correct amount and the Wheel
Weight Tool.
27. Turn the Wheel, watching the Indicators under the Outer Window.
The Indicators light up or go out as you move the Wheel.
28. When all of the Indicators go on, press the Brake Pedal to hold the Wheel at that position.
29. Add the Clip-On Weight at Top Dead Center on the Wheel (12 o’clock high) on the Outer Edge.
30. Release the Brake Pedal.
31. Lower the Hood to spin the Wheel again.
The Wheel is balanced when both the Inner and Outer Windows show 00.
It may take more than one time adding weights to get to 0.0 | 0.0.
