Initialsetupofcamerasandlenses
Whenyoufirstsetupthescanner,imagefromthecamerasmaynotbeinfocusorcan
betoobrightortoodarkduetodifferentexternallightingconditions.Adjustcamera

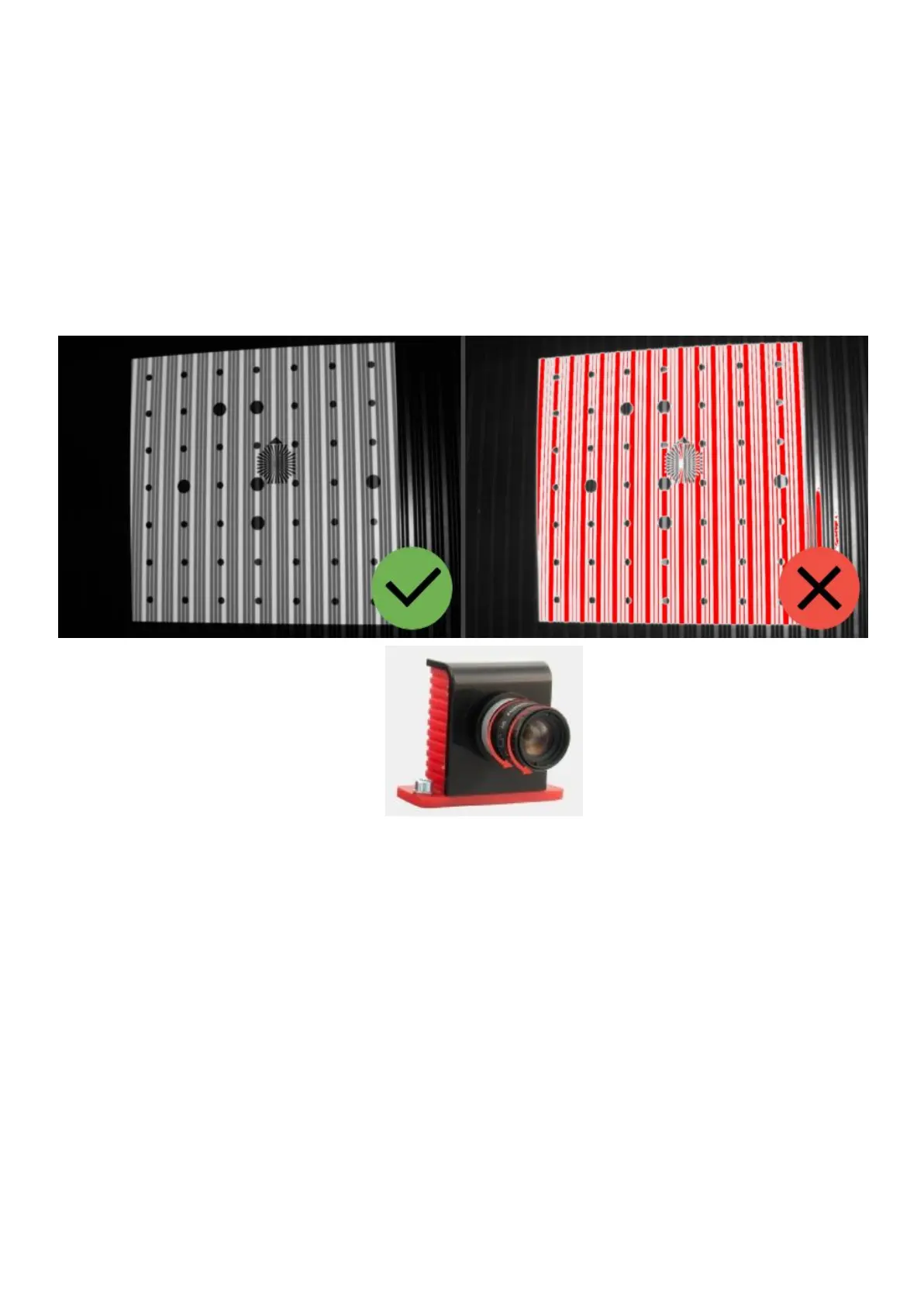

lenses,sothatthebrightnessisacceptable:withouttheredoverexposedareasandnot
toodark.

Lensadjustmentiscarriedoutbyrotatingtheringontheobjective.Loosen(donot
unscrew!)theretentionscrewandrotatethering.




Lensadjustmentiscarriedoutbythefollowingelements:

1. Theiristuningring
2. Theirisringretentionscrew
3. Thefocustuningring
4. Thefocusringretentionscrew

Donotcompletelyremovetheretainingscrewsofthelensrings,itisenoughjustto
loosenthem.Afteryoufinishedtuningthelens,locktheadjustmentringswiththe
screwsprovided.

 
