Rangevision SPECTRUM - Final Adjustments and Locking

If you are setting up the 3rd scanning area, it may be necessary to decrease the
brightness of lines and stripes due to the close distance to object. Decrease the

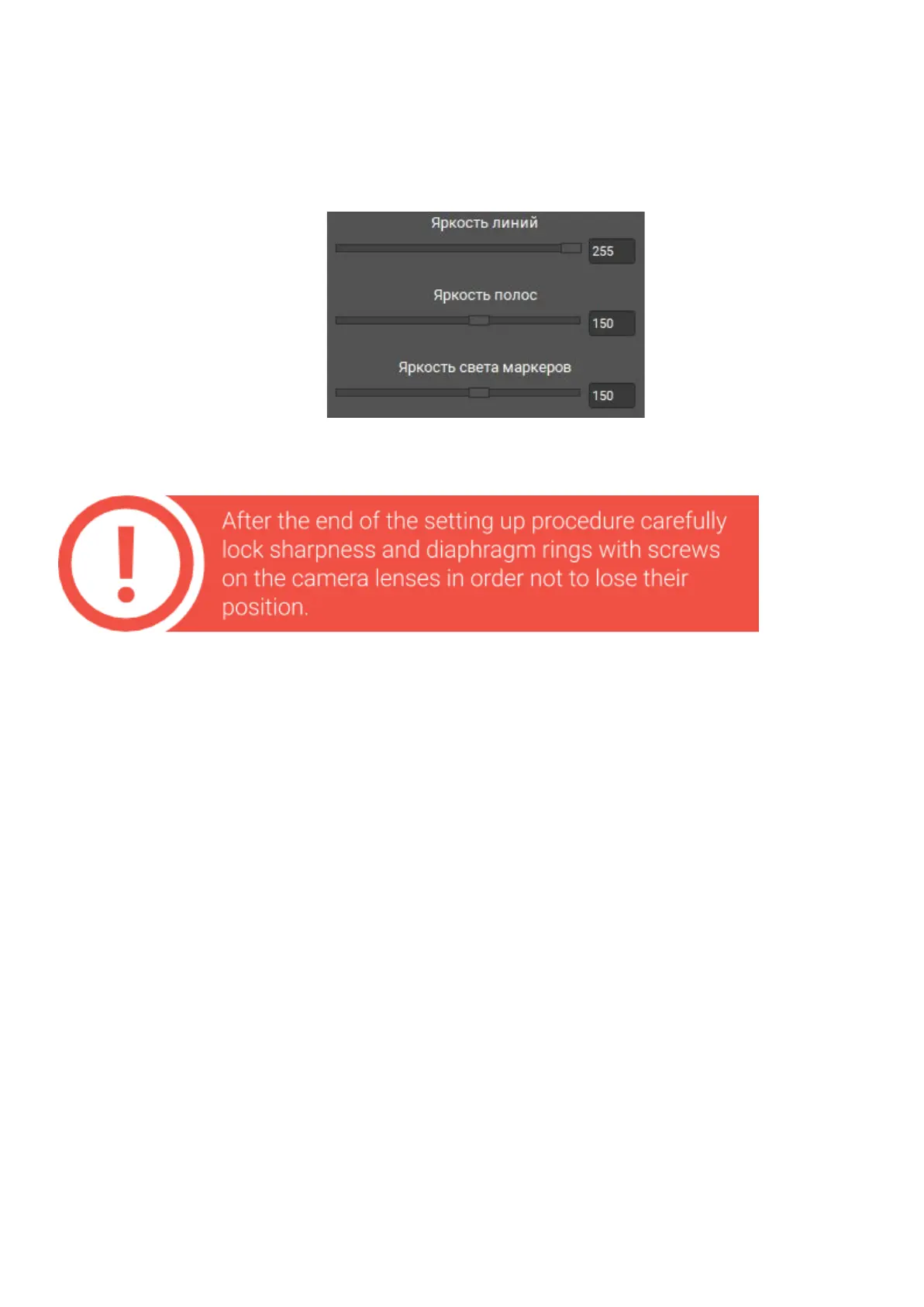

brightness value, as shown in the figure. Brightness value of lines is approximately 2
times greater than the brightness of the stripes. Visually lines and stripes must be the
same brightness.





Uponcompletionofallscanneradjustments,youshouldfulfilthefollowing conditions:

● camerasarepointedtoonepoint,locatedattheworkingdistancefromthe
scanner,
● atthesamedistancefocusedcamerasandimagefromtheprojector,
● atthestandardvaluesofelectronicexposure(30-60)imagefromthe
camerasisnotexcessivelybrightandnottoodark,
● alltheadjustmentandtheclampingscrewsaretightened.

 
