Ransomes 61 Super Certes - Assembly Instructions

en-7
INTRODUCTION 2
A
B
FIG 3

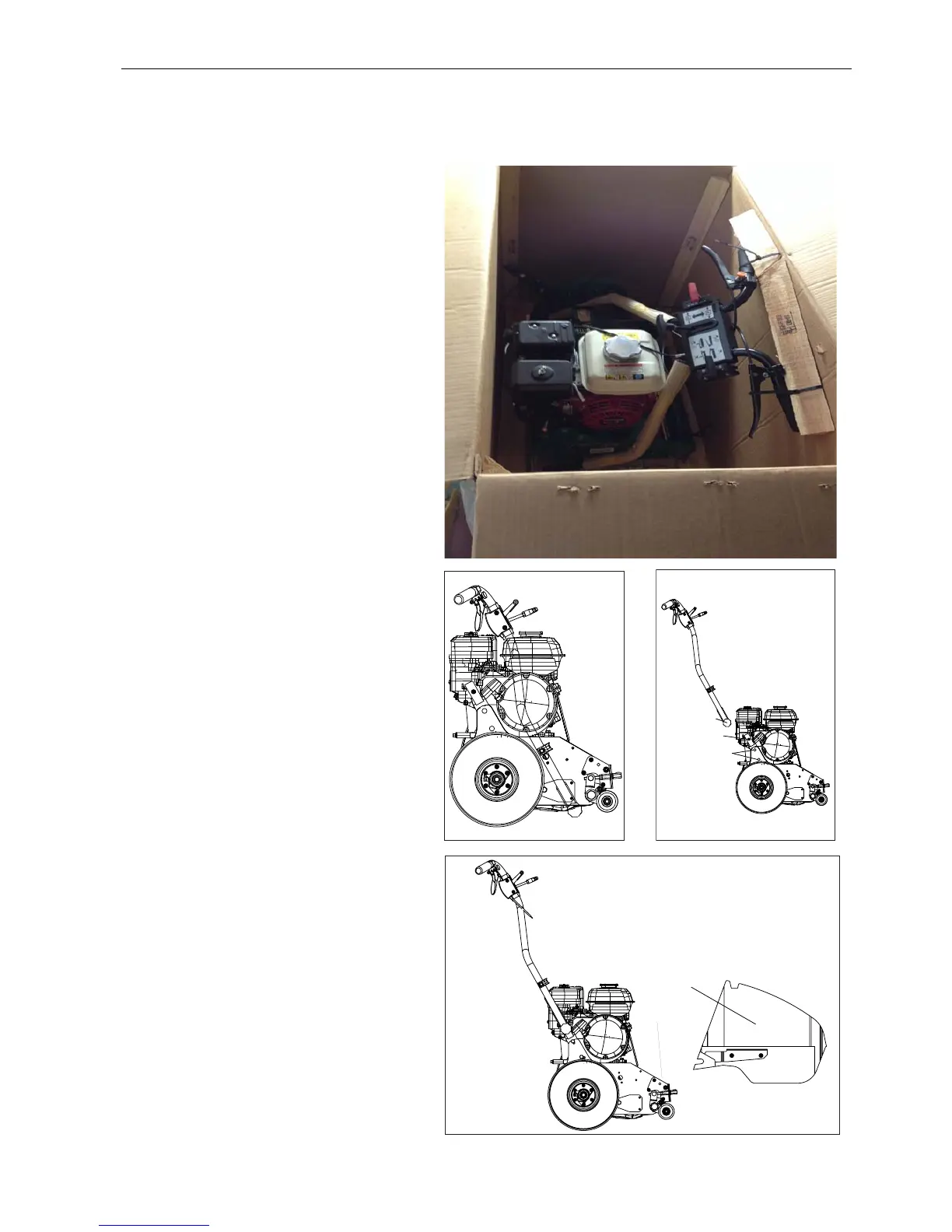

2.6 ASSEMBLY __________________________________________________________
The Mower is fitted to a container at the factory
and will need assembly before operation. Some
tools will be needed for assembly. Discard the
container according to the applicable local
environmental requirement.
Remove the mower from the container. The
handles are found around the chassis - Figure 1.
The handles engage on the lug shaft (A). A range
of height adjustment is available. Tighten the
hand wheel (C) The handles adjust for reach with
the bolts (B) - Figure 2.
The Grassbox (A) - Figure 3 engages on the
related lug (B).
Refer to the OPERATION Chapter before you
start the mower for the first time. Operators
MUST read through this manual and understand
the Safety Instructions, controls, lubrication and
maintenance procedures before any use the
Mower.
FIG 1
B
A
C
FIG 2
