Rascal Balance 600 B - Removing the Front Section; Illustration 12 and 13 - Removing Harness Connection and Frame Pin

Rascal 600B/700B Owner’s Manual
EMC Part: 19278100 Rev. 3 ◦ 06/29/2009
30
Removing the Front Section
CAUTION
• Carefully stand scooter upright onto rear bumper.
• Follow tiller harness to locate the harness connection. Disconnect
wiring harness at connector, as shown in Illustration 12.
• Remove harness from under harness guide and pull out the Quick-
Disconnect frame pin as shown in Illustration 13.
12 13

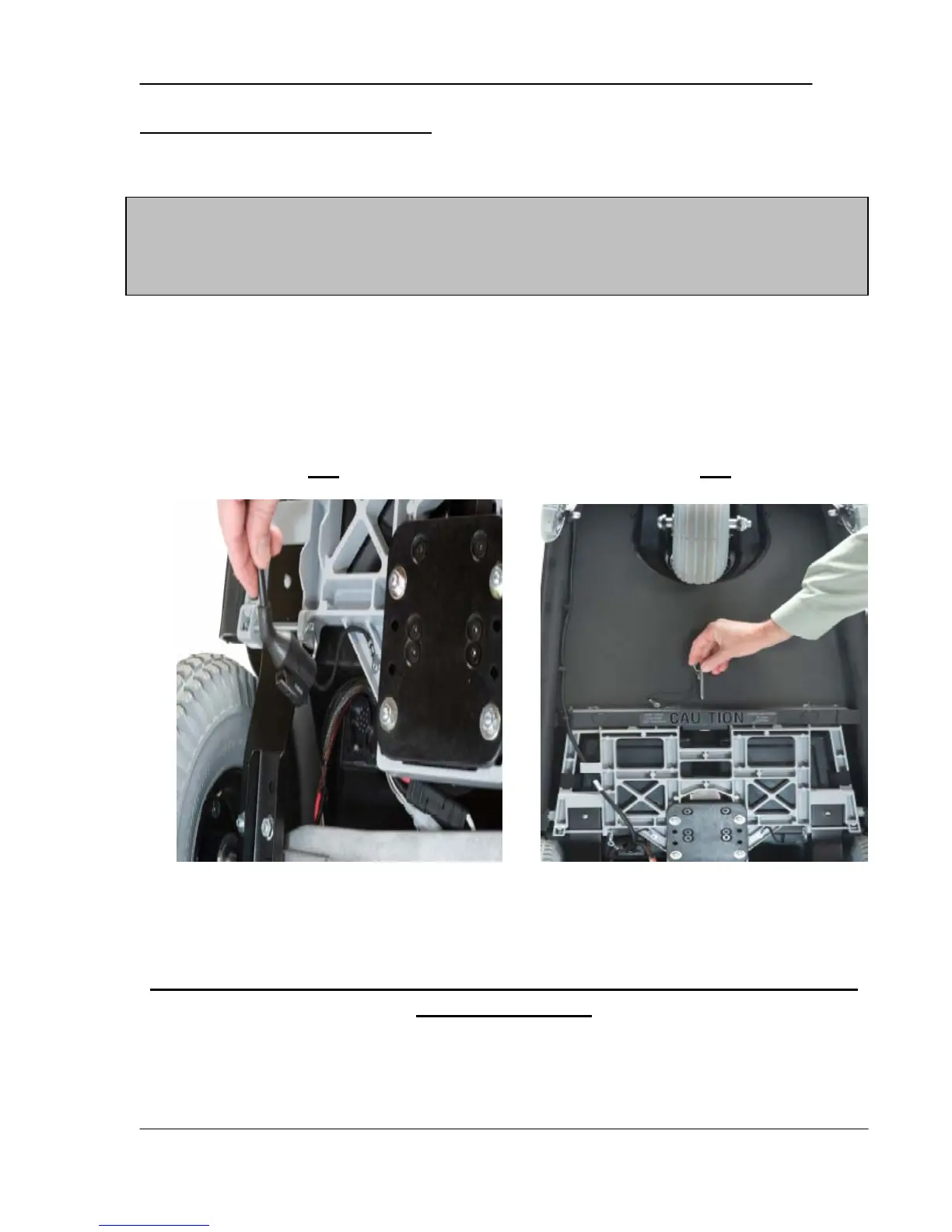

ILLUSTRATIONS 12 & 13 – Removing Harness Connection
and Frame Pin
Always make sure the Velcro battery tie down strap is connected or batteries are
removed before standing vehicle upright onto the rear bumper.
