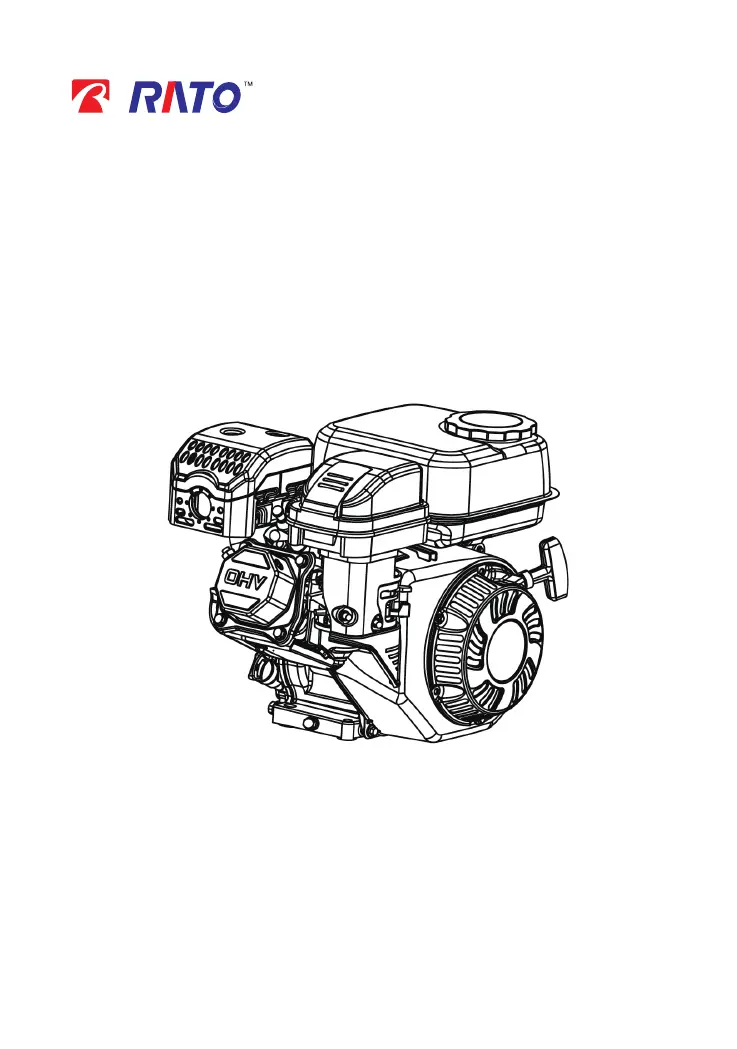

212cc Horizontal Shaft
Gasoline Engine
60-7559-6
Owner’s Manual
Toll Free Helpline: 1-866-567-4089
For Use on
PRESSURE WASHER/ CEMENT MIXER/ COMPRESSORS/ MOWERS/ LOG
SPLITTERS/ VACUUMS/ TILLERS/ WATER PUMPS/ CHIPPERS/ SHREDDERS/
GENERATORS/ BLOWERS
*Check with application manufacturer for product compatibility
Before using the Engine for the first time, read through this instruction manual
carefully.
Keep for future reference, do not throw away.
Version 2

Table of Contents

Questions and Answers

  • N
    Nicholas GilbertAug 3, 2025
    What to do if my Rato Gasoline Engine is overheating?
    • R
      Rebecca FloresAug 3, 2025
      If your Rato gasoline engine is overheating, consider these potential causes: * Check the oil level and refill engine oil if it is insufficient. * Clean the exhaust pipe if it is blocked. * Repair any damage if the shroud is leaking. * Clear any foreign matter blocking the cooling fins. * Reinstall the cooling fan securely if it is loose. Other possible issues include a deformed connection rod (replace it), worn cylinder, piston, or piston ring (replace the worn parts), improper adjustment of the engine governor (readjust it), or a burnt-out crankshaft main bearing (replace the main bearing).
  • D
    Debra ReynoldsAug 20, 2025
    Why does my Rato Engine have abnormal cylinder compression?
    • B
      briana23Aug 20, 2025
      Abnormal cylinder compression in a Rato Engine can be attributed to several issues. The piston ring might be worn to or over its wear limit, necessitating replacement. A broken piston ring also requires replacement. If the piston ring is sticking, clear up carbon fouling. Ensure the spark plug is installed tightly with a gasket. Check for air leakage between the cylinder block and cylinder head, inspecting the cylinder gasket and the flatness of the contacting surfaces. Finally, check for air leakage in the valves, assessing their clearance and tightness, and repair if necessary.
  • J
    Jennifer RobinsonOct 24, 2025
    How to fix a Rato 212cc that is difficult to start?
    • C
      Christine JohnsonOct 24, 2025
      If your Rato Engine is hard to start, several factors could be the cause. Check the fuel system by filling the fuel tank and opening the fuel cock. Ensure the air vent in the fuel filler cap isn't clogged by dredging it. Also, inspect the fuel cock for clogs and clean it. Other potential issues include an improper or clogged main oil flow hole (readjust or clean it), a needle valve that isn't closing properly or a clogged start hole (dismantle and repair the needle valve, then clean the hole). The float may be damaged or sticking, requiring repair. The fuel might be too filthy or deteriorated, or there might be water in the fuel, necessitating replacement. Too much fuel in the engine can also cause problems, so drain the extra fuel and dry the spark plug electrodes. Ensure you're using the...
  • J
    jill11Oct 28, 2025
    Why is my Rato Gasoline Engine not producing enough power?
    • D
      David ThomasOct 28, 2025
      If your Rato gasoline engine isn't providing sufficient power, there could be several reasons. Start by checking the fuel line for air or clogs; exhaust any air or dredge the fuel line. Ensure the main oil flow hole is properly adjusted. Clean the needle valve hole and main oil flow hole in the carburetor if they are clogged. If the fuel cock is clogged, clean it and replace any damaged parts. Also, too much carbon deposit in the combusting chamber, muffler, and exhaust pipe can reduce power, so clear it away. Clean the air cleaner filter element if the air cleaner is clogged. If the intake pipe is leaking, repair or replace it. A worn piston, cylinder, or piston ring can also cause power loss, so replace the worn parts. Air leakage from the surface where the cylinder block contacts the cy...
  • H
    hprinceNov 6, 2025
    Why is my Rato Gasoline Engine running unsmoothly?
    • M
      Melissa MitchellNov 6, 2025
      An unsmoothly running Rato gasoline engine can stem from several issues. Excessive wear on the piston, cylinder, or piston ring may be the cause, requiring replacement of the worn parts. Similarly, worn piston pins and piston pin holes necessitate replacing the piston or piston pin. A worn tie rod small head also calls for tie rod replacement. If the roller bearing for the crankshaft main shaft is worn, replace it. Other potential causes include the engine running too hot (shoot trouble), too much carbon deposit in the combustion chamber (clear away), improper gasoline brand or low gasoline quality (replace with qualified gasoline), water in the float chamber (clean it), or improper spark plug electrodes clearance (adjust it). Finally, issues with the induced coil may be the problem, so ch...
  • M
    Megan GreerNov 11, 2025
    What should I do if my Rato 212cc Engine stops suddenly while running?
    • C
      chad18Nov 11, 2025
      If your Rato engine stops suddenly while running, several issues could be the cause. First, check if the fuel is finished and refill if necessary. If the carburetor is clogged, check the fuel line and dredge it. A leaking float should be repaired, and a stuck needle valve requires dismantling the float chamber to eliminate the issue. A punctured spark plug or one short-circuited by carbon deposit needs replacement, as does a spark plug with a side electrode that has dropped out. If the high-tension wire has dropped out, weld it back on. An ignition coil that is punctured or short-circuited also requires replacement. Check if the parking wire is located on the engine body and insulate it if found. Lastly, serious scoring of the cylinder or a valve dropping out requires repairing or replacin...
  • T
    Tabitha HarrisNov 15, 2025
    Why is there abnormal noise when my Rato 212cc Engine is running?
    • R
      rodriguezsamuelNov 15, 2025
      Abnormal noise during Rato engine operation can arise from various factors. Worn pistons, piston rings, or cylinders necessitate replacing the worn part. Similarly, worn connection rods or piston pins and piston pin holes require replacing the worn part. A worn crankshaft main neck requires bearing replacement. A broken piston ring should be replaced. Excessive carbon deposit in the combusting chamber should be cleared away. If the electrode clearance of the spark plug is too small, adjust it properly. If there is too much fuel in the engine, check relative parts such as the carburetor. Using an improper fuel brand requires replacing the fuel. If the engine is overheating, find the cause and eliminate it. Improper valve clearance requires readjustment. Lastly, ensure the flywheel is tightl...

Summary

Preface

Safety Messages

Safety Precautions

Parts Description

Pre-Operate Inspection

Engine Oil Check and Specifications

Details engine oil type, viscosity, level check, and capacity for pre-operation.

Air Cleaner Maintenance and Inspection

Guide to checking and cleaning the air cleaner element for optimal engine performance.

Fueling Guidelines and Capacity

Instructions on refueling, fuel level checks, and fuel tank capacity.

Starting the Engine

Fuel Cock and Choke Lever Operation

Steps for setting the fuel cock and choke lever correctly before starting the engine.

Governor Lever and Recoil Starter Usage

Instructions for adjusting the governor lever and using the recoil starter mechanism.

Running the Engine

Engine Operation with Choke and Throttle

How to adjust the choke and throttle levers for proper engine speed and operation.

Understanding the Engine Oil Alarm

Explanation of the engine oil alarm system and its function to prevent damage.

High Altitude Operation Adjustments

Guidance on performance adjustments and considerations for operating at high altitudes.

Stopping the Engine

Standard Engine Stopping Procedure

Steps for safely stopping the engine during normal operation.

Emergency Engine Shutdown

Procedure for stopping the engine quickly in emergency situations.

Exhaust Control System

Exhaust System Maintenance

Importance of periodic maintenance for maintaining standard exhaust emissions.

Troubleshooting Exhaust Emissions

Common problems affecting exhaust emissions and recommended actions.

Maintenance

Engine Maintenance Schedule

A schedule detailing periodic service and adjustments for optimal engine health.

Engine Maintenance Procedures

Detailed methods for performing engine maintenance tasks, including oil changes.

Spark Plug Service and Specifications

Instructions for inspecting, cleaning, gapping, and replacing spark plugs.

Transport and Storage

Safe Engine Transport Guidelines

Instructions for safely transporting the engine, including fuel cock position.

Proper Engine Storage Procedures

Steps for storing the engine properly when not in use for extended periods.

Troubleshooting

Troubleshooting Engine Starting Issues

Common causes and remedies for difficult engine starting with recoil starter.

Diagnosing Low Power Output

Solutions for issues causing reduced engine power or stopping.

Resolving Unsmooth Engine Running

Addressing causes of knocking, abnormal combustion, and spark issues.

Troubleshooting Sudden Engine Stoppage

Identifying reasons why the engine stops suddenly during operation.

Diagnosing Engine Overheating

Causes and solutions for engine overheating issues.

Troubleshooting Abnormal Engine Noise

Identifying and fixing causes of beating sounds and metal noises.

Specifications

212 cc Engine Specifications

Key technical data for the 212cc engine, including dimensions and power.

Torque Specifications for Key Bolts

Torque values for critical bolts during assembly or maintenance.

Electric Diagram

Parts List and Diagram

Engine Assembly Diagram

Visual representation of engine components and their assembly order.

Engine Parts List and Descriptions

A comprehensive list of engine parts with their descriptions and quantities.

Ordering Replacement Engine Parts

Information on how to order replacement parts, including contact details.

Limited Warranty

Rato 212cc Specifications

General IconGeneral
Engine TypeSingle Cylinder, 4-Stroke, OHV
Displacement212cc
Bore x Stroke70 mm x 55 mm
Compression Ratio8.5:1
Starting SystemRecoil Start
Fuel TypeUnleaded Gasoline
Cooling SystemAir-cooled
Oil Capacity0.6 L (0.63 US qt)
Weight16 kg
