INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB

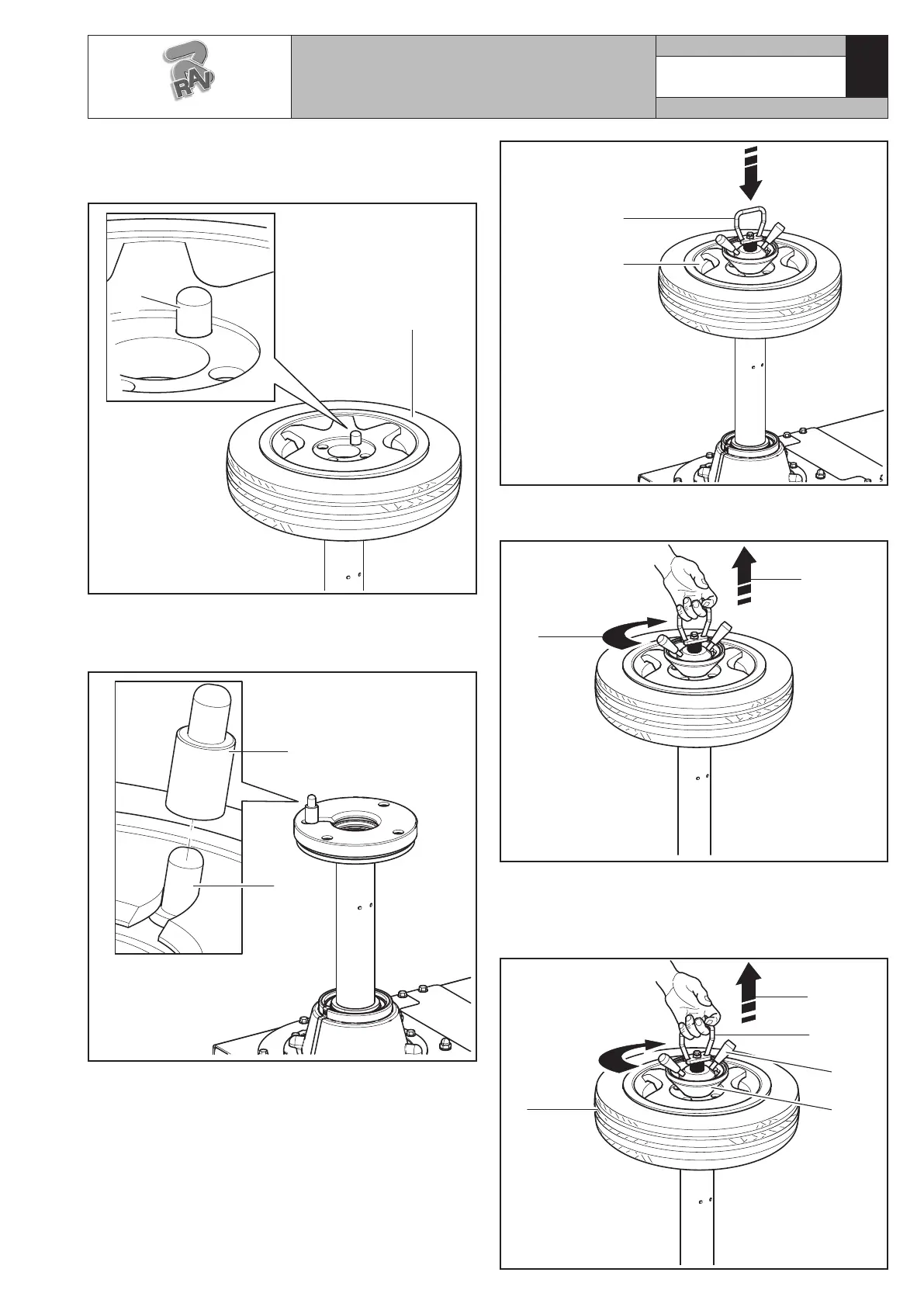

2. Dowel the wheel (Fig._17 ref._1) on the locking
platform and check that the dragging pin (Fig._17
ref._2) enter in a hole placed on the rim hub.
2
1
Fig._17
3. If the wheel hub is higher then the dragger (Fig._18
ref._2), use the extension (Fig._18 ref._1) supplied
on issue.
1
2
Fig._18
4. Insert the shaft complete with cone (Fig._19 ref._1)
on the rim (Fig._19 ref._2).
1
2
Fig._19
5. Turn through 90° (Fig._20 ref._1) and lift the shaft
(Fig._20 ref._2) in order to hook it inside the hole.
2
1
Fig._20
6. Keeping the shaft lifted (Fig._21 ref._1) through the
handle provided (Fig._21 ref._2), rotate the ring nut
(Fig._21 ref._3) up to the complete tightening of the
cone (Fig._21 ref._4) on the wheel (Fig._21 ref._5).
1
2
3
4
5
Fig._21
G1180.30SLIM - G1180.30SLIMIT
7105-M002-10_R
RAVAGLIOLI S.p.A.
