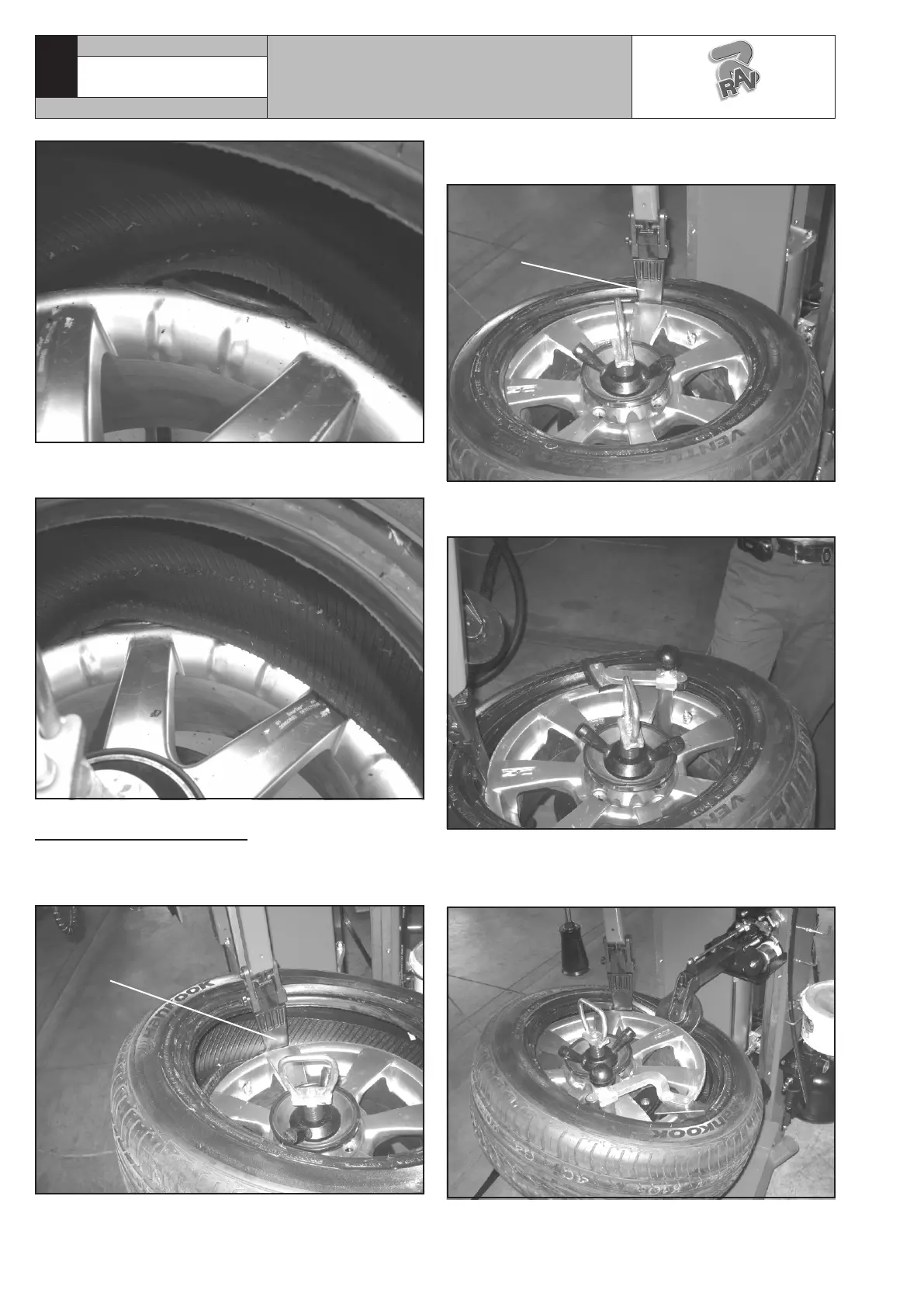

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
4. Then, position the upper bead on the tool assembly
area (Fig._39 ref._1).
1
Fig. 39
5. Assemble the extension with entrainer near the edge
rim (see Fig._40).
Fig. 40
6. Lower the upper bead breaker roll so that the tyre
bead is kept at the same height of the rim groove
(see Fig._41).
Fig. 41
Fig. 36
3. Then, rotate and complete bead disassembly (see
Fig._37).
Fig. 37
12.6 Mounting the tyre
1. Lubricate the tyre’s beads.
2. Position the tool (Fig._38 ref._1) onto the rim edge.
1
Fig. 38
3. Hook the lower bead on the tool then rotate clock-
wise until the complete assembly.
7105-M002-10_R
RAVAGLIOLI S.p.A.
G1180.30SLIM - G1180.30SLIMIT
