INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB

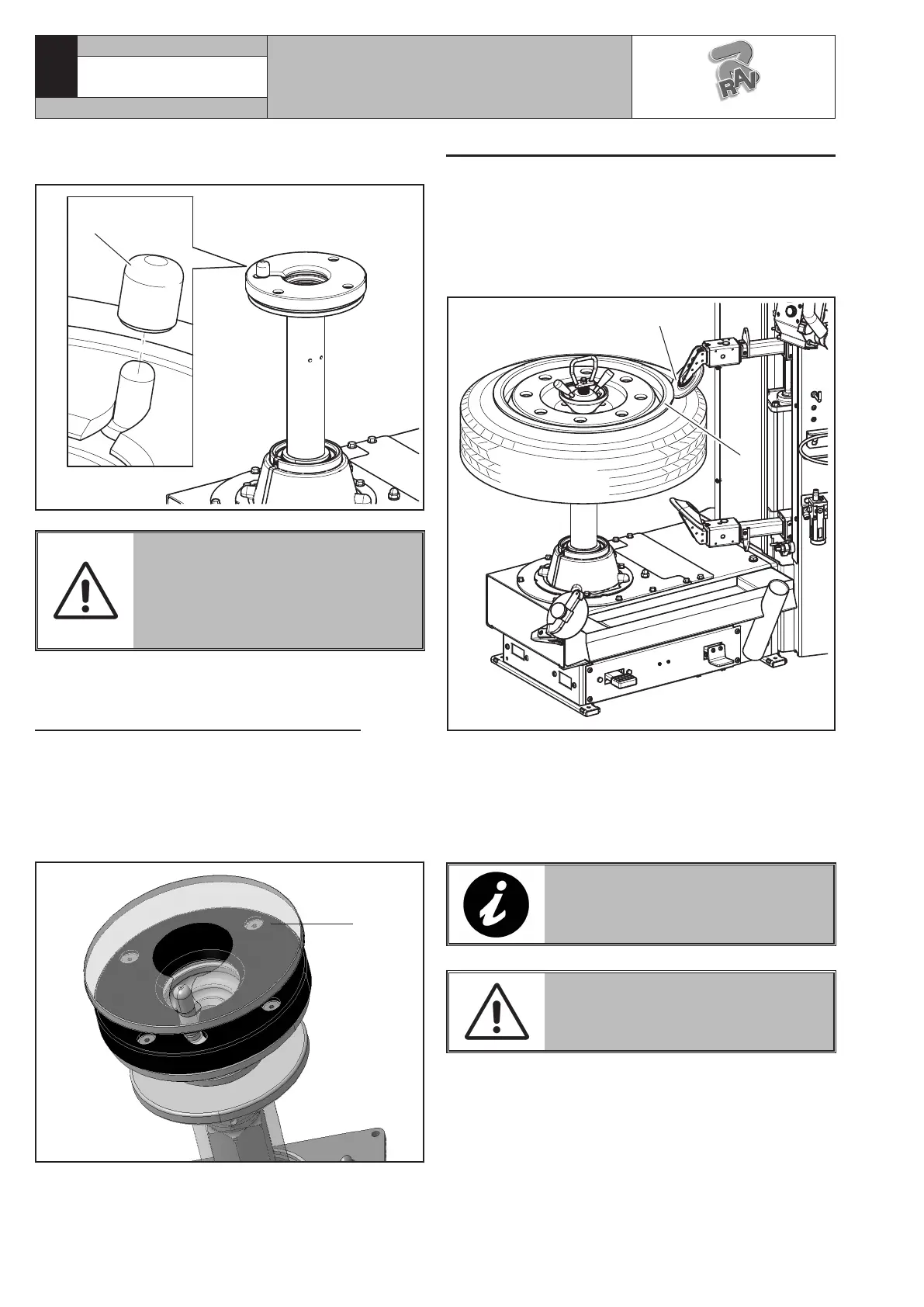

7. For wheels with alloy rims, use the proper plastic
guard (Fig._22 ref._1).
1
Fig._22
NEVER LEAVE THE WHEEL FIT-
TED ON THE MACHINE FOR A
PERIOD LONGER THAN NECES-
SARY FOR CARRYING WORK AND
IN ANY CASE NEVER LEAVE IT
UNATTENDED.
To release the wheel, carry out the previously opera-
tions on the contrary way.
12.3.1 Reverse wheel pan protection
In case of use of reverse wheels, to protect the rim,
apply on the rubber platform a protection made of
a transparent plastic material available on demand
(Fig._23 ref._1). We suggest a constant replacement
of it and in any case if there are visible damages (see
Fig._23).
1
Fig._23
12.4 Bead breaking through vertical rollers
1. After having clamped the wheel, move the upper
bead breaker roll close (Fig._24 ref._2) to the rim
edge (Fig._24 ref._1), pressing push button (Fig._13
ref._F2).
2. Establish the tools diameter (rolls and tool) with
the help of push button L and of lever M.
2
1
Fig._24
3. Keep on approaching, activating wheel clockwise
rotation (see Fig._25) pushing the pedal (Fig._14
ref._A) and at the same time activate the push
button (Fig._13 ref._F2), keeping it pressed until
there's room enough for the roll to progress with
the cam.
THE BEADING DISC MUST EXERT
PRESSURE ON THE TYRE BEAD
BUT NEVER ON THE RIM.
USE VERY CAREFULLY THE VER-
TICAL BEAD BREAKING ROLLERS
IN ORDER TO AVOID POSSIBLE
HANDS CRUSHING.
7105-M002-10_R
RAVAGLIOLI S.p.A.
G1180.30SLIM - G1180.30SLIMIT
