o Indicate the height of the column expressed in mm.
o Command in progress (example)
(Up, Up Single, Down, Down Single, Slow Down,
Slow Down Single, Park)
Command in progress (Up, Single aup, Down,
Single down, Slow down,
Slow single down, Park)
o Mode (All power lifts - Power lift groups)
(All, Group)
o Cart at maximum height (Max Height)
o Carts at stroke end descent (Ground)
o Successful park (Parking on)
o Failed park (Parking ko)
o Foot guard function
During descent the carts stop at approximately 350
mm from the ground. Release the button and press it
again, an audible signal shall be activated for danger
of crushing and foot guard function; at the same time
the carts complete the descent.

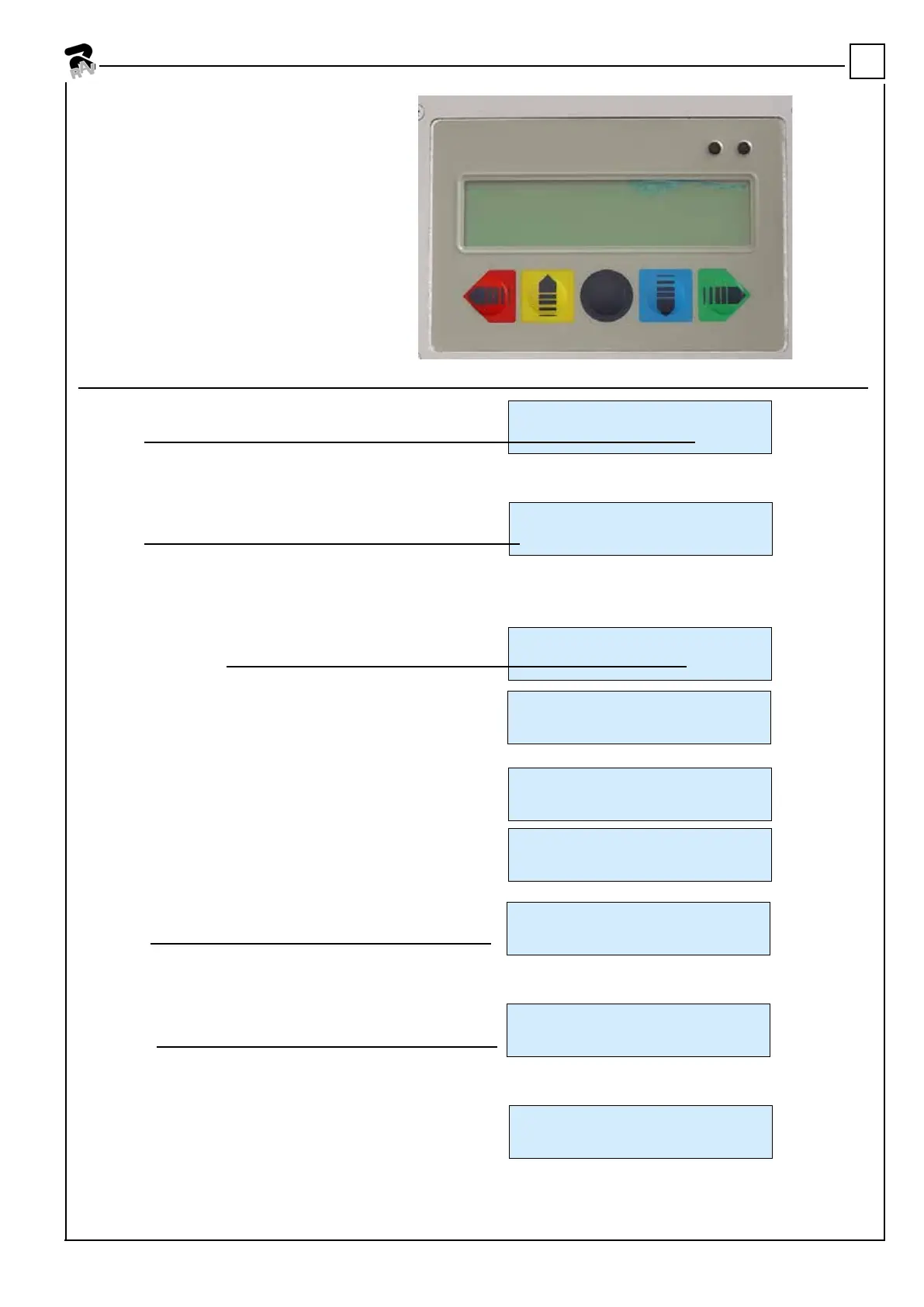

8.2 Signals list
D
N P
H e i g h t 1 1 1 1 mm
A L L
H e i g h t 1 1 1 1 mm
U P S I N G L E
H e i g h t 1 1 1 1 mm
A L L
H e i g h t 1 1 1 1 mm
G R O U P
MAX H e i g h t 1 7 9 7 mm
A L L
H e i g h t 1 1 1 1 mm
P A R K I N G O N
H e i g h t 1 1 1 1 mm
P A R K I N G K O
H e i g h t 0 0 0 0 mm
G R O U N D A L L
H e i g h t 0 3 5 0 mm
W A R N I N G F O O T
0526-M002-3
