Glass cleaning
With a cold stove, clean the glass with a cloth and glass cleaner.
Note: there are stove glass cleaning products available on the market.
Combustion chamber cleaning
To clean the ash drawer, proceed as follows:
step action
1
The stove requires a simple yet frequent cleaning in order to guarantee suitable yield and regular operation. Vacuum the
combustion chamber every day using a bin ash vacuum, making sure that the ashes are completely cold.
Cleaning the pellet tank
To clean the pellet tank, proceed as follows:
step action
1 Periodically remove the wood sawdust accumulated on the bottom of the tank, using a vacuum cleaner.
Extraordinary maintenance
⚠ Extraordinary maintenance activities must be carried out by staff from the Authorised Assistance Centre.
⚠ Do not wait for components to be deteriorated by use before proceeding with their replacement. Replace a worn component
before it is completely broken to prevent any damage caused by sudden component breakage.
PARTI/ FREQUENZA 1 STAGIONE
Deep combustion chamber cleaning
•
Door gasket
•
Chimney
•
Smoke conduit
•
Schedule the above extraordinary maintenance activities with the Authorised Assistance Centre.

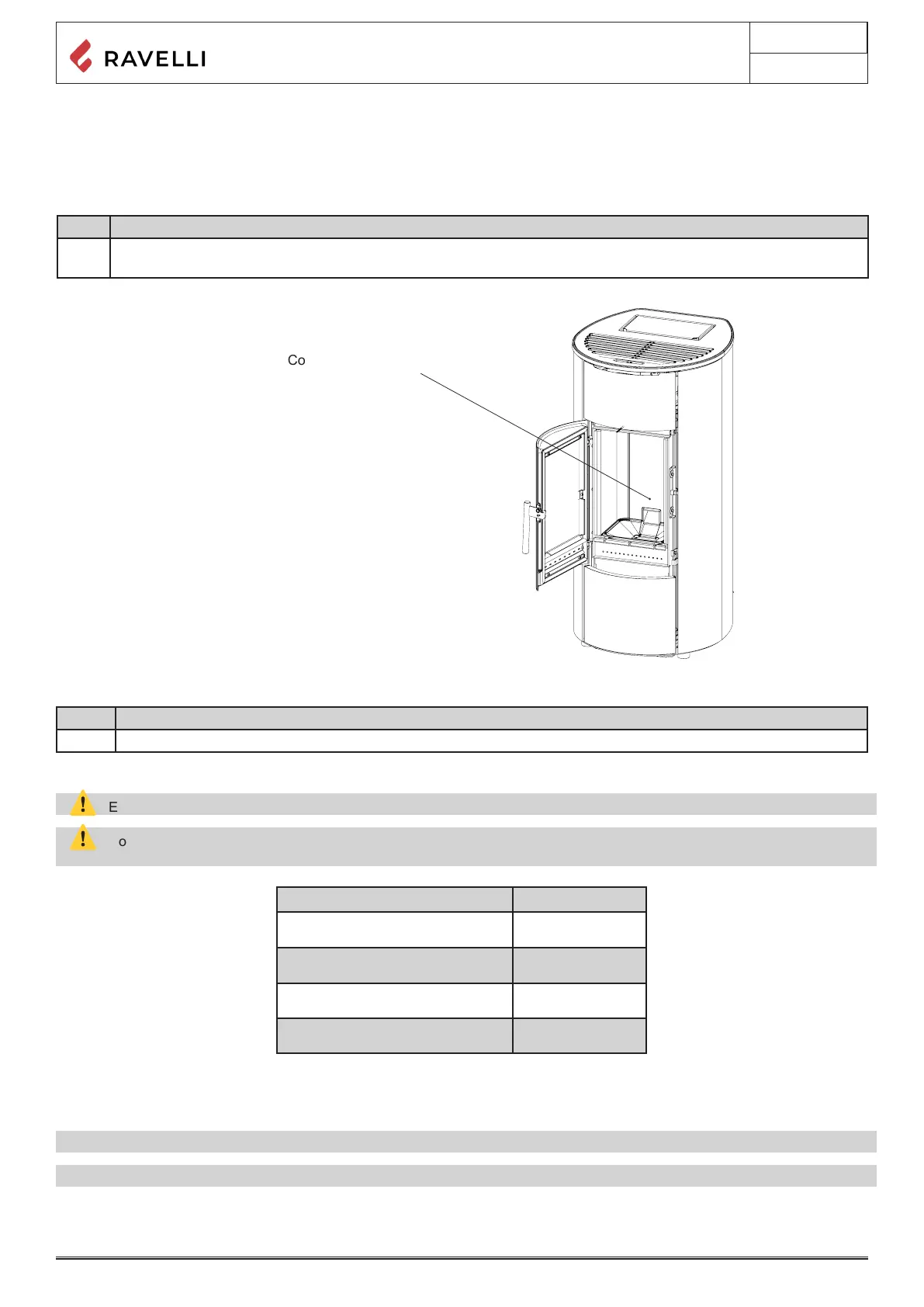

Deep combustion chamber cleaning
📌This operation must be carried out by a Ravelli Assistance Centre.
📌Schedule this type of cleaning with the Ravelli Assistance Centre.
To clean the combustion chamber, proceed as described below:
After cleaning the combustion chamber, it is advisable to proceed with the cleaning of the inspection hatches as indicated in the para-
graph “Smoke duct cleaning”.
