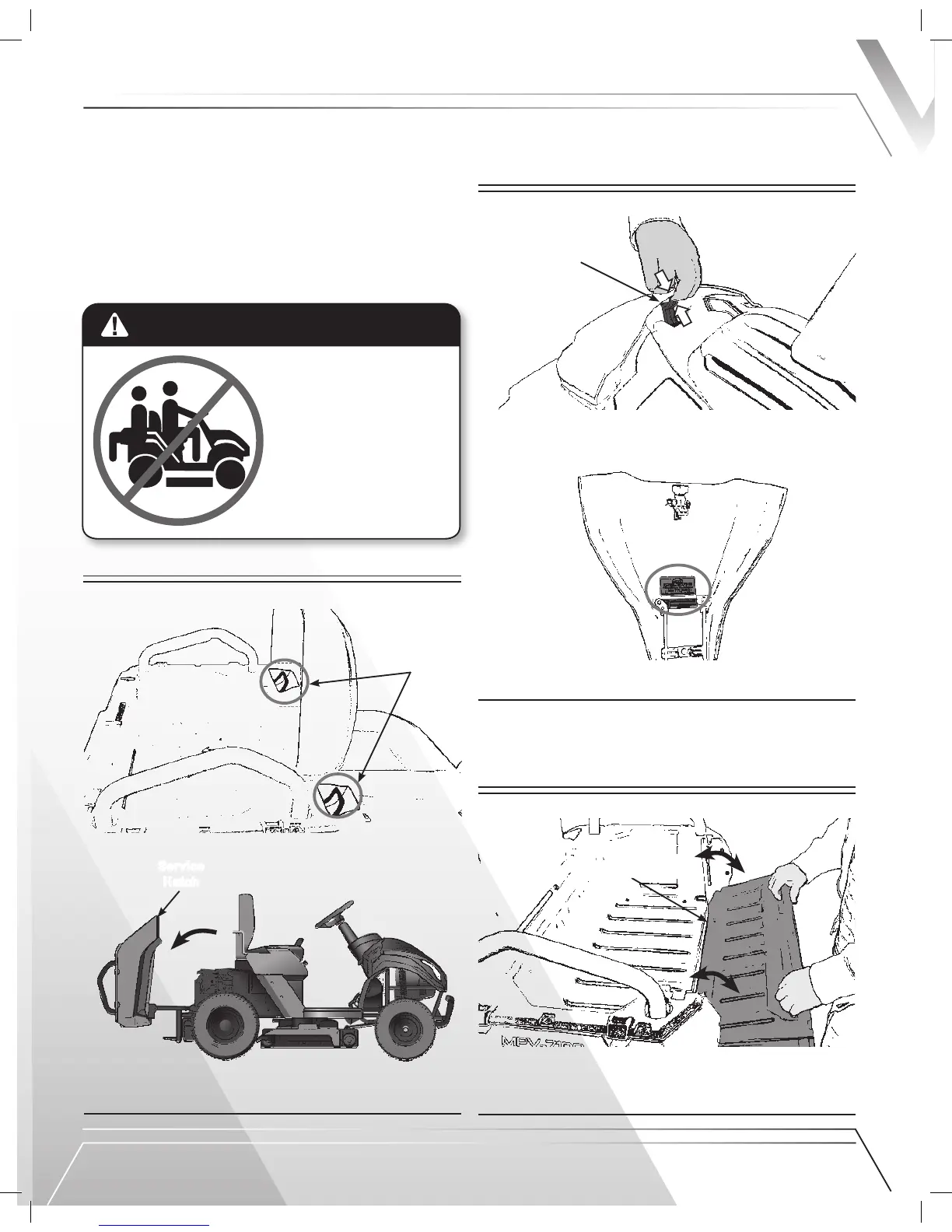

Service Hatch
Pull back on the service latches, then rotate the hatch down to
open.
Opening the Hood
Squeeze the latch and lift the hood to open. Squeeze and hold the
latch, then press down on the hood to close.
The customer service phone number and web address of on-line
videos are located on the underside of the hood.
Using the Tailgate
a. Grasp the center of the tailgate and pull upwards.
b. When the tailgate slides up, pull backwards and rotate down.
c. Reverse the process to close.
RAVEN MPV-7100/7100S OWNER’S MANUAL
Service Controls and Features
Service Access
Access to the engine, oil ll and choke is located under the
service hatch.
NOT E: This is not a dump cart. The service hatch hinges
back for maintenance access only.
Hood
Open the hood for access to the fuel tank. Hold the latch,
close the hood and push down until a click is heard to close.
Features
WARNING!
DO NOT ALLOW
ANYONE TO RIDE ON
THE SERVICE HATCH.
Service Hatch weight
limit is 75 lbs (34 kg).
Tailgate Function
The MPV comes with a removable tailgate, which also
lowers for easy access.
16
Se r v i c e
La t c h e s
H o o d La t c h
Se r v i c e
H a t c h
T a i l g a t e
