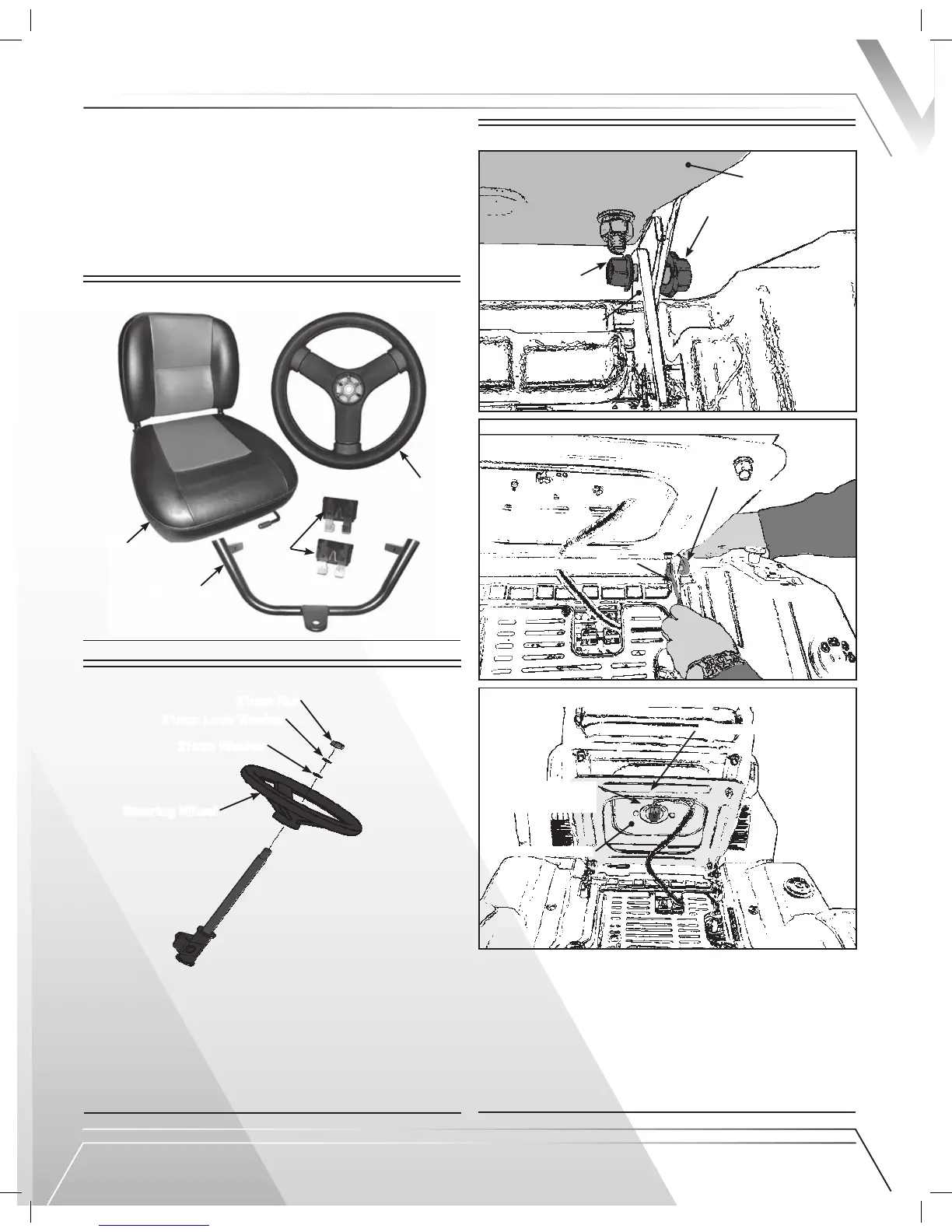

Install the Steering Wheel
a. Locate the steering wheel and steering wheel hardware packet.
b. Ensure that the front wheels are pointing forward and slide
steering wheel onto the steering spindle, making sure that the
steering wheel spoke between the hub connectors is centered
and pointing towards the operator.
c. Slide the 21mm lock washer onto the steering spindle.
d. Install the 21mm nut to secure the steering wheel.
Install the Seat
a. Place the seat on the unit and line up the holes on the seat
hinge with those on the unit.
b. Install the two M8 x 25mm anged shoulder bolts and lock-nuts
in the seat hardware pack and hand tighten.
c. Lift the seat. Do not remove the black foam inside the seat
springs. Tighten with a 12mm wrench for the nuts and a 13mm
wrench for the bolts.
d. Connect the safety switch harness to the bottom of the seat.
e. Lower the seat into place.
List of Parts
RAVEN MPV-7100/7100S OWNER’S MANUAL
I NI T I AL SET -UP
You will need the following tools to assemble the MPV:
• 12mm wrench
• 13mm wrench
• 21mm socket & ratchet wrench
• adjustable wrench
IntroduCtIon
8
St e e r i n g Wh e e l
2 1m m Nu t
M8 B o l t
13 m m Wr e n c h
Sw i t c h H a r n e s s
Se a t Pa n
2 1m m Lo c k Wa s h e r
M8 Nu t
St e e r i n g
Wh e e l
Se a t
T o w B a r
3 0A
F u s e s
Se a t H i n g e
12 m m Wr e n c h
Se a t H a r n e s s
Pl u g
2 1m m Wa s h e r
Se a t Pa n
To Next Page
