Front to Rear Adjustment
a. The brake adjustment is located on top of the rear axle on the inboard side of each wheel.
b. Tighten or loosen each adjuster equally by adjusting one and then the other to ensure even wear. Use a 14mm wrench to turn
clockwise to tighten, and counterclockwise to loosen.
c. Turn each adjuster only ½ turn at a time and check the brakes to see if further adjustment is required.
d. Check the brakes by driving at a low speed and pressing the brakes to come to a complete stop. Brakes are properly adjusted when
wheels are able to spin freely AND the MPV comes to a complete stop when the brake pedal is pushed.
WWW. RAVENAMERI C A. C OM
Brake Adjustment
If the MPV does not come to a complete stop when the brake pedal is pressed or if the rear wheels are able to roll while the
parking brake is engaged, the brakes are not functioning properly and need adjustment. Follow the steps below for minor
adjustments. If you suspect there is damage to the brake system, immediately contact support at 1-888-321-5700.
servICe & MaIntenanCe
DO NOT SHORT THE BATTERY TERMINALS BY ALLOWING ANY METAL OBJECTS TO CONTACT BOTH
TERMINALS AT ONCE. REMOVE ALL METAL JEWELRY BEFORE CONNECTING THE BATTERY. THE POSITIVE
TERMINAL MUST BE CONNECTED FIRST TO PREVENT SPARKING FROM ACCIDENTAL GROUNDING.
Batteries
Your MPV is equipped with one 12 volt starter battery and one 48 volt battery pack. The 48 volt battery pack is sufcient
for normal use and requires no maintenance. Do not attempt to open or remove the covers. The battery may require
charging when it is activated for the rst time or after the MPV has not been used for a long period of time. Do not let the
unit sit idle for more than 3 months. After 3 months, the batteries will slowly discharge. This discharge cycle reduces the
lifespan of the batteries.
WARNING!
BATTERY POSTS, TERMINALS AND RELATED ACCESSORIES CONTAIN LEAD AND LEAD COMPOUNDS,
CHEMICALS KNOWN TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WASH
HANDS AFTER HANDLING. USE A WRENCH WRAPPED IN INSULATING TAPE TO AVOID ACCIDENTAL
SHORTING BETWEEN THE NEGATIVE AND POSITIVE BATTERY TERMINALS.
3 9
A B

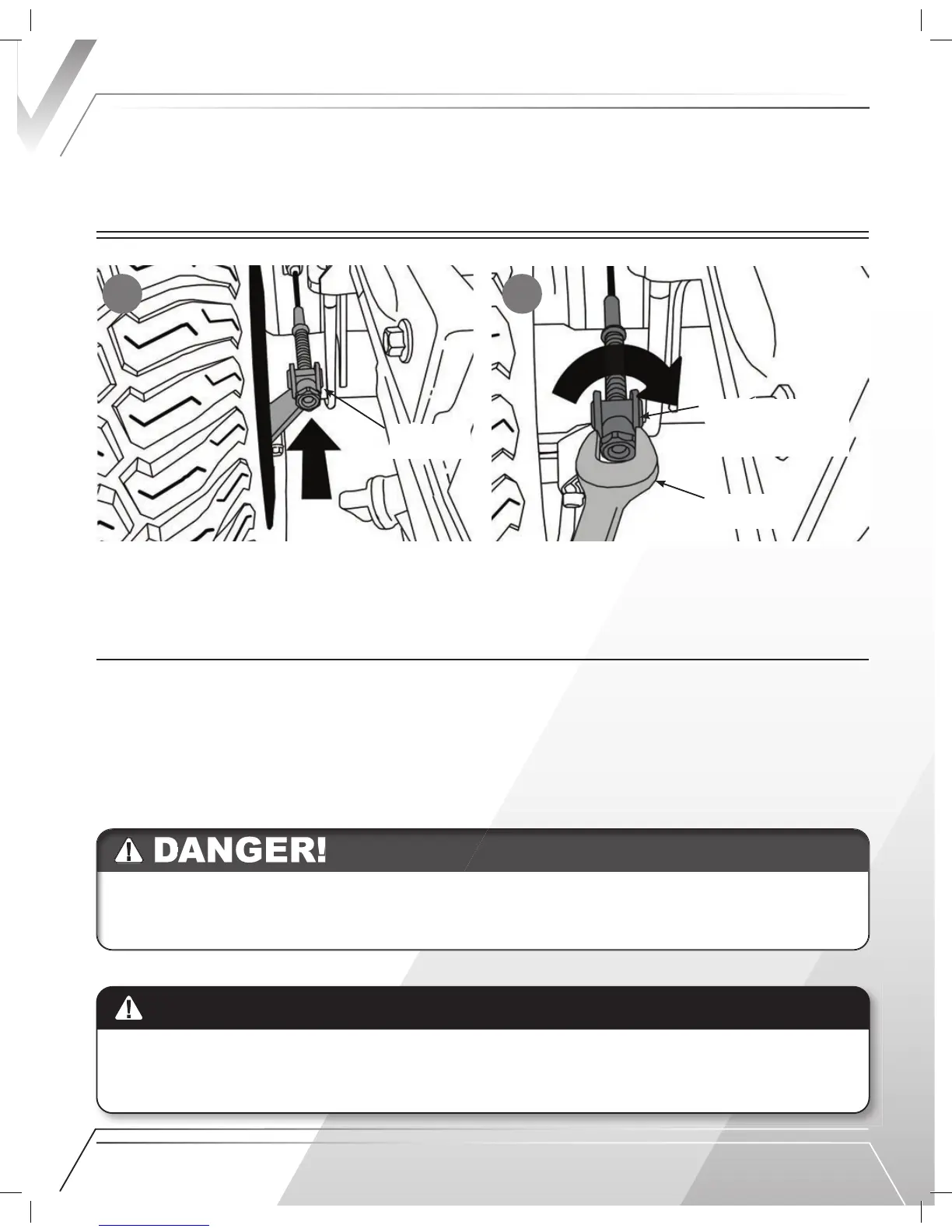

B r a k e
Ad j u s t m e n t
14 m m
Wr e n c h
T u r n ½ t u r n a t a t i m e ,
c l o c k w i s e t o t i g h t e n ,
c o u n t e r c l o c k w i s e t o
l o o s e n
