Raven MPV-7100 User Manual

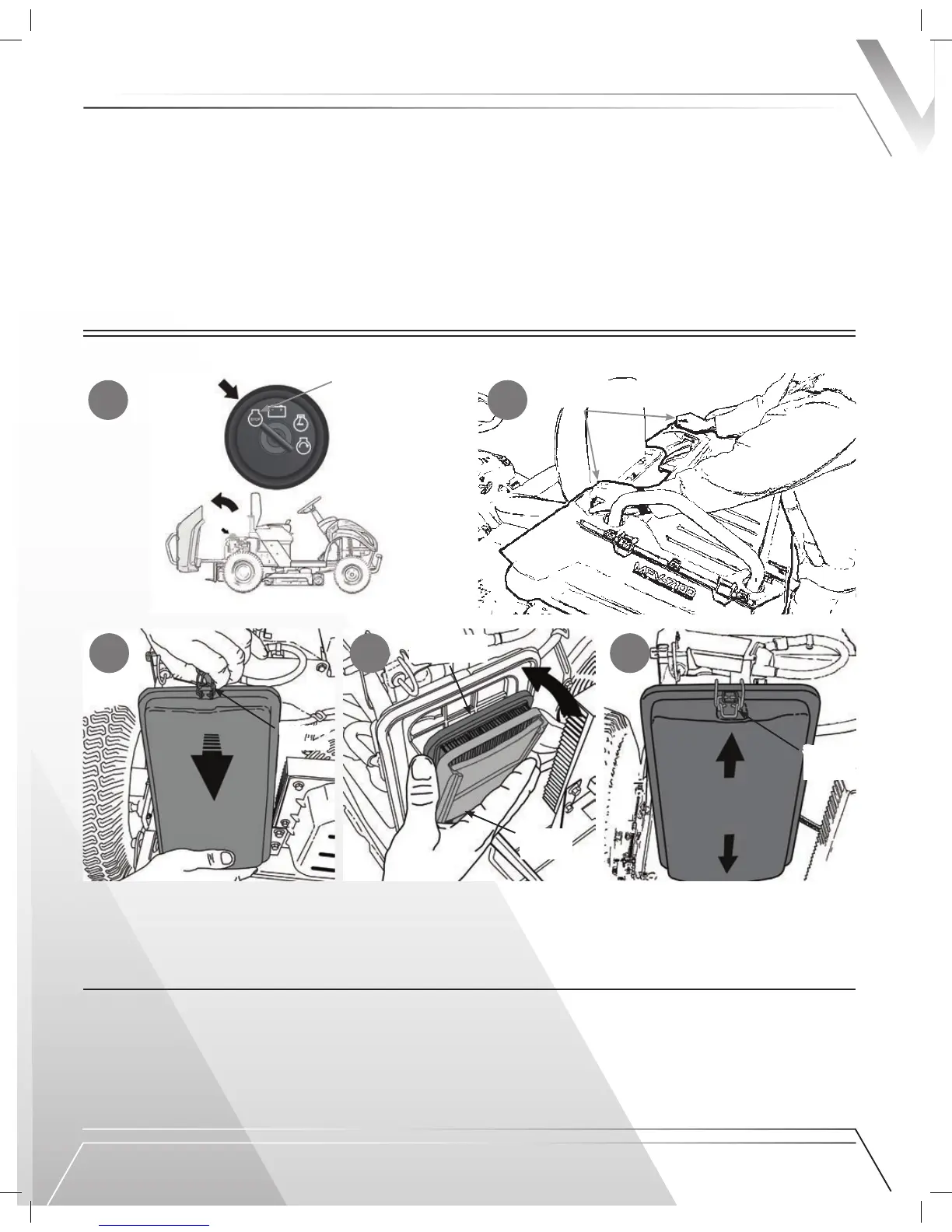

Changing the Air Filter
a. Turn the engine off and allow it to cool.
b. Open the service hatch.
c. Release the latches on the black air lter cover, then remove the metal lter cover.
d. Replace the air lter, positioning the at side toward the engine and ensure the plastic lter cover is on top of the lter.
e. Replace the metal lter cover and secure the latches.
RAVEN MPV-7100/7100S OWNER’S MANUAL
Spark Arrestor
The MPV is tted with a spark arrestor which complies with USDA - Forest service standard S100-1C. The spark arrestor
(tted to the exhaust outlet of the mufer) should be cleaned with a soft wire brush after every 50 hours or every 6 months
of use. Replace with a new spark arrestor after every 100 hours of operation.
Air Filter
The engine will not run correctly when operating with a dirty air lter. Change the air lter more frequently in dusty
environments.
servICe & MaIntenanCe
Fuel Filter
The fuel lter should be replaced every 100 hours or once each season especially when operated in dusty environments. If
the fuel lter becomes clogged, it will hinder fuel ow to the carburetor. The lter is located at the front of the machine, below
the fuel tank and above the steering rack. The fuel lter must be changed when there is very little gas in the fuel tank.
3 8
A
C D E
B
T u r n En g i n e Of f
a n d Al l o w t o C o o l
Re l e a s e
La t c h e s
Se c u r e
La t c h e s
Ai r
F i l t e r
Pu l l Se r v i c e H a t c h
La t c h e s t o Op e n
F l a t Si d e o f
Ai r F i l t e r

Raven MPV-7100 Specifications

General

Brand	Raven
Model	MPV-7100
Category	Offroad Vehicle
Language	English
