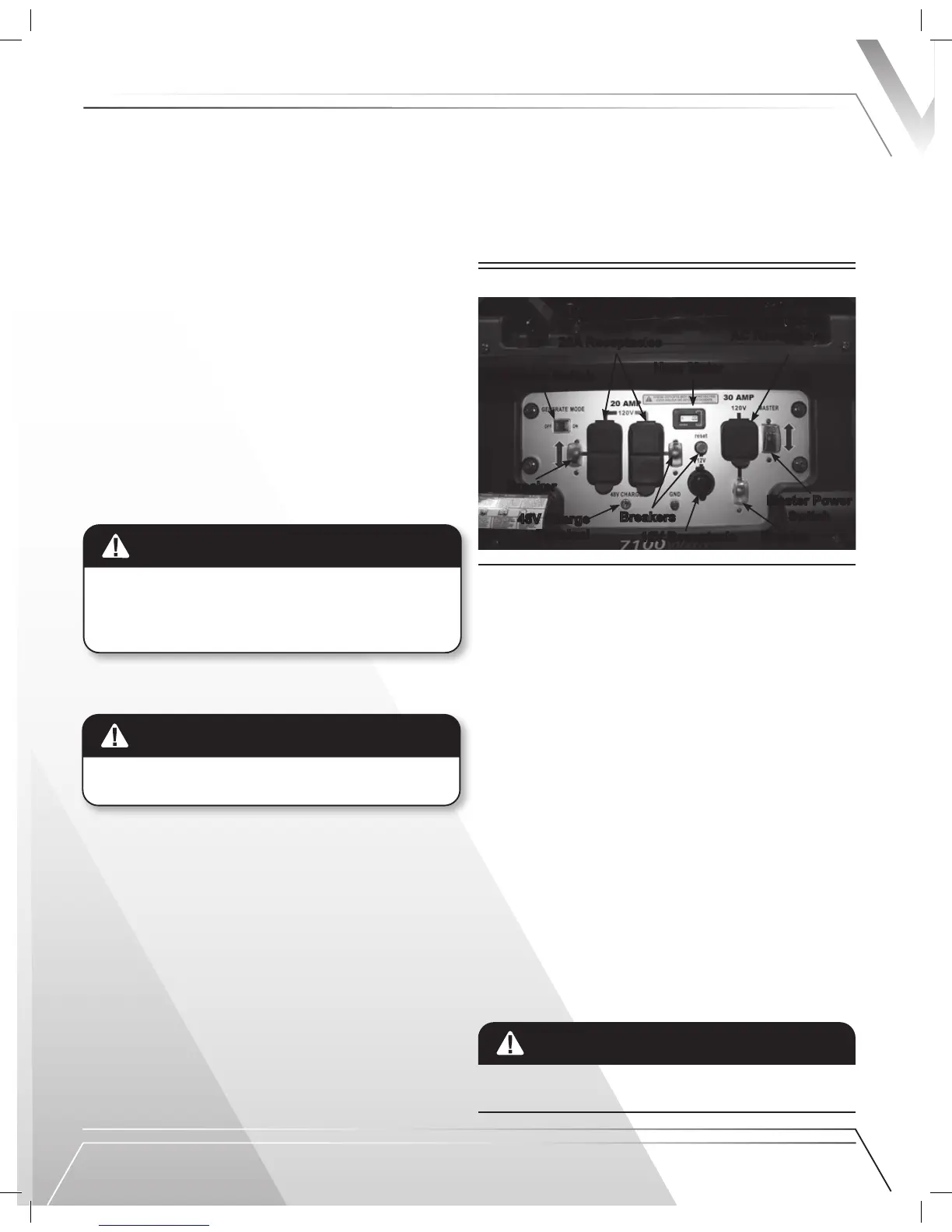

Generator Panel
RAVEN MPV-7100/7100S OWNER’S MANUAL
The Safety Interlock System
The Safety Interlock System is a system of sensors that will
stop your MPV and/or disengage your blades if the operator
leaves the seat or other hazardous situations arise. This
system includes the operator presence switch, the parking
brake pedal and the blade switch.
The Safety Interlock:
• Prevents the engine from starting unless the drive
switch is in Neutral
• Prevents the engine from starting unless the parking
brake is set or the operator is in the seat.
• Automatically shuts off the engine if the operator leaves
the seat without engaging the parking brake.
• The unit will not start in forward or reverse or with the
blades engaged.
Damaged or broken wiring may cause your MPV to
operate incorrectly, run poorly or prevent it from starting.
Periodically check wiring for wear or damage. If service is
needed, please contact DGP immediately.
Generator Controls
The Generator features:
• Five 120 Volt outlets with circuit breakers
• One 12 Volt outlet which can be used as a charging
receptacle
• One 30A twist-lock AC receptacle
• 48V charging terminal
• Hour-meter
• Generator mode switch
The Generator mode switch controls generator operation.
This switch must be turned to “ON” (with the engine running)
for the generator to provide power to devices plugged in to
operatIon
OPERAT I ON
Pre-Use Checklist
To make certain that you receive the best performance and
satisfaction from your new MPV, PLEASE REVIEW THE
FOLLOWING CHECKLIST BEFORE OPERATING:
9 The operator’s manual has been read and understood.
9 All assembly instructions have been completed.
9 There are no remaining loose parts in the package.
9 Fuses are properly installed.
9 Seat and steering wheel are adjusted to a comfortable
setting and secured in the locked position.
9 Mower deck is properly leveled side to side and front to
rear. See page 32.
9 All tires are properly inated. Rear tires 15 psi, front
tires 12 psi
WARNING!
DO NOT OPERATE THE MPV IF THE SAFETY
INTERLOCK SYSTEM APPEARS TO BE
MALFUNCTIONING. NEVER TAMPER WITH SAFETY
INTERLOCKS.
CAUTION!
ALWAYS make sure drive is in neutral before
turning the key.
IMPORTANT
For optimal performance and ride comfort, keep tires
properly inated.
the outlets. The generator can power small tools and various
other devices. See the generate mode section on page 24
for further information on how to determine generator load
capacity.
NOTE: The MPV will not operate in drive mode if the
generator is switched on. See page 45 to
troubleshoot the generator.
18
2 0A Re c e p t a c l e s
4 8 V C h a r g e
T e r m i n a l
Ma s t e r Po w e r
Sw i t c h
B r e a k e r s
B r e a k e r
B r e a k e r
G e n e r a t o r Sw i t c h
3 0A T w i s t -Lo c k
AC Re c e p t a c l e
H o u r Me t e r
12 V Re c e p t a c l e
