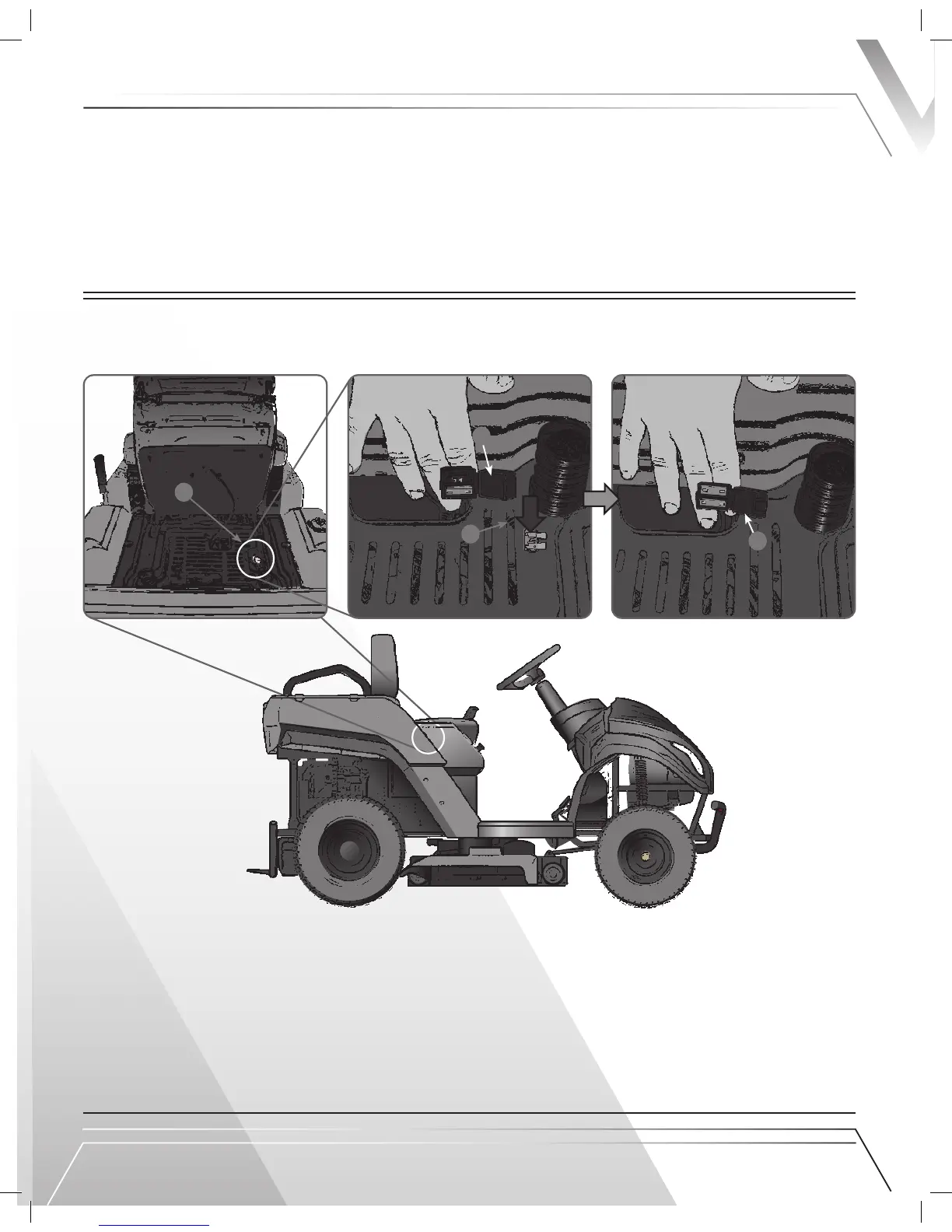

Replacing a Fuse
a. Lift the seat
b. Locate the fuse connections under the black plate.
c. Open the fuse holder cover of the fuse needing replacement.
d. Replace the blown fuse.
e. Close the fuse holder cover.
f. Lower the seat back into place.
RAVEN MPV-7100/7100S OWNER’S MANUAL
servICe & MaIntenanCe
Fuses
The MPV requires one yellow 20 amp fuse for the ignition circuit, and one green 30 amp fuse for the charging circuit. The
fuse connection is located under the operator seat and has a convenient slot for storage of the provided spare fuse. A spare
is provided for both the 20 and 30 A fuses. If both provided fuses are blown during use, these fuses should be replaced with
automotive-type plug-in fuses available at any automotive repair shop.
NOTE: If either fuse is blown, the 12 volt system will not operate correctly. If newly replaced fuses also fail, contact DGP
for diagnosis. See the Troubleshooting section on page 44 for more information.
4 2
B
C
E
D
