Raven RCM Calibration And Operation Manual

CHAPTER 3
10 RCM-Sprayer Ratio Rate (without Boom Control) Calibration and Operation Manual
14. Enter the full width of the boom for the Section 1 value. For example, a boom width of 40 m [130 ft].

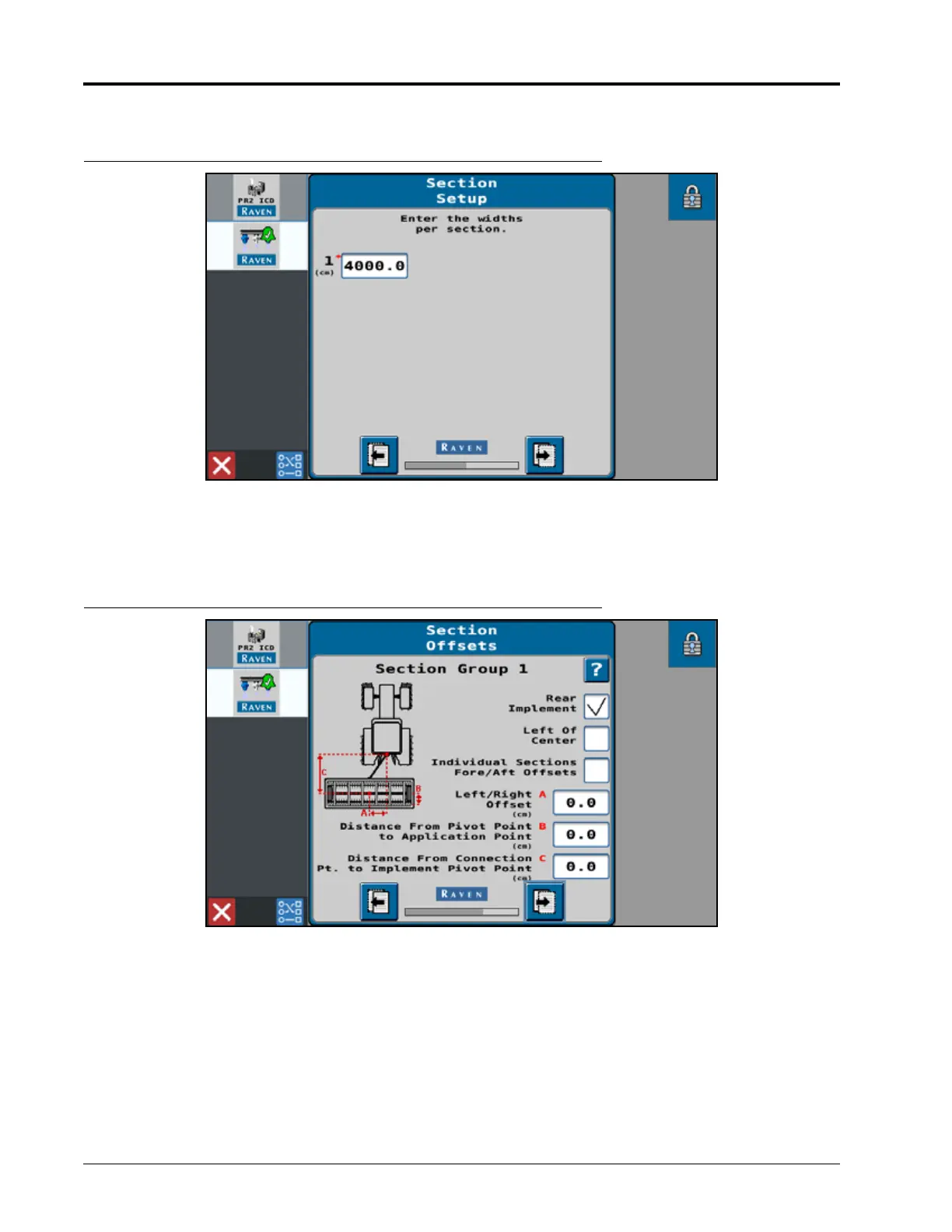

FIGURE 6. Section Width Setup Page
15. Touch the Next Page button.
16. Boom section configurations will not be used in this configuration of the RCM-Sprayer. Touch the Next Page
button to skip the Section Offsets settings page.
FIGURE 7. Section Offsets Page

Raven RCM Specifications

General

Brand	Raven
Model	RCM
Category	Control Unit
Language	English
