Initial Calibration: Create Profile Setup Wizard 11
INITIAL CALIBRATION
MAIN PRODUCT SETUP
17. Use the Boom Pressure drop-down options to select the range of the pressure sensor which is installed at the
spray boom.

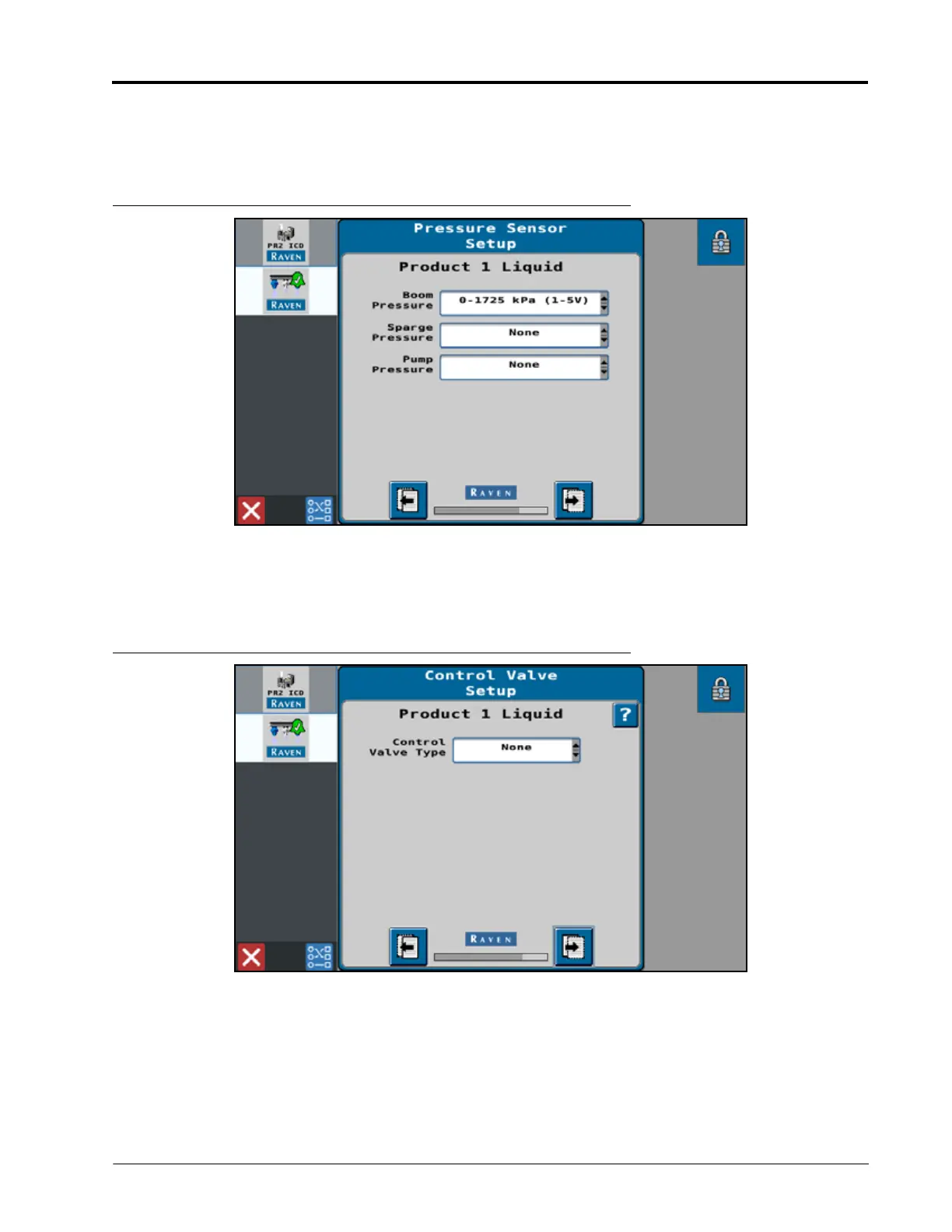

FIGURE 8. Product 1 Pressure Sensor Setup Page
18. When the pressure sensors are configured properly, touch the Next Page button.
19. In this configuration, the RCM-Sprayer will not be used to adjust or stop product application. Set the Control
Valve Type drop-down option to None.
FIGURE 9. Product 1 Control Valve Setup Page
20.Touch the Next Page button.
