Raven RCM Calibration And Operation Manual

Initial Calibration: Create Profile Setup Wizard 15
INITIAL CALIBRATION
BOOM CAPACITY
34.When boom recirculation capabilities are installed on the spray boom, enter the volume contained in the spray
boom sections in the Boom Capacity field.
NOTE: By default, the Boom Capacity is set to 0.5 L [0.13 gal.] per meter of boom. For example, a 40 m boom
has a boom capacity around 20 L of water.

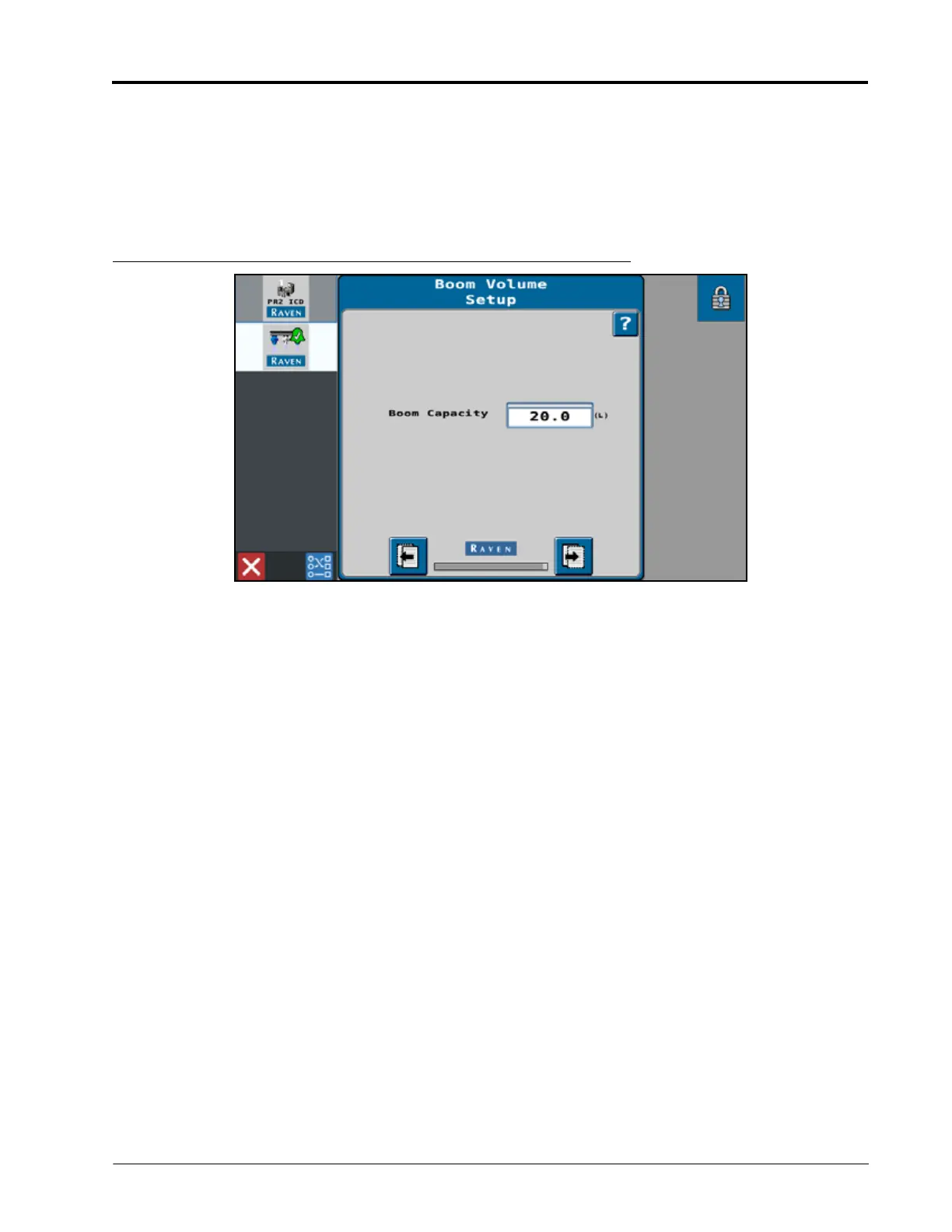

FIGURE 15. Boom Capacity
35.Touch the Next Page button to complete the Profile Setup Wizard.
