14 RCM-Sprayer Ratio Rate (without Boom Control) Calibration and Operation Manual
RATE PRESET SETUP
30.In a Ratio Rate application mode, the RCM-Sprayer will not use product application rates for product 1 or the
main tank. Enter a non-zero value in the Preset 1 field and touch the Next Page button to skip the remaining
settings.

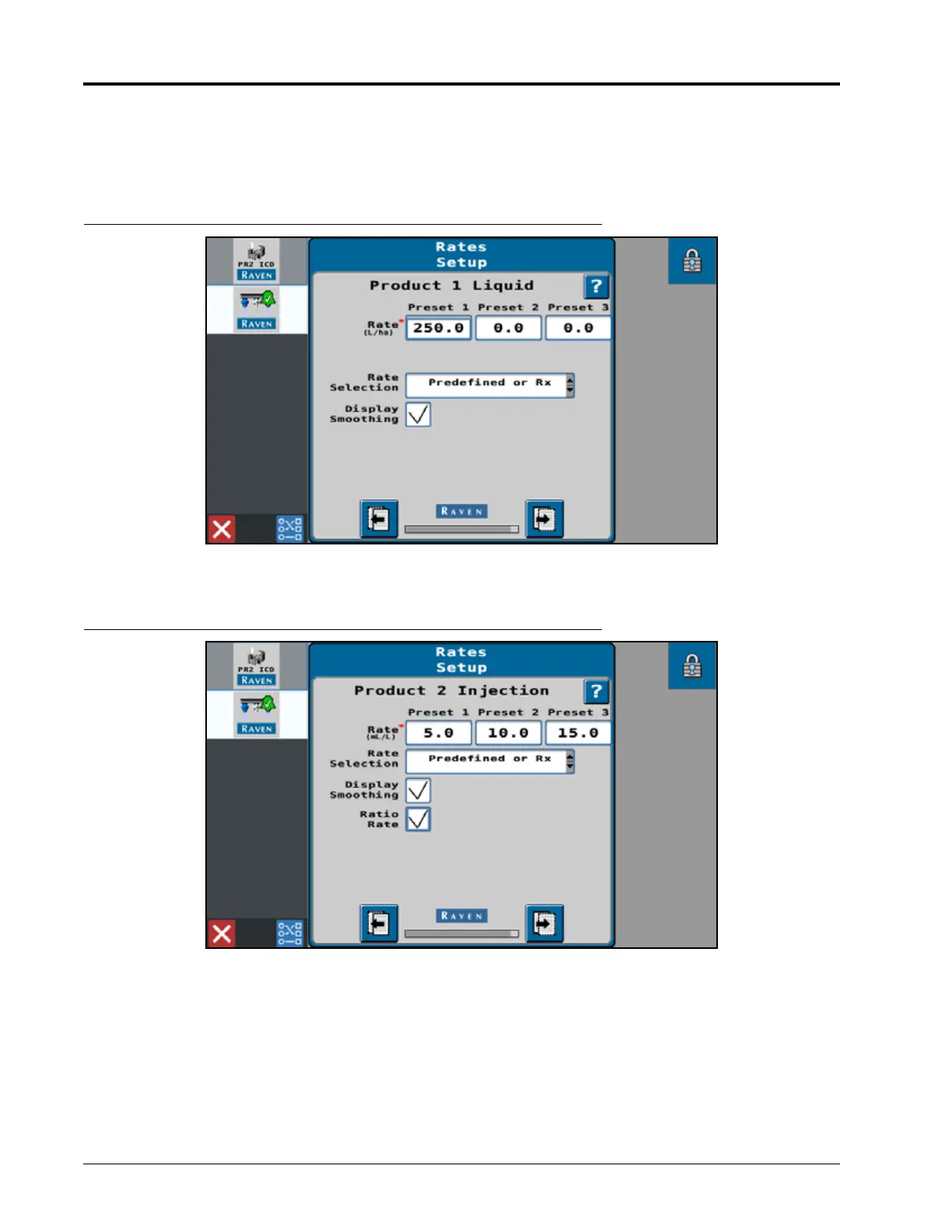

FIGURE 13. Product 1 Rate Presets Page
31. On the Product 2 Injection page, enable the Ratio Rate option at the bottom of the page.
FIGURE 14. Product 2 Rate Presets Page
32.Enter rate presets in the Preset 1, Preset 2, and Preset 3 fields. These values allow the machine operator to
quickly adjust the target rate of the injected chemical during field operations.
NOTE: For the Squall brand chemical, it is recommended to set rate presets in increments of 5 mL/L.
33.Touch the Next Page button.
