016-0171-694 Rev. B 33
SPREADER OPERATION

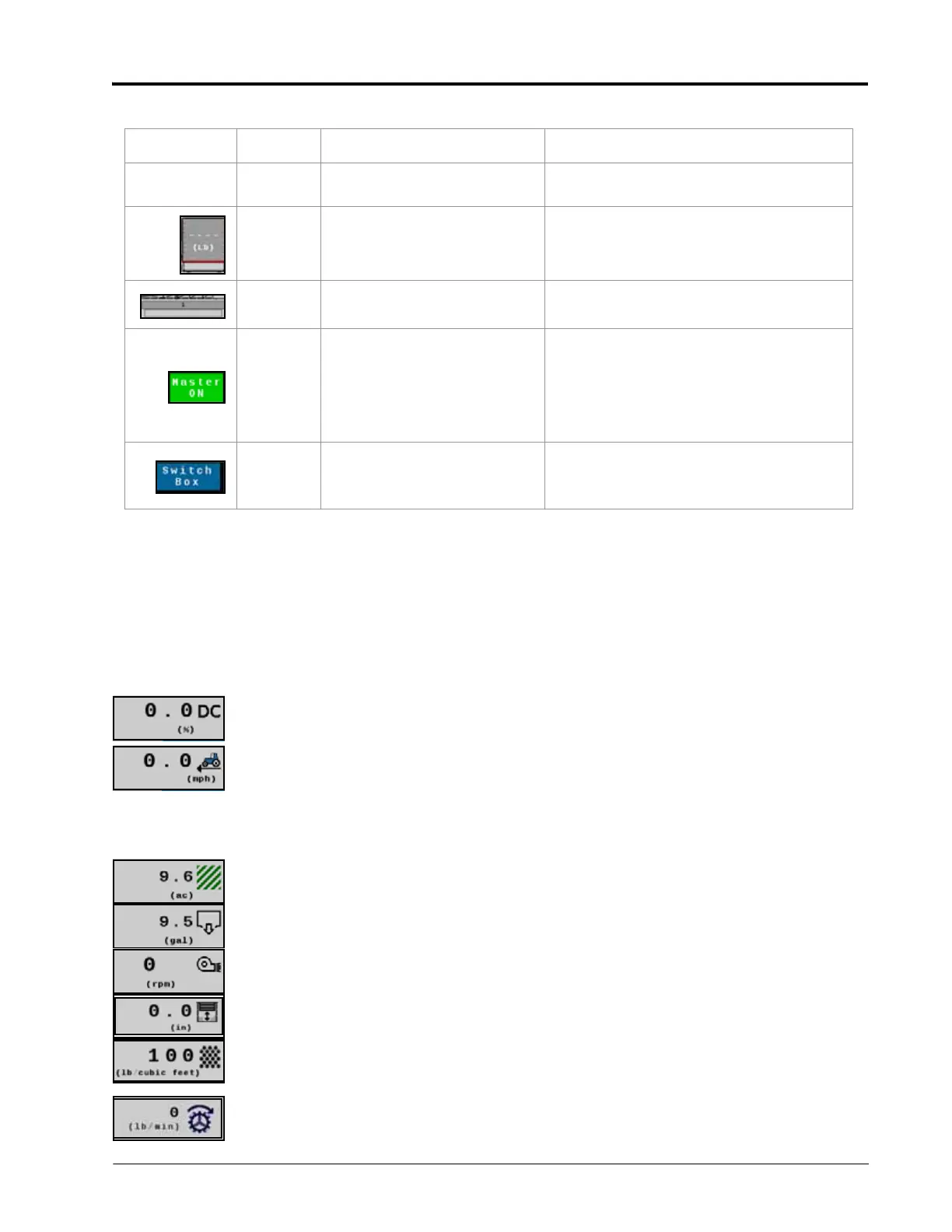

READOUT DESCRIPTIONS
When the RCM is configured for dry manure or litter application, the following readouts are displayed on the main
page by default.
NOTE: The operator may customize readouts shown on the Main page if desired. Refer to the Raven Rate
Control (RCM) Operation Manual (P/N 016-0171-637) for additional assistance with customizing
readouts on the Main page.
PWM Readout. The control duty cycle of the PWM control valve which controls the product
pump.
Speed Readout. The current speed over ground of the machine.
NOTE: Press and hold the speed display to enter a self-test speed. Refer to the Raven Rate Control Module
Operation Manual (P/N 016-0171-637) for additional assistance with the self-test speed feature.
Applied Area. The field area covered during the current field application.
Total Volume Applied. The total product volume applied for the specific product displayed.
RPM 1. The RPM of the PTO shaft.
Gate Height. The current gate height setting.
Product Density. The current density factor of the product.
Dry Rate. Current application rate in pounds [kilograms] per minute as read by an encoder.
-- 8. Readout Area
Refer to Readout Descriptions section
on page 33.
9.
Tank/Bin Level Indicator
and Fill Button
Displays the level or volume of product
remaining in the tank or bin.
10. Implement Sections Displays active and inactive sections.
11. Master Switch Indicator
The Master Switch Indicator shows the
status of the master switch.
•Green - On
•Red - Off
• Orange - Cycle the master switch
12. Section Switchbox Button
Select this button to view the on-
screen switch box.
•
TABLE 1.
Raven RCM Spreader Home Page Overview
Button Description Function/Operation
