Manual No. 016-5033-151 Rev C. EC30597 12/17 3
TERRAGATOR B RAVEN RS1™ ISO GUIDANCE AND STEERING INSTALLATION GUIDE
RS1 UNIT INSTALLATION
For RS1 to operate, the RS1 unit must be mounted on the cab roof. To install the unit:
1. Remove the seven bolts that secure the top of the roof cap to the cab frame. If the roof bracket has already
been installed, remove this while removing the roof cap. The roof bracket will be reinstalled later.

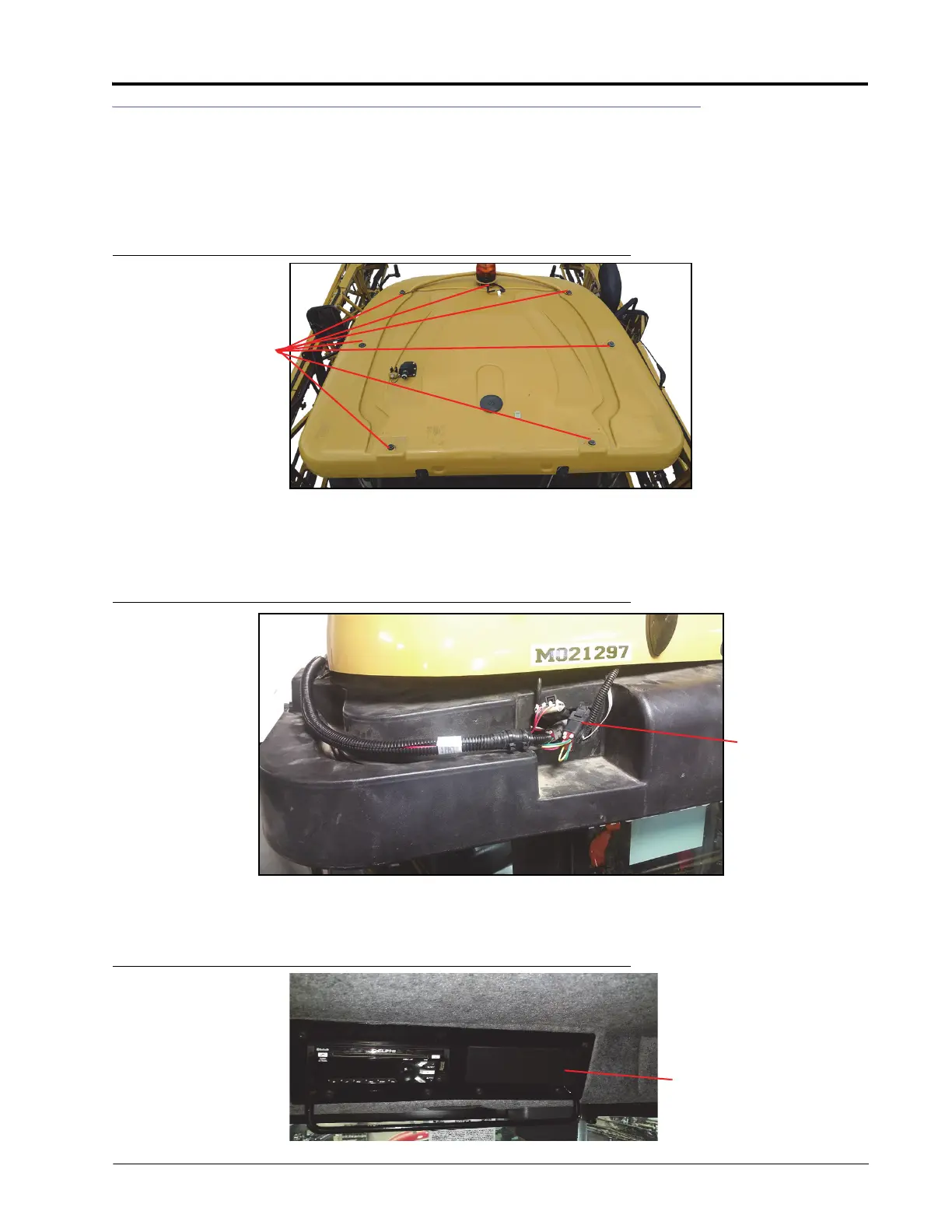

FIGURE 2. TerraGator Cab Cover Bolt Locations
2. Lift the roof cap up and slide it forward until you can access the cab access plug.
3. Remove the access plug located along the right side on the top of the cab.
FIGURE 3. Access Plug
4. On the inside of the cab, remove the radio cover plate.
FIGURE 4. Radio Cover Plate
